CyberPower Standby uninterruptible power supply (UPS) Standby (Offline) 0.95 kVA 510 W 8 AC outlet(s)

950VA / 510W, Standby, Simulated Sine Wave, 120 V, 8 × NEMA 5-15R

Key Features

• Battery Backup
• Surge Protection
• USB Charge Ports
• Widely Spaced Outlets
• PowerPanel® Personal Software

Description

The CyberPower SL950U uninterruptible power supply (UPS) system provides surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers enough battery backup to connected devices during a utility power failure, so you can perform a graceful shutdown to protect against the loss of data and damage to valuable electronics including computers, gaming consoles, and home networking equipment.

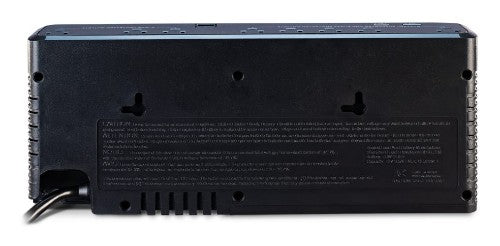

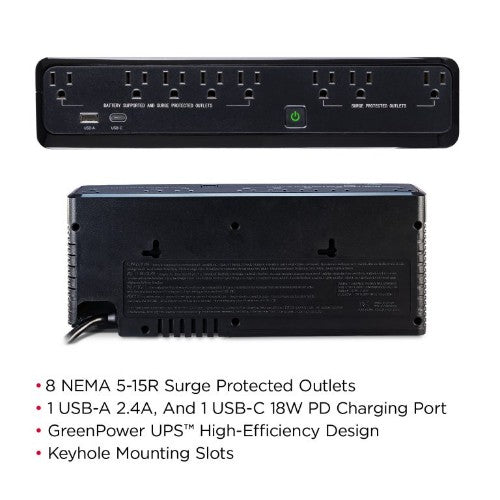

The SL950U has one USB-A and one USB-C charging port with 20W shared total output which gives you a faster charging time and can be used while on battery backup power. The slim profile and full-motion power cord allows for discrete installation and keyhole mounting slots allow for wall-mount applications as well.

With a $125,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the SL950U.

Specifications

Power
Output power capacity	0.95 kVA
Output power	510 W
Input operation voltage (min)	74 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	890 J
Maximum current	15 A
Power factor	1
Output frequency	50/60 Hz
Charging current	2.4 A
Input frequency	57/63 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15P
Power plug	NEMA 5-15P
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
Serial ports quantity	1
USB port type	USB Type A/USB Type-C
Performance
UPS topology	Standby (Offline)
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	8 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Simulated sine
Noise level	57.5 dB
LED indicators	Power, Fault, Battery level
Audible alarm(s)	Yes
Features
UPS topology	Standby (Offline)
Output power capacity	0.95 kVA
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	8 ms
Output power	510 W
Input operation voltage (min)	74 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	890 J
Maximum current	15 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Simulated sine
Power factor	1
Output frequency	50/60 Hz
Noise level	57.5 dB
Audible alarm(s)	Yes
Input frequency	57/63 Hz
Heat dissipation	192.5 BTU/h
Charging current	2.4 A
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	8 h
Typical backup time at half load	8 min
Typical backup time at full load	1 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	6.5 Ah
Charging current	2.4 A
Replacement battery cartridge	RB1270X2F
Battery replacement accessibility	Non-removable
Design
Form factor	Compact
Product colour	Black
Cable length	59.1" (1.5 m)
LED indicators	Power, Fault, Battery level
Housing material	Plastic
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)
Technical details
Output frequency	50/60 Hz
Packaging content
Cables included	USB cable, Serial
Weight & dimensions
Width	12.8" (324 mm)
Depth	5.39" (137 mm)
Height	2.76" (70 mm)
Weight	7.05 lbs (3.2 kg)
Package width	141.2" (3587 mm)
Package depth	58.7" (1492 mm)
Package height	67.5" (1714 mm)
Package weight	18.5 lbs (8.4 kg)
Packaging data
Cables included	USB cable, Serial
Package width	141.2" (3587 mm)
Package depth	58.7" (1492 mm)
Package height	67.5" (1714 mm)
Package weight	18.5 lbs (8.4 kg)
