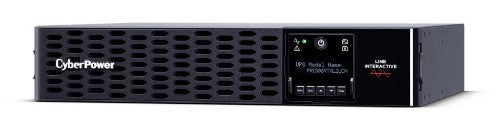

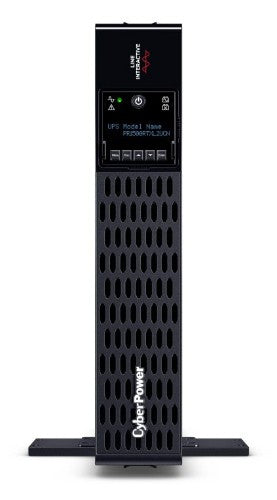

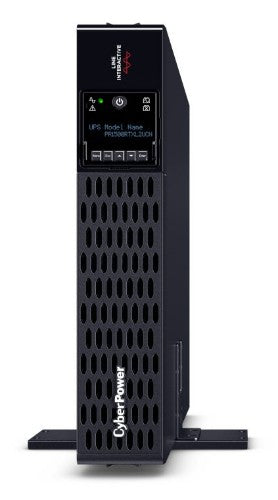

CyberPower Smart App Sinewave uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1500 W 8 AC outlet(s)

1500 VA / 1500 W, Line Interactive, Sine Wave, 100-125 V, 8 × NEMA 5-15R

Key Features

• Battery Backup
• Line-Interactive Topology
• Automatic Voltage Regulation (AVR)
• Sine Wave Output
• Battery Equalization Technology

Description

The PR1500RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR1500RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR1500RTXL2UCN.

Specifications

Power
Output power capacity	1.5 kVA
Output power	1500 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
Maximum current	15 A
Power factor	1
Output frequency	50/60 Hz
Input frequency	47/63 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15P
Power plug	NEMA 5-15P
Serial interface	Yes
Serial interface type	RJ-45
Serial ports quantity	1
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	6 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Noise level	55.5 dB
LED indicators	Power, Fault, Battery level
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	6 ms
Output power	1500 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
Maximum current	15 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power factor	1
Output frequency	50/60 Hz
Noise level	55.5 dB
Audible alarm(s)	Yes
Input frequency	47/63 Hz
Heat dissipation	96.7 BTU/h
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	3 h
Typical backup time at half load	17.9 min
Typical backup time at full load	6.5 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Replacement battery cartridge	RB1290X4J
Battery replacement accessibility	End-user
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Cable length	118.1" (3 m)
LED indicators	Power, Fault, Battery level
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Packaging content
Cables included	USB cable, Serial
Weight & dimensions
Width	17.1" (434 mm)
Depth	19.7" (500 mm)
Height	3.39" (86 mm)
Weight	67.7 lbs (30.7 kg)
Package width	220" (5588 mm)
Package depth	105" (2667 mm)
Package height	241" (6121 mm)
Package weight	82 lbs (37.2 kg)
Packaging data
Cables included	USB cable, Serial
Package width	220" (5588 mm)
Package depth	105" (2667 mm)
Package height	241" (6121 mm)
Package weight	82 lbs (37.2 kg)
