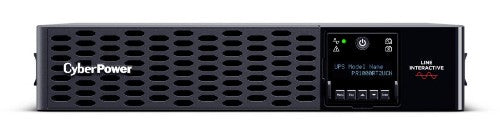

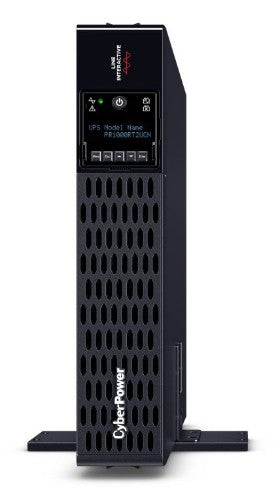

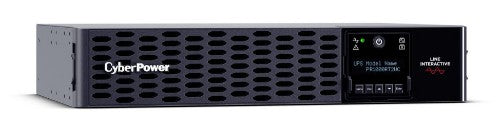

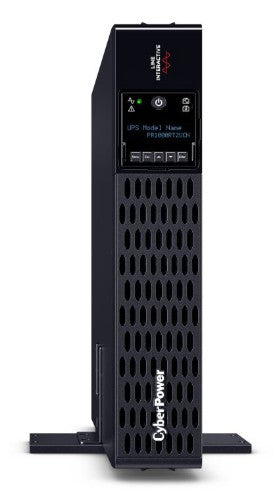

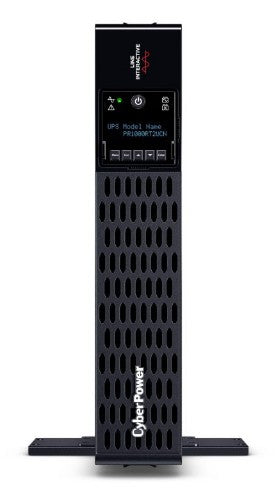

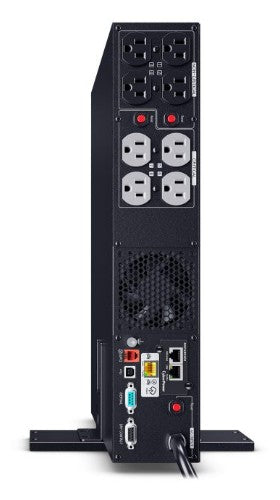

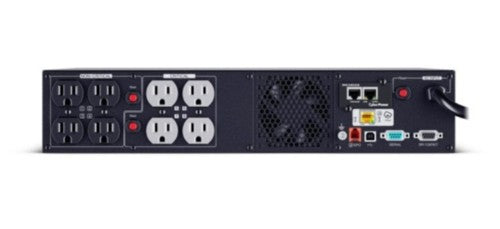

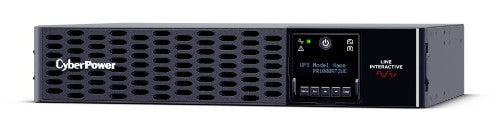

CyberPower Smart App Sinewave uninterruptible power supply (UPS) Line-Interactive 1 kVA 1000 W 8 AC outlet(s)

1000 VA / 1000 W, Line Interactive, Sine Wave, 100-125 V, 8 × NEMA 5-15R

Key Features

• Battery Backup
• Line-Interactive Topology
• Automatic Voltage Regulation (AVR)
• Sine Wave Output
• Battery Equalization Technology

Description

The PR1000RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR1000RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model includes pre-installed remote management card RMCARD205, which provides remote management and configuration of the UPS via a standard web browser or network management system, and built-in cloud monitoring.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR1000RT2UCN.

Specifications

Power
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
Power factor	1
Output frequency	60 Hz
Input frequency	47/63 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15P
Power plug	NEMA 5-15P
Serial interface	Yes
Serial interface type	RJ-45
Serial ports quantity	1
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	6 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
LED indicators	Power, Fault, Battery level
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	6 ms
Output power	1000 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power factor	1
Output frequency	60 Hz
Audible alarm(s)	Yes
Input frequency	47/63 Hz
Heat dissipation	48.6 BTU/h
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	3 h
Typical backup time at half load	10.5 min
Typical backup time at full load	7 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	7 Ah
Replacement battery cartridge	RB1270X4H
Battery replacement accessibility	End-user
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Cable length	118.1" (3 m)
LED indicators	Power, Fault, Battery level
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	60 Hz
Packaging content
Cables included	USB cable, Serial
Weight & dimensions
Width	17.1" (434 mm)
Depth	16.2" (411 mm)
Height	3.39" (86 mm)
Weight	50 lbs (22.7 kg)
Package width	210" (5334 mm)
Package depth	220" (5588 mm)
Package height	105" (2667 mm)
Package weight	58 lbs (26.3 kg)
Packaging data
Cables included	USB cable, Serial
Package width	210" (5334 mm)
Package depth	220" (5588 mm)
Package height	105" (2667 mm)
Package weight	58 lbs (26.3 kg)
