2200 VA / 2200 W, Sine Wave, Line Interactive, Rack / Tower, 8 NEMA 5-20R Outlets, 2U, Black

Key Features

• Battery Backup
• Line-Interactive Topology
• Automatic Voltage Regulation (AVR)
• Sine Wave Output
• Battery Equalization Technology

Description

Product Overview

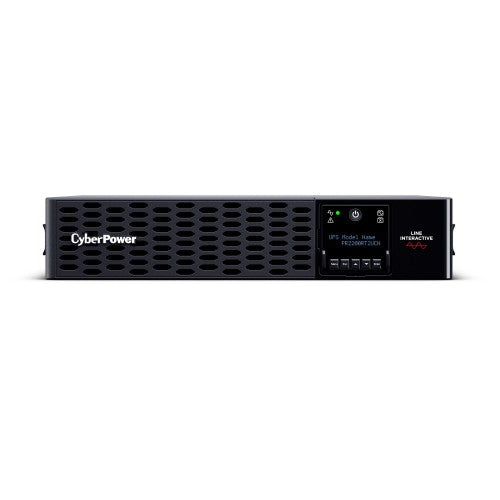

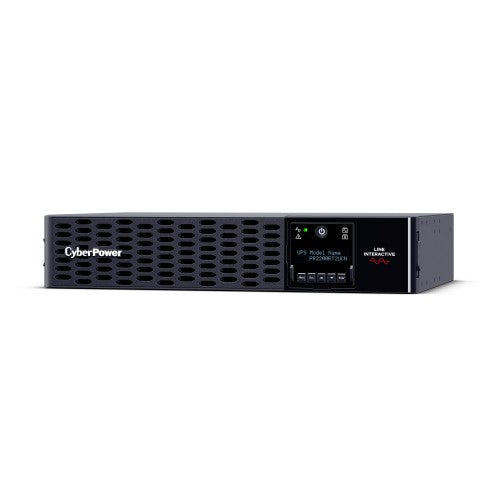

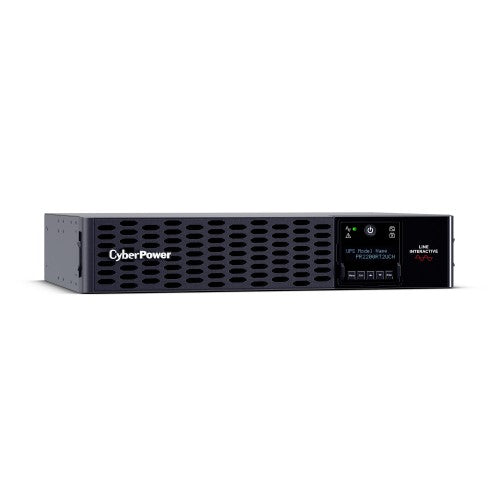

The PR2200RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR2200RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system and built-in cloud monitoring.

Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Line-Interactive Topology
Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)
AVR increases or decreases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

Sine Wave Output
The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

Rotatable Multifunction LCD Panel
Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

RMCARD205 Factory Installed
A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors, and controls CyberPower UPS systems via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

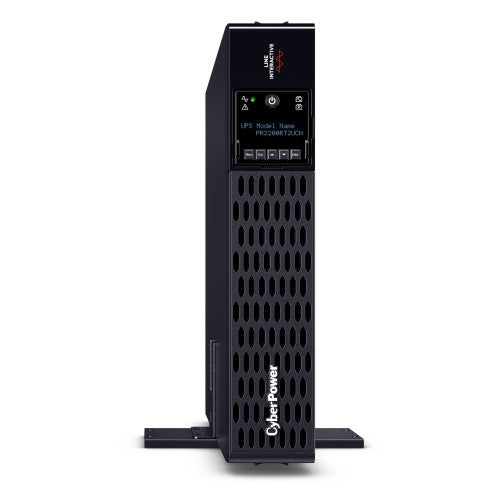

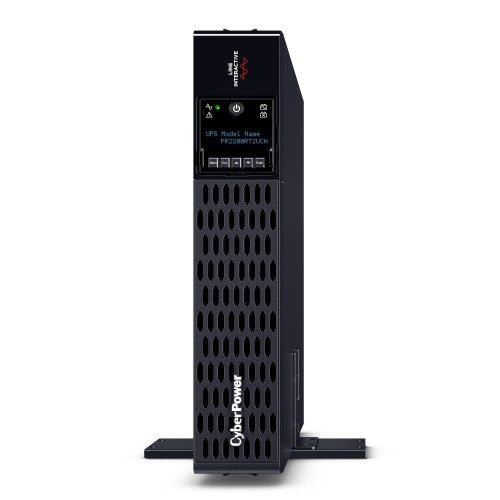

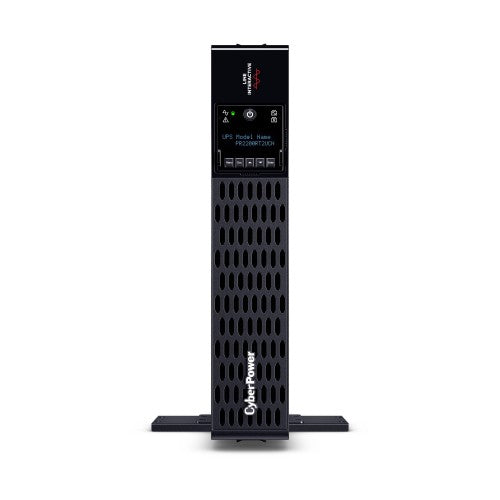

Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.

PowerPanel® Business Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.

ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Specifications

Power
Output power capacity	2.2 kVA
Output power	2200 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (min)	100 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
Emergency Power Off (EPO)	Yes
Output voltage regulation	±5%
Output power factor	1
Output frequency	50/60 Hz
Ports & interfaces
Cable length	118.1" (3 m)

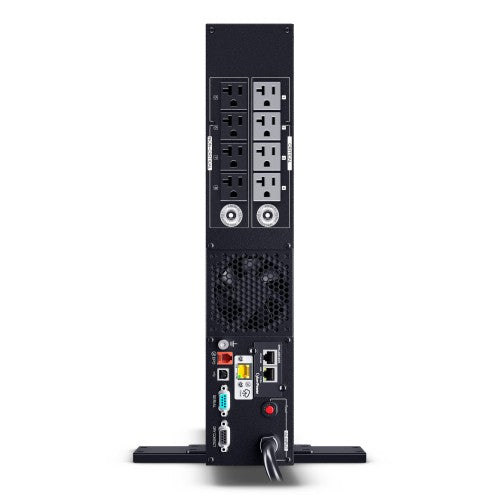

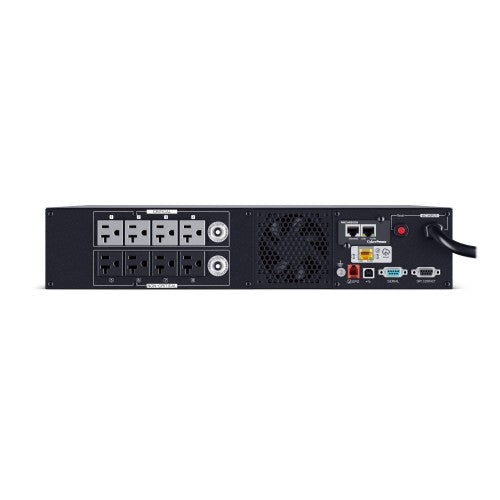

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-20R
Power plug	NEMA L5-30P
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Response time	6 ms
Surge protection	Yes
Waveform	Sine
Power protection features	Surge protection, Overload
Automatic Voltage Regulation (AVR)	Yes
Noise level	52.5 dB
LED indicators	Power, Fault
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Response time	6 ms
Output power	2200 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (min)	100 V
Output operation voltage (max)	120 V
Surge energy rating	2430 J
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Power protection features	Surge protection, Overload
Output voltage regulation	±5%
Output power factor	1
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Noise level	52.5 dB
Audible alarm(s)	Yes
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	3 h
Typical backup time at half load	11.8 min
Typical backup time at full load	3.2 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Certification	UL 1778 VCCI FCC Class A CSA C22.2 No 107.3
Cable length	118.1" (3 m)
LED indicators	Power, Fault
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS, UL, VCCI, CSA
Certificates
Certification	UL 1778 VCCI FCC Class A CSA C22.2 No 107.3
Compliance certificates	RoHS, UL, VCCI, CSA
Packaging content
Cables included	USB cable, Input power cable
Weight & dimensions
Width	17.1" (434 mm)
Depth	16.2" (411 mm)
Height	3.39" (86 mm)
Weight	59.7 lbs (27.1 kg)
Package width	21" (533.4 mm)
Package depth	22.5" (571.5 mm)
Package height	10.5" (266.7 mm)
Package weight	75.2 lbs (34.1 kg)
Packaging data
Cables included	USB cable, Input power cable
Package width	21" (533.4 mm)
Package depth	22.5" (571.5 mm)
Package height	10.5" (266.7 mm)
Package weight	75.2 lbs (34.1 kg)
