2000 VA / 2000 W, Sine Wave, Line Interactive, Rack / Tower, 8 NEMA 5-20R Outlets, 2U, Black
Key Features
- Battery Backup
- Line-Interactive Topology
- Automatic Voltage Regulation (AVR)
- Sine Wave Output
- Battery Equalization Technology
Description

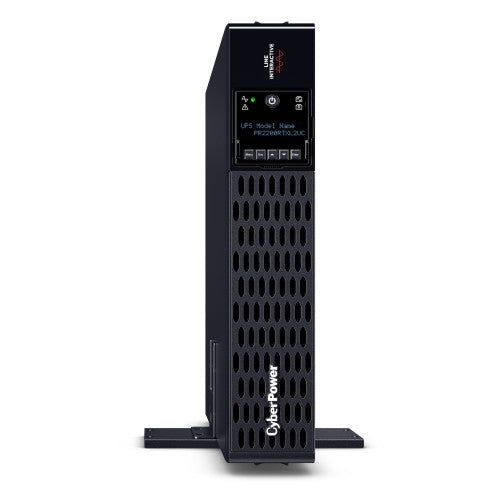

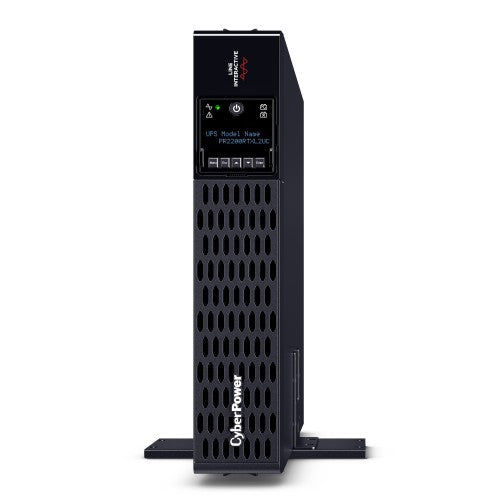

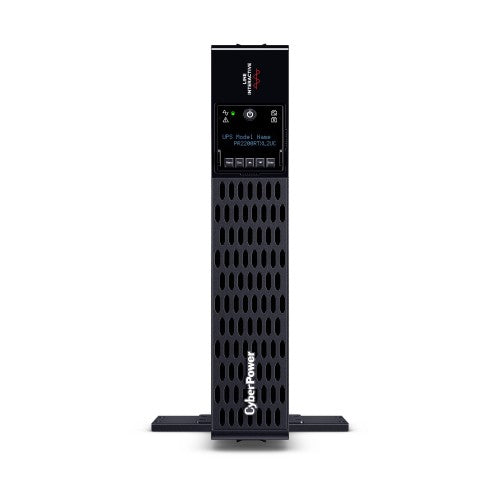

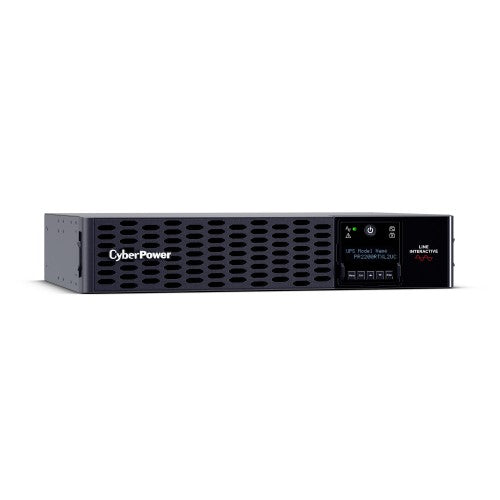

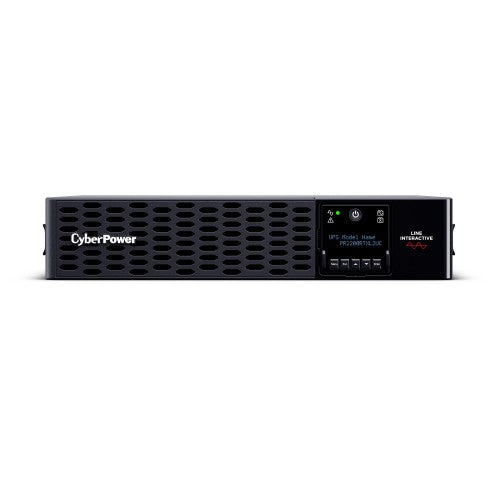

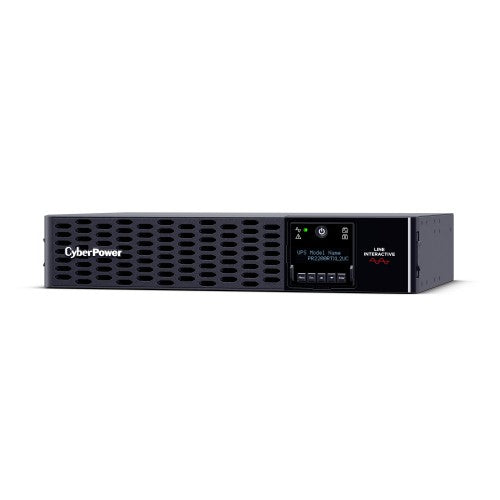

Product OverviewThe PR2000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR2000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and optional RMCARD205 network management card for remote management and control via a standard web browser or network management system. Built-in Cloud Monitoring.
Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Line-Interactive TopologyExists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Sine Wave OutputProvides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
Battery Equalization TechnologyBattery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
Fast Charge TechnologyAllows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
Rotatable Multifunction LCD PanelTilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
Optional RMCARD205A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors, and controls CyberPower UPS systems via a standard web browser, command line interface (CLI), or network management system (NMS) connection. Built-in Cloud Monitoring
Rack/Tower VersatilityAllows for horizontal rack or vertical tower installation.
PowerPanel® Business Edition SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
ENERGY STARThis model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Specifications
| Power |
|---|
| Output power capacity |
2 kVA |
| Output power |
2000 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
149 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Surge energy rating |
2430 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage regulation |
± 5% |
| Output power factor |
1 |
| Output frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5-20R |
| Power plug |
NEMA 5-20P |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm, Fault |
| Response time |
6 ms |
| Surge protection |
Yes |
| Waveform |
Sine |
| Power protection features |
Surge protection, Overload |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
57.5 dB |
| LED indicators |
Power, Fault |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
2 kVA |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm, Fault |
| Response time |
6 ms |
| Output power |
2000 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
149 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Surge energy rating |
2430 J |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Power protection features |
Surge protection, Overload |
| Output voltage regulation |
± 5% |
| Output power factor |
1 |
| Output frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
57.5 dB |
| Audible alarm(s) |
Yes |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
4 |
| Battery recharge time |
3 h |
| Typical backup time at half load |
12.2 min |
| Typical backup time at full load |
4.3 min |
| Hot-swap battery |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Certification |
UL1778; CSA C22.2 No 107.3; FCC Class B; VCCI |
| Cable length |
118.1" (3 m) |
| LED indicators |
Power, Fault |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Compliance certificates |
RoHS, CSA, VCCI |
| Certificates |
|---|
| Certification |
UL1778; CSA C22.2 No 107.3; FCC Class B; VCCI |
| Compliance certificates |
RoHS, CSA, VCCI |
| Packaging content |
|---|
| Cables included |
USB cable |
| Weight & dimensions |
|---|
| Width |
17.1" (434 mm) |
| Depth |
19.7" (500 mm) |
| Height |
3.39" (86 mm) |
| Weight |
74.5 lbs (33.8 kg) |
| Package width |
22" (558.8 mm) |
| Package depth |
24.2" (616 mm) |
| Package height |
10.7" (273.1 mm) |
| Package weight |
88.6 lbs (40.2 kg) |
| Packaging data |
|---|
| Cables included |
USB cable |
| Package width |
22" (558.8 mm) |
| Package depth |
24.2" (616 mm) |
| Package height |
10.7" (273.1 mm) |
| Package weight |
88.6 lbs (40.2 kg) |
