1000 VA / 1000 W, Line Interactive, Sine Wave, Rack / Tower, 8 NEMA 5-15R outlets, 2U

Key Features

• Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
• Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
• Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Description

Product Overview

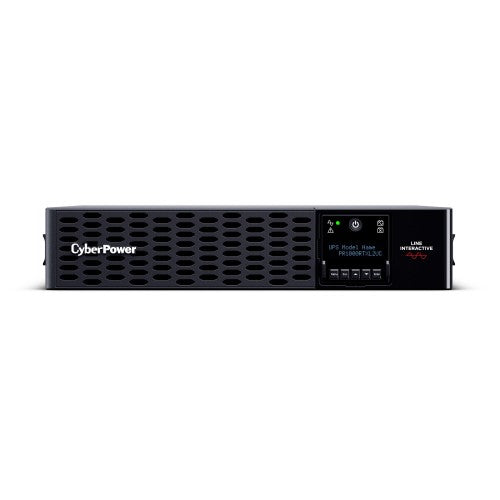

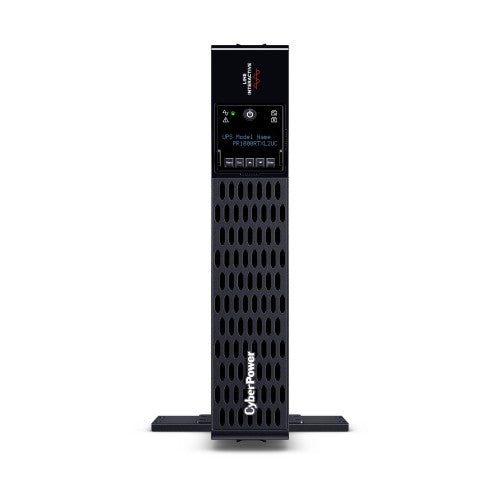

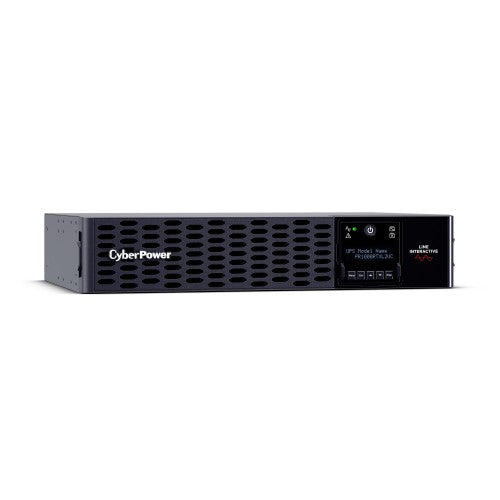

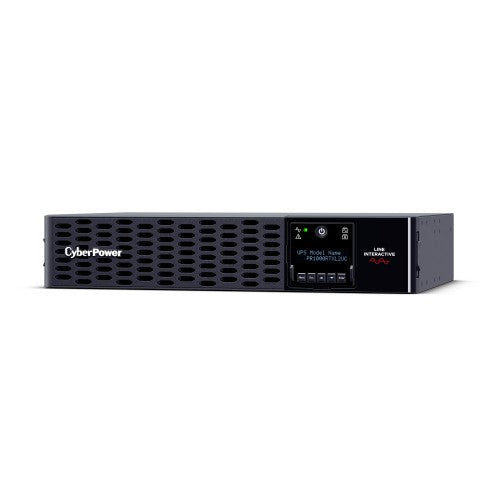

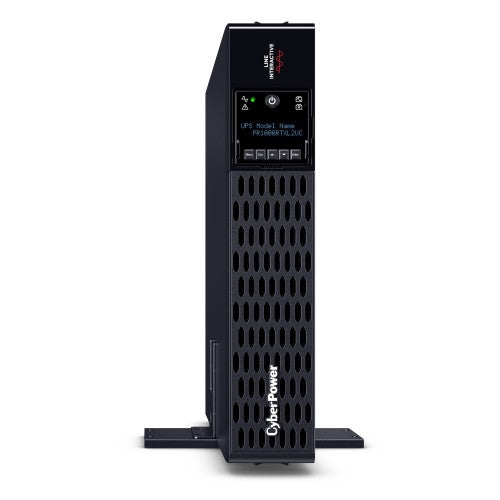

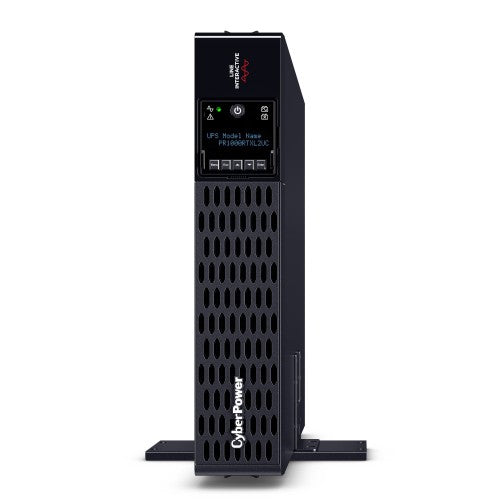

The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

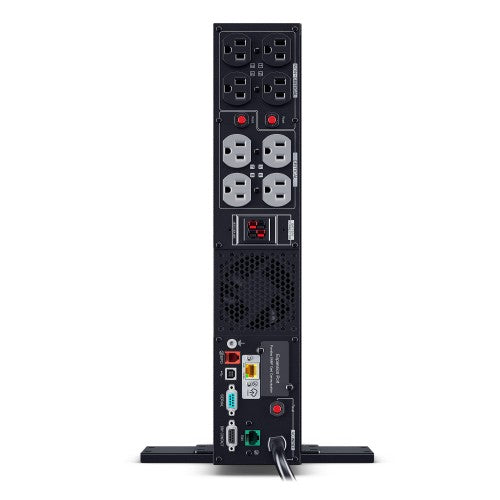

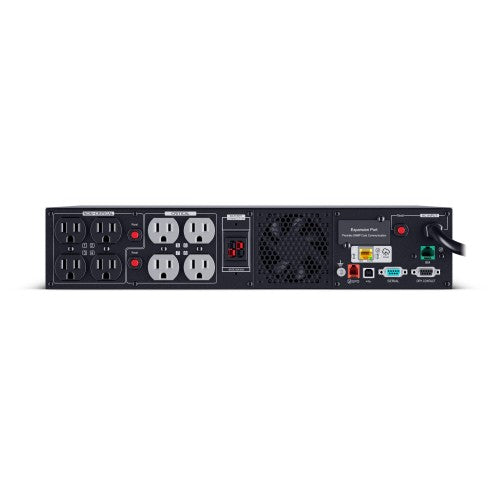

The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.

Specifications

Power
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	2430 J
Emergency Power Off (EPO)	Yes
Output voltage regulation	±5%
Output power factor	1
Output frequency	50/60 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Ethernet LAN (RJ-45) ports	1
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Response time	6 ms
Surge protection	Yes
Waveform	Sine
Power protection features	Surge protection, Overload
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Power, Fault
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Response time	6 ms
Output power	1000 W
Input operation voltage (min)	75 V
Input operation voltage (max)	149 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	2430 J
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Power protection features	Surge protection, Overload
Output voltage regulation	±5%
Output power factor	1
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	4
Battery recharge time	3 h
Typical backup time at half load	20 min
Typical backup time at full load	8 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	7 Ah
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Certification	UL1778; CSA C22.2 No 107.3; FCC Class B; VCCI; DOE Compliant
Cable length	118.1" (3 m)
LED indicators	Power, Fault
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Certification	UL1778; CSA C22.2 No 107.3; FCC Class B; VCCI; DOE Compliant
Compliance certificates	RoHS
Packaging content
Cables included	USB cable, Serial
Weight & dimensions
Width	17.1" (434 mm)
Depth	16.2" (411 mm)
Height	3.39" (86 mm)
Weight	55.3 lbs (25.1 kg)
Package width	20.7" (527 mm)
Package depth	22" (558.8 mm)
Package height	10.7" (273.1 mm)
Package weight	61.3 lbs (27.8 kg)
Packaging data
Cables included	USB cable, Serial
Package width	20.7" (527 mm)
Package depth	22" (558.8 mm)
Package height	10.7" (273.1 mm)
Package weight	61.3 lbs (27.8 kg)
