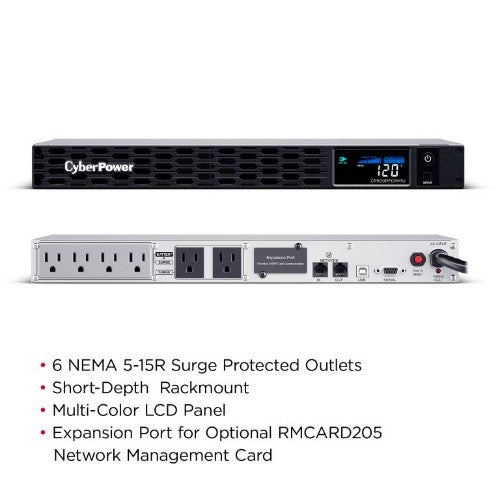

CyberPower PFC Sinewave uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 6 AC outlet(s)

500VA / 300W, Line Interactive, Sine Wave, 120V, 6 × NEMA 5-15R

Key Features

• Battery Backup
• Surge Protection
• Sine Wave Output
• EMI/RFI Noise Filter
• Multifunction LCD Panel with Color Display

Description

The CP500PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

The CP500PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 9.04 inches in depth, the CP500PFCRM1U fits comfortably in short-depth rack installations where space is at a premium.

The CP500PFCRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee.

Specifications

Power
Output power capacity	0.5 kVA
Output power	300 W
Input operation voltage (min)	88 V
Input operation voltage (max)	144 V
Output operation voltage (max)	120 V
Surge energy rating	1150 J
Maximum current	15 A
Power factor	0.6
Output frequency	60 Hz
Input frequency	57/63 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5-15P
Power plug	NEMA 5-15P
Serial interface	Yes
Serial interface type	RJ-45
Serial ports quantity	1
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	8 ms
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
LED indicators	Power, Fault
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	0.5 kVA
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Response time	8 ms
Output power	300 W
Input operation voltage (min)	88 V
Input operation voltage (max)	144 V
Output operation voltage (max)	120 V
Surge energy rating	1150 J
Maximum current	15 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Waveform	Sine
Power factor	0.6
Output frequency	60 Hz
Audible alarm(s)	Yes
Input frequency	57/63 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	2
Battery recharge time	8 h
Typical backup time at half load	10.5 min
Typical backup time at full load	2 min
Hot-swap battery	Yes
Battery voltage	6 V
Battery capacity	7 Ah
Replacement battery cartridge	RB0670X2
Battery replacement accessibility	End-user
Design
Form factor	Rackmount
Rack capacity	1U
Product colour	Black
Cable length	118.1" (3 m)
LED indicators	Power, Fault
Housing material	Metal
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Technical details
Output frequency	60 Hz
Packaging content
Cables included	USB cable
Weight & dimensions
Width	17" (432 mm)
Depth	9.06" (230 mm)
Height	1.73" (44 mm)
Weight	18 lbs (8.15 kg)
Package width	208.7" (5301 mm)
Package depth	110.2" (2799 mm)
Package height	61" (1549 mm)
Package weight	19.6 lbs (8.87 kg)
Packaging data
Cables included	USB cable
Package width	208.7" (5301 mm)
Package depth	110.2" (2799 mm)
Package height	61" (1549 mm)
Package weight	19.6 lbs (8.87 kg)
