100–120 VAC, 20A (derated to 16A), 10 NEMA 5-20R outlets, dual NEMA L5-20P inputs, 1U rackmount, multifunction LCD

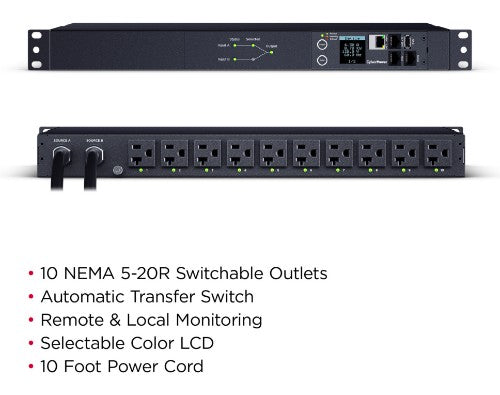

Key Features

• Automatic Transfer Switch
• Switchable Outlets
• Remote and Local Monitoring
• Selectable Color LCD
• Automatic Event Notifications

Description

Product Overview
Ensure continued operation of critical devices with the CyberPower PDU44002 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

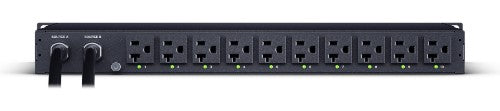

The PDU44002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P power cords (L5-20P to non-locking 5-20P adapters included) are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications.

Automatic Transfer Switch
Dual power cords (A and B) provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources* to ensure continuous access. Users select the preferred source as the primary input.

Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

Remote and Local Monitoring
Enables offsite and onsite tracking of PDU vitals.

Selectable Color LCD
Provides real-time meter status for current (amperes), input and output voltages, power consumption (kilowatts), and hardware/firmware versions. User selectable LCD background color allows for easy classification of PDU based on application. The LCD turns red when there is an alert.

Automatic Event Notifications
Reports immediate updates about power events via email, SMS text, or SNMP traps.

Daisy-Chain Capability
Manages up to four PDUs with a single IP address.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Specifications

Design
PDU types	Switched, Monitored
On/off switch	Yes
Type	Single-phase
Display	LCD
Product colour	Black
Certification	UL62368 via cTUVus FCC Class A ICES-003: Issue 7
Rack capacity	1U
Housing material	Metal
Ports & interfaces
Power plug	NEMA L5-20P
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5-20R
USB ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Features
LED indicators	Status, Selected, TX / RX, Link
Cable length	118.1" (3 m)
Certification	UL62368 via cTUVus FCC Class A ICES-003: Issue 7
Management features
Supported network protocols	IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Monitoring	Current, Voltage, Power
Ergonomics
Display	LCD
LED indicators	Status, Selected, TX / RX, Link
Cable length	118.1" (3 m)
Power
Nominal input voltage	100-120 VAC
Maximum current	20 A
Nominal output voltage	100-120 VAC
Maximum input current per phase	20 A
AC input frequency	50-60 Hz
Certificates
Certification	UL62368 via cTUVus FCC Class A ICES-003: Issue 7
Compliance certificates	RoHS

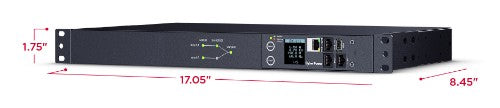

Weight & dimensions
Weight	11.3 lbs (5.13 kg)
Width	17" (433 mm)
Depth	8.46" (215 mm)
Height	1.73" (44 mm)
Package width	21.6" (549.9 mm)
Package depth	15.7" (398 mm)
Package height	4.9" (124.5 mm)
Package weight	15.5 lbs (7.03 kg)
Packaging data
Package width	21.6" (549.9 mm)
Package depth	15.7" (398 mm)
Package height	4.9" (124.5 mm)
Package weight	15.5 lbs (7.03 kg)
Technical details
Compliance certificates	RoHS
