Switched PDU, 0U rackmount, 16 NEMA 5-15R outlets, 100–120 VAC, 15A (derated to 12A), SNMP/HTTP remote monitoring, Black

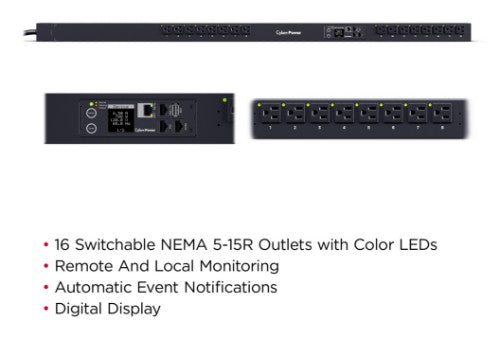

Key Features

• Switchable Outlets
• CyberPower Management Console
• Remote and Local Monitoring
• Automatic Event Notifications
• Upgradeable Firmware

Description

Product Overview

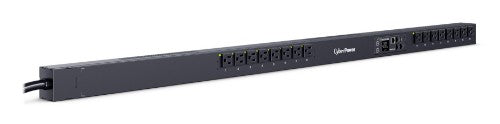

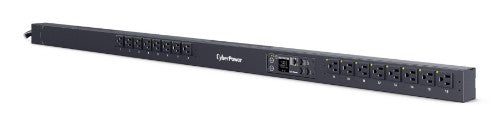

The CyberPower PDU41116, a 16-outlet, 0U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 16 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls. Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

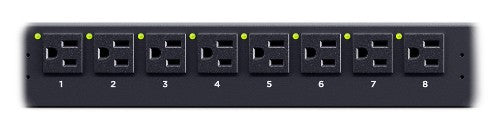

Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console
Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.

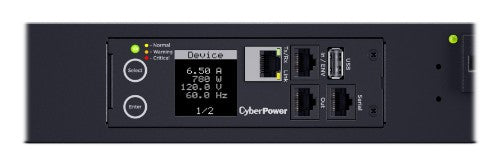

Digital Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Specifications

Design
PDU types	Switched, Monitored
Mounting	Vertical
Type	Single-phase
Display	Yes
Product colour	Black
Certification	UL 62368-1; FCC Class A
Rack capacity	0U
Housing material	Metal
Ports & interfaces

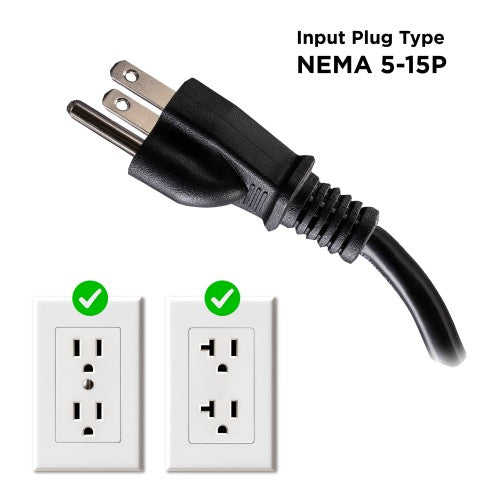

Power plug	NEMA 5-15P
AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA 5-15R
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	TX / RX, Link
Cable length	118.1" (3 m)
Certification	UL 62368-1; FCC Class A
Management features
Supported network protocols	TCP/IP, UDP, DHCP, SNMP, HTTP
Monitoring	Current, Power, Voltage
Ergonomics
Display	Yes
LED indicators	TX / RX, Link
Cable length	118.1" (3 m)
Power
Nominal input voltage	100 - 120 V
Maximum current	15 A
Nominal output voltage	100 - 120 VAC
Output voltage	120 V
Maximum input current per phase	15 A
AC input frequency	50 - 60 Hz
Certificates
Certification	UL 62368-1; FCC Class A
Compliance certificates	RoHS, UL
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 137795.3" (0 - 3500 m)
Non-operating altitude	0 - 590511.8" (0 - 14999 m)
Operating temperature (T-T)	32 - 140 °F

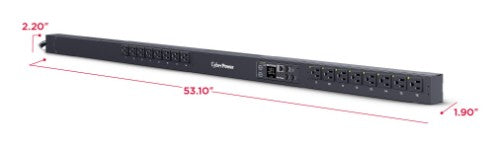

Weight & dimensions
Weight	11.9 lbs (5.4 kg)
Width	1.89" (48 mm)
Depth	2.2" (56 mm)
Height	53.1" (1349 mm)
Technical details
Compliance certificates	RoHS, UL
