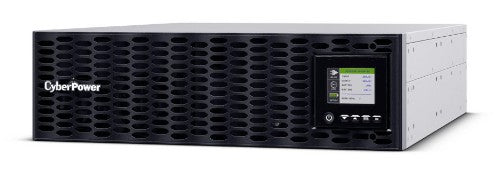

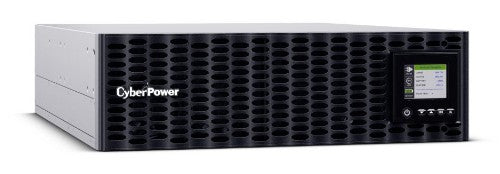

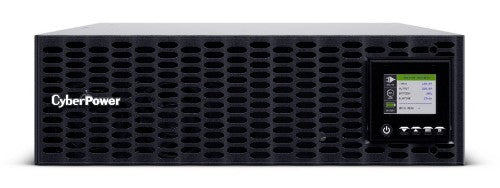

6000 VA / 6000 W, 3U, Sine Wave, 2 x NEMA L6-20R, 2 x NEMA L6-30R

Key Features

• Double-Conversion Topology
• Sine Wave Output
• Full Matrix LCD Control Panel
• Toolless Front Panel

Description

The CyberPower Smart App Online OL6KRTHDL high-density design offers more power and longer run times. The OL6KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

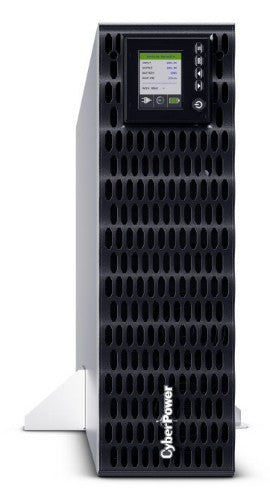

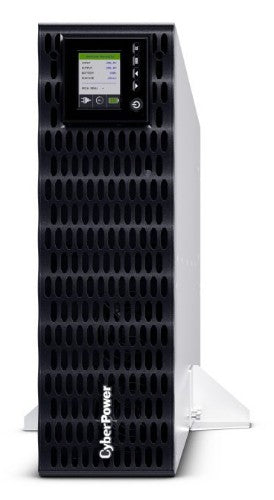

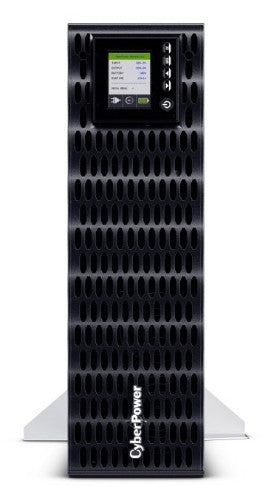

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL6KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it’s all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.

Specifications

Power
Output power capacity	6 kVA
Output power	6000 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	196 V
Output operation voltage (max)	245 V
Surge energy rating	2430 J
Maximum current	30 A
Efficiency	96%
Output voltage regulation	2%
Output frequency regulation	1 Hz
Output frequency	50/60 Hz
Input frequency	50/60 Hz
Performance
UPS topology	Double-conversion (Online)
Number of output phases	1
Number of input phases	1
EMI/RFI noise filtering	Yes
Waveform	Sine
Noise level	66 dB
LED indicators	Power
Features
UPS topology	Double-conversion (Online)
Output power capacity	6 kVA
Number of output phases	1
Number of input phases	1
Output power	6000 W
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	196 V
Output operation voltage (max)	245 V
Surge energy rating	2430 J
Maximum current	30 A
Efficiency	96%
EMI/RFI noise filtering	Yes
Waveform	Sine
Output voltage regulation	2%
Output frequency regulation	1 Hz
Output frequency	50/60 Hz
Noise level	66 dB
Input frequency	50/60 Hz
Heat dissipation	1307 BTU/h
Ports & interfaces

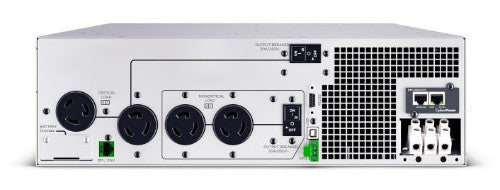

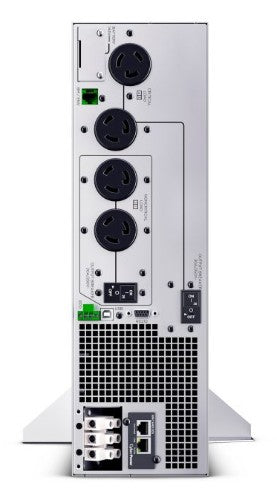

AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-30P
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Serial ports quantity	1
RS-232 ports	1
USB port type	USB Type-B
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	10.4 min
Typical backup time at full load	3.1 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Replacement battery cartridge	RB1290X12
Battery replacement accessibility	End-user
Design
Form factor	Rackmount
Rack capacity	3U
Product colour	Black
LED indicators	Power
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	UL, cUL, CSA, Federal Communications Commission (FCC)
Certificates
Compliance certificates	UL, cUL, CSA, Federal Communications Commission (FCC)
Weight & dimensions
Width	23.6" (599.4 mm)
Depth	43.3" (1099.8 mm)
Height	11.4" (289.6 mm)
Weight	144 lbs (65.3 kg)
