5000 VA / 5000 W, Online Double Conversion, Sine Wave, 3U Rack/Tower, 200–240 VAC, Black

Key Features

• Double-Conversion Topology
• Sine Wave Output
• Full Matrix LCD Control Panel
• Hot-Swappable Batteries
• Extended Battery Module (EBM)

Description

Product Overview
The CyberPower Smart App Online OL5KRTHDL high-density design offers more power and longer run times. The OL5KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL5KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.

Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

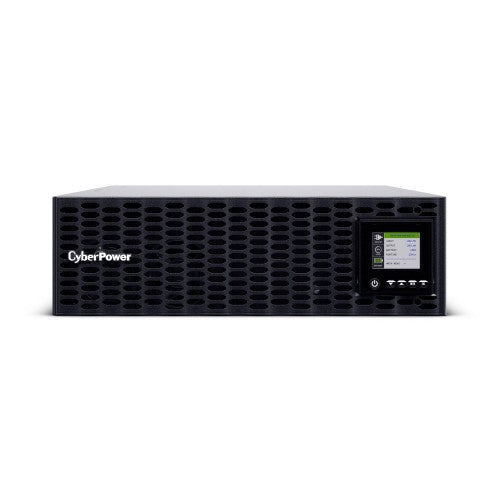

Full Matrix LCD Control Panel
Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.

Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.

Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.

Smart Battery Management (SBM)
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.

PowerPanel® Business Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

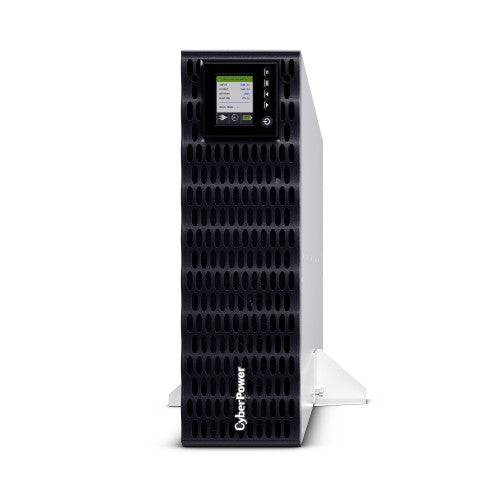

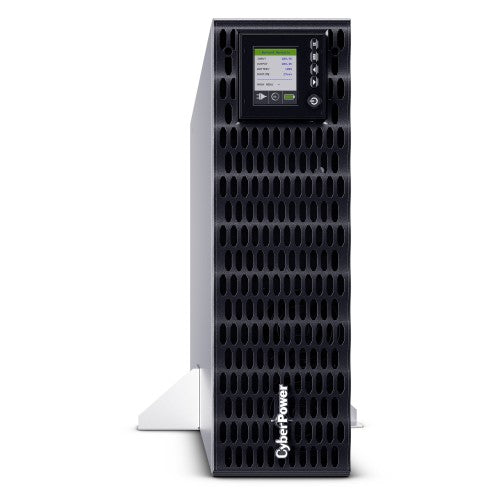

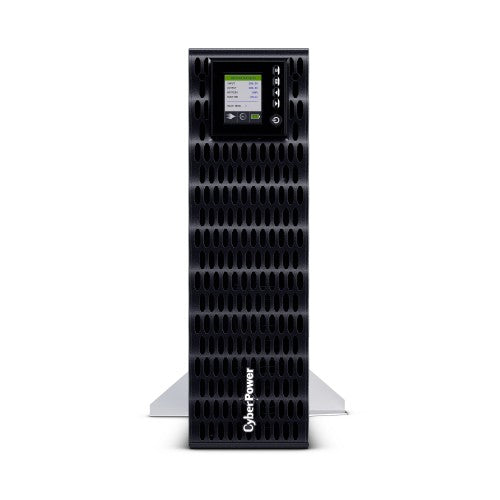

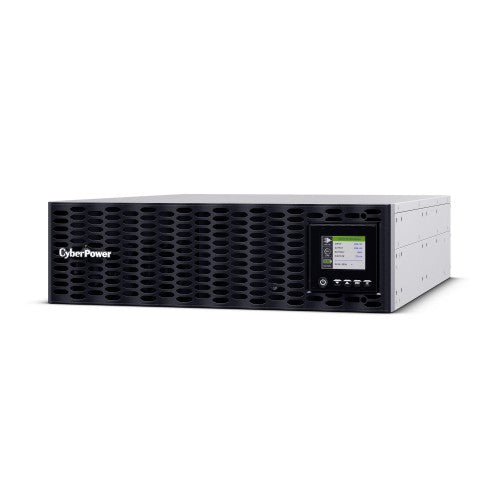

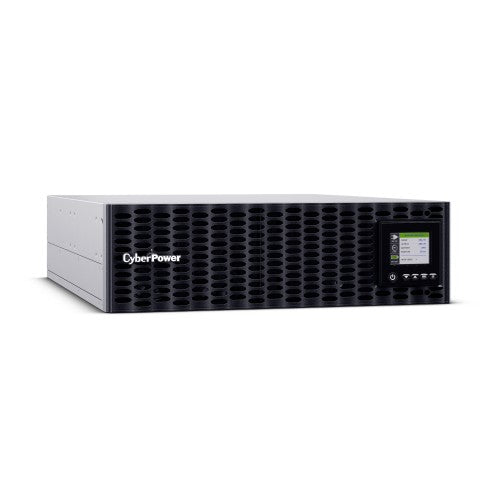

Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.

Energy Star Certified & GreenPower UPS™ ECO Mode
Improves UPS efficiency up to 96% reducing electrical and cooling costs.

Specifications

Power
Output power capacity	5 kVA
Output power	5000 W
Input operation voltage (min)	120 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Emergency Power Off (EPO)	Yes
Output voltage regulation	±2%
Output power factor	1
Output frequency	50/60 Hz
Input power factor	0.99
Crest factor	3:1
Efficiency (ECO mode)	96%
Input frequency	40 - 70 Hz

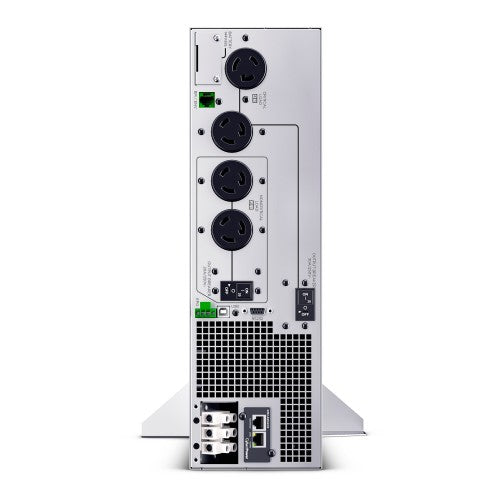

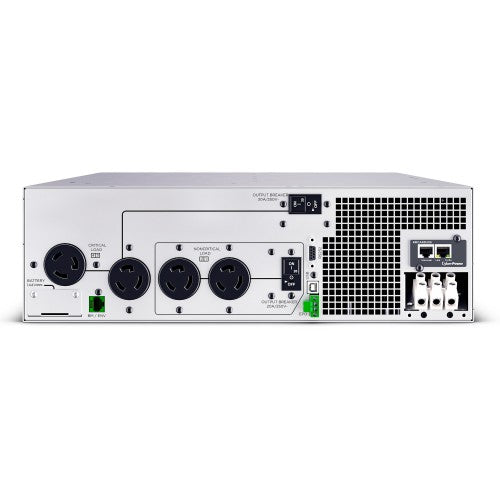

Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	4 AC outlet(s)
AC outlet types	NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-30P
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Performance
UPS topology	Double-conversion (Online)
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Surge protection	Yes
Waveform	Sine
Power protection features	Short circuit
LED indicators	Power
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	5 kVA
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Output power	5000 W
Input operation voltage (min)	120 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Surge energy rating	2430 J
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Power protection features	Short circuit
Output voltage regulation	±2%
Output power factor	1
Output frequency	50/60 Hz
Input power factor	0.99
Crest factor	3:1
Audible alarm(s)	Yes
Efficiency (ECO mode)	96%
Input frequency	40 - 70 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	12
Battery recharge time	4 h
Typical backup time at half load	14.3 min
Typical backup time at full load	4.9 min
Hot-swap battery	Yes
Cold start	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Rackmount/Tower
Rack capacity	3U
Product colour	Black
Certification	UL1778; CSA C22.2 No.107.3; FCC Part 15 Class A
Cable length	118.1" (3 m)
Cooling type	Active
LED indicators	Power
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 120000" (0 - 3048 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Certification	UL1778; CSA C22.2 No.107.3; FCC Part 15 Class A
Compliance certificates	RoHS
Packaging content
Cables included	USB cable, Input power cable
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	17" (432 mm)
Depth	28.3" (719 mm)
Height	5.12" (130 mm)
Weight	117.9 lbs (53.5 kg)
Package width	23.6" (599.4 mm)
Package depth	43.3" (1099.8 mm)
Package height	11.4" (289.6 mm)
Package weight	144 lbs (65.3 kg)
Packaging data
Cables included	USB cable, Input power cable
Package width	23.6" (599.4 mm)
Package depth	43.3" (1099.8 mm)
Package height	11.4" (289.6 mm)
Package weight	144 lbs (65.3 kg)
