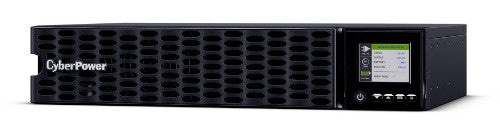

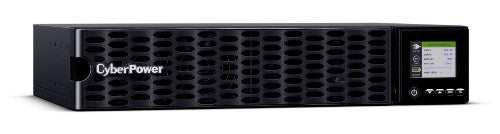

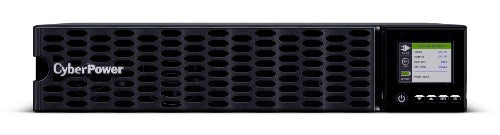

2200 VA, 1800 W, 2U, 0.82 power factor, Double-Conversion, Sine Wave, Black

Key Features

• Individual Outlet Control
• Double-Conversion Topology
• Sine Wave Output
• Full Matrix LCD Control Panel
• Hot-Swappable Batteries

Description

Product Overview
The OL2K2RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL2K2RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.82. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.

The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.

Individual Outlet Control
Individual outlets can be programmed, scheduled, or remote controlled to supply power to different devices. RMCARD205 or RMCARD400 is required to remotely manage, monitor, or control UPS.

Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

Full Matrix LCD Control Panel
Auto-rotating, multi-function color LCD screen clearly shows status of UPS and power (green for normal, yellow for warning, and red for power failure and fault notices). LCD provides UPS status, controls, most recent event logs, and diagnostics.

Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.

Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.

Smart Battery Management (SBM)
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.

PowerPanel® Business Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

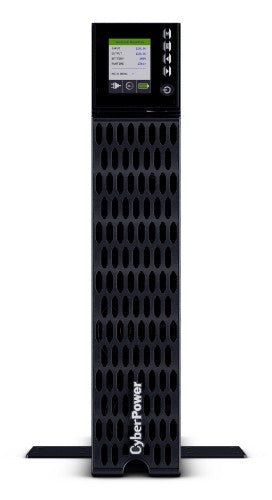

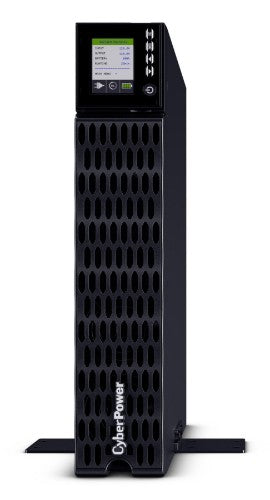

Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.

Specifications

Power
Output power capacity	2.2 kVA
Output power	1800 W
Input operation voltage (min)	60 V
Input operation voltage (max)	95 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	710 J
Emergency Power Off (EPO)	Yes
Output voltage regulation	±2%
Output power factor	0.82
Output frequency	50/60 Hz
Input power factor	0.99
Crest factor	3:1
Efficiency (ECO mode)	96%
Input frequency	40 - 70 Hz
Ports & interfaces
Cable length	118.1" (3 m)

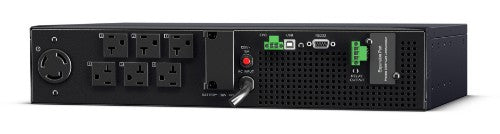

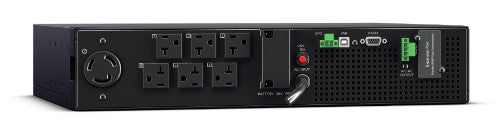

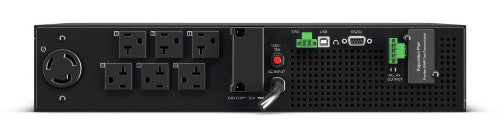

AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5-20R, NEMA L5-20R
Power plug	NEMA 5-20P
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Performance
UPS topology	Double-conversion (Online)
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Surge protection	Yes
Waveform	Sine
Power protection features	Short circuit
LED indicators	Power
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	2.2 kVA
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Output power	1800 W
Input operation voltage (min)	60 V
Input operation voltage (max)	95 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	710 J
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Power protection features	Short circuit
Output voltage regulation	±2%
Output power factor	0.82
Output frequency	50/60 Hz
Input power factor	0.99
Crest factor	3:1
Audible alarm(s)	Yes
Efficiency (ECO mode)	96%
Input frequency	40 - 70 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	3
Battery recharge time	4 h
Typical backup time at half load	10.3 min
Typical backup time at full load	3.1 min
Hot-swap battery	Yes
Cold start	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Certification	UL1778; CSA C22.2 No.107.3; FCC Part 15 Class A
Cable length	118.1" (3 m)
LED indicators	Power
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Certification	UL1778; CSA C22.2 No.107.3; FCC Part 15 Class A
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	17" (433 mm)
Depth	15" (380 mm)
Height	3.39" (86 mm)
Weight	38.6 lbs (17.5 kg)
Package width	22" (560.1 mm)
Package depth	18.9" (480.1 mm)
Package height	9.45" (240 mm)
Package weight	47 lbs (21.3 kg)
Packaging data
Cables included	USB cable
Package width	22" (560.1 mm)
Package depth	18.9" (480.1 mm)
Package height	9.45" (240 mm)
Package weight	47 lbs (21.3 kg)
