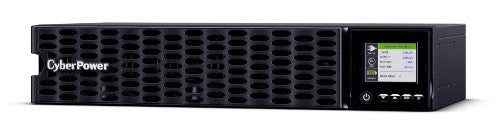

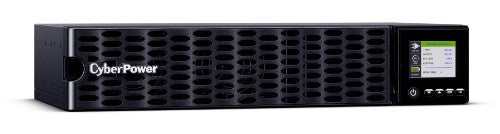

1000 VA / 1000 W, 2U rack/tower, double-conversion, sine wave, 8 × NEMA 5-15R, Power Factor 1, Black

Key Features

• Bank Outlet Control
• Double-Conversion Topology
• Sine Wave Output
• Full Matrix LCD Control Panel
• Hot-Swappable Batteries

Description

Product Overview
The OL1KRTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

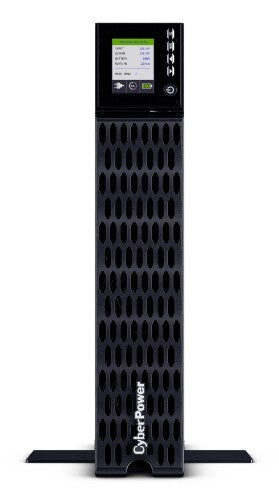

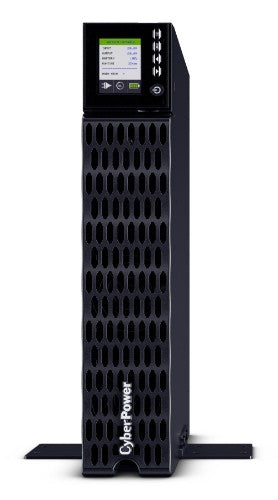

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL1KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.

The optional BP24VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power.

Specifications

Power
Output power capacity	1 kVA
Output power	1000 W
Input operation voltage (min)	60 V
Input operation voltage (max)	95 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	710 J
Emergency Power Off (EPO)	Yes
Output voltage regulation	±2%
Output power factor	1
Output frequency	50/60 Hz
Input power factor	0.99
Crest factor	3:1
Input frequency	40 - 70 Hz
Ports & interfaces
Cable length	118.1" (3 m)

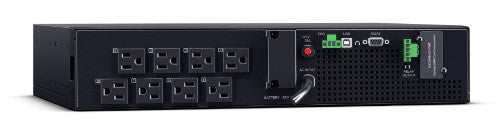

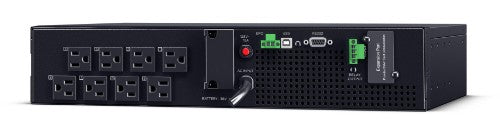

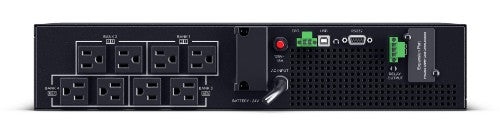

AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Performance
UPS topology	Double-conversion (Online)
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Surge protection	Yes
Waveform	Sine
Power protection features	Short circuit
LED indicators	Power
Audible alarm(s)	Yes
Features
UPS topology	Double-conversion (Online)
Output power capacity	1 kVA
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Output power	1000 W
Input operation voltage (min)	60 V
Input operation voltage (max)	95 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	710 J
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Waveform	Sine
Power protection features	Short circuit
Output voltage regulation	±2%
Output power factor	1
Output frequency	50/60 Hz
Input power factor	0.99
Crest factor	3:1
Audible alarm(s)	Yes
Input frequency	40 - 70 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	2
Battery recharge time	4 h
Typical backup time at half load	12 min
Typical backup time at full load	3.8 min
Hot-swap battery	Yes
Cold start	Yes
Battery voltage	12 V
Battery capacity	9 Ah
Design
Form factor	Rackmount/Tower
Rack capacity	2U
Product colour	Black
Certification	UL1778 CSA C22.2 No.107.3 FCC Part 15 Class B
Cable length	118.1" (3 m)
LED indicators	Power
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Certification	UL1778 CSA C22.2 No.107.3 FCC Part 15 Class B
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	17" (433 mm)
Depth	11.4" (290 mm)
Height	3.39" (86 mm)
Weight	28 lbs (12.7 kg)
Package width	22" (560.1 mm)
Package depth	15.3" (389.9 mm)
Package height	9.45" (240 mm)
Package weight	36.4 lbs (16.5 kg)
Packaging data
Cables included	USB cable
Package width	22" (560.1 mm)
Package depth	15.3" (389.9 mm)
Package height	9.45" (240 mm)
Package weight	36.4 lbs (16.5 kg)
