1500 VA / 900 W, Line Interactive, Simulated Sine, NEMA 5-15P, 12 x NEMA 5-15R
Key Features
- Automatic Voltage Regulation
- Management software
- SNMP/HTTP Remote management
Description

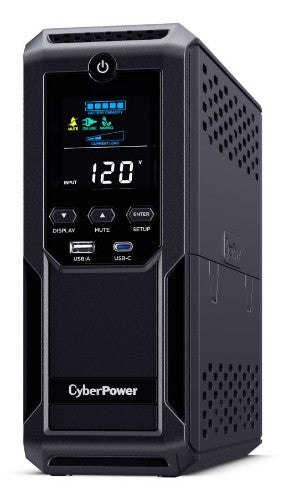

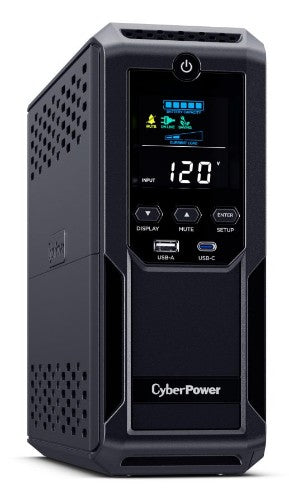

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1500AVRLD2 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The BRG1500AVRLD2 comes with a five year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Specifications
| Power |
|---|
| Output power capacity |
1.5 kVA |
| Output power |
900 W |
| Input operation voltage (min) |
57 V |
| Input operation voltage (max) |
120 V |
| Output operation voltage (min) |
114 V |
| Output operation voltage (max) |
126 V |
| Surge energy rating |
1500 J |
| Maximum current |
15 A |
| Efficiency |
95% |
| Output voltage regulation |
5% |
| Output frequency regulation |
1 Hz |
| Output frequency |
60 Hz |
| Input frequency |
57/63 Hz |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
4 ms |
| Waveform |
Simulated sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| LED indicators |
Power, Battery level, Charging, Status |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
1.5 kVA |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
4 ms |
| Output power |
900 W |
| Input operation voltage (min) |
57 V |
| Input operation voltage (max) |
120 V |
| Output operation voltage (min) |
114 V |
| Output operation voltage (max) |
126 V |
| Surge energy rating |
1500 J |
| Maximum current |
15 A |
| Efficiency |
95% |
| Waveform |
Simulated sine |
| Output voltage regulation |
5% |
| Output frequency regulation |
1 Hz |
| Output frequency |
60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Input frequency |
57/63 Hz |
| Heat dissipation |
205 BTU/h |
| Package type |
Box |
| Ports & interfaces |
|---|

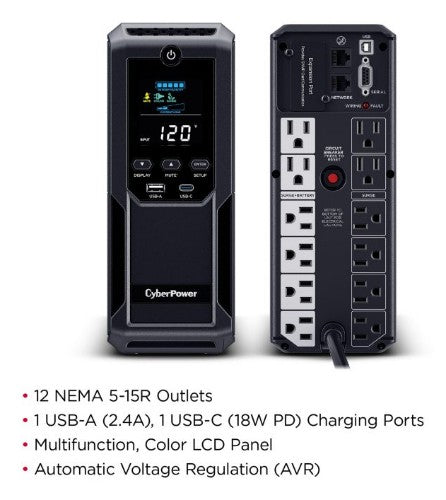

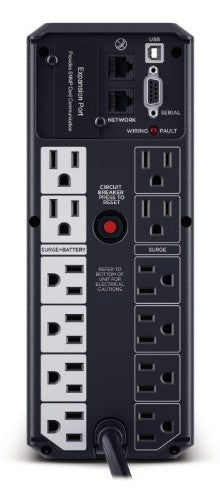

| AC outlets quantity |
12 AC outlet(s) |
| AC outlet types |
NEMA 5-15R |
| Power plug |
NEMA 5-15P |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port type |
USB Type-B |
| Network card slot |
Yes |
| Battery |
|---|
| Battery life (max) |
6 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
2 |
| Battery recharge time |
8 h |
| Typical backup time at half load |
12 min |
| Typical backup time at full load |
2 min |
| Cold start |
Yes |
| Battery voltage |
24 V |
| Battery capacity |
18 Ah |
| Replacement battery cartridge |
RB1290X2E |
| Number of batteries included |
2 pc(s) |
| Battery replacement accessibility |
End-user |
| Battery capacity |
18000 mAh |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| LED indicators |
Power, Battery level, Charging, Status |
| Housing material |
Plastic |
| Control type |
Buttons |

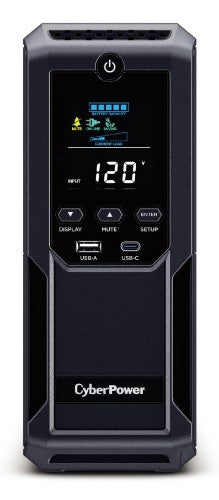

| Display type |
LCD |
| Network card slot |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 120000" (0 - 3048 m) |
| Non-operating altitude |
0 - 599960.6" (0 - 15239 m) |
| Technical details |
|---|
| Output frequency |
60 Hz |
| Compliance certificates |
RoHS, UL, cUL, Federal Communications Commission (FCC) |
| Battery capacity |
18000 mAh |
| Certificates |
|---|
| Compliance certificates |
RoHS, UL, cUL, Federal Communications Commission (FCC) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Manual |
Yes |
| Batteries included |
Yes |
| Weight & dimensions |
|---|
| Package type |
Box |

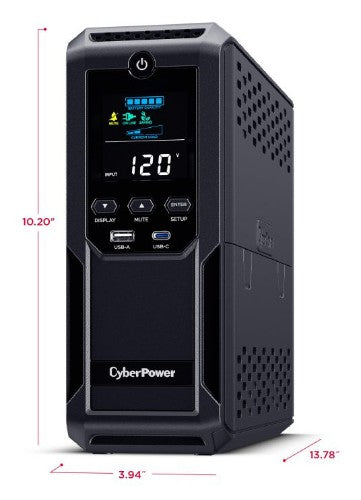

| Width |
3.94" (100 mm) |
| Depth |
13.8" (350 mm) |
| Height |
10.2" (259 mm) |
| Weight |
23.8 lbs (10.8 kg) |
| Package width |
7.48" (190 mm) |
| Package depth |
17.7" (450.1 mm) |
| Package height |
14.5" (368.1 mm) |
| Package weight |
25.4 lbs (11.5 kg) |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Manual |
Yes |
| Package type |
Box |
| Package width |
7.48" (190 mm) |
| Package depth |
17.7" (450.1 mm) |
| Package height |
14.5" (368.1 mm) |
| Package weight |
25.4 lbs (11.5 kg) |
