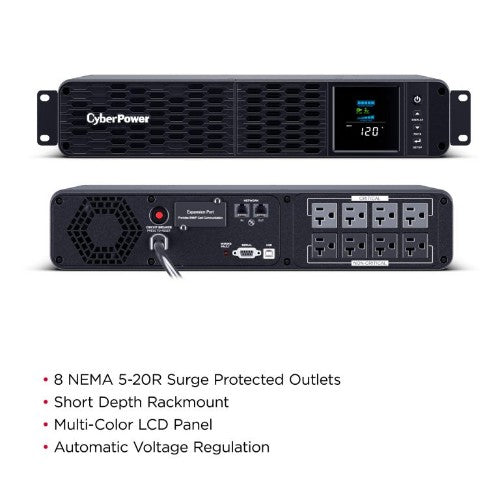

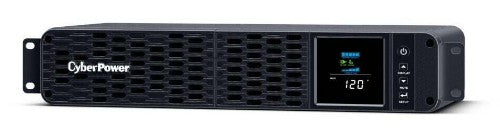

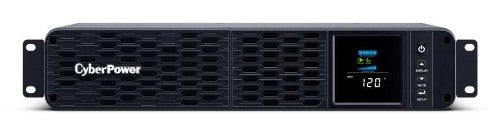

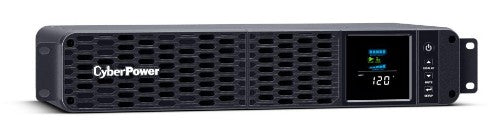

2000VA / 1200W, Line Interactive, Sine Wave, 8 x NEMA 5-20R

Key Features

• Battery Backup
• Surge Protection
• Sine Wave Output
• Short Depth Rackmount

Description

The CP2000PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

The CP2000PFCRM2U is equipped with Automatic Voltage Regulation (AVR) technology, enabling it to stabilize minor voltage fluctuations without engaging the battery, thereby extending battery life. It features an advanced multifunction control interface with a color LCD, providing real-time system status and alert notifications for at-a-glance monitoring. For enhanced system oversight, remote management and monitoring capabilities are supported via optional Remote Network Management Card or Cloud Monitoring Card integration. With a compact chassis depth of just 10.8 inches, the CP2000PFCRM2U is optimized for deployment in shallow-depth rack environments where space constraints are a critical consideration.

The CP2000PFCRM2U comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Specifications

Power
Output power capacity	2 kVA
Output power	1200 W
Input operation voltage (min)	89 V
Input operation voltage (max)	139 V
Output operation voltage (min)	114 V
Output operation voltage (max)	126 V
Surge energy rating	1500 J
Maximum current	16.7 A
Efficiency	95%
Output voltage regulation	5%
Output frequency regulation	1 Hz
Output frequency	60 Hz
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Response time	8 ms
Surge protection	Yes
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Fault
Features
UPS topology	Line-Interactive
Output power capacity	2 kVA
Number of output phases	1
Number of input phases	1
Response time	8 ms
Output power	1200 W
Input operation voltage (min)	89 V
Input operation voltage (max)	139 V
Output operation voltage (min)	114 V
Output operation voltage (max)	126 V
Surge energy rating	1500 J
Maximum current	16.7 A
Efficiency	95%
Surge protection	Yes
Waveform	Sine
Output voltage regulation	5%
Output frequency regulation	1 Hz
Output frequency	60 Hz
Automatic Voltage Regulation (AVR)	Yes
Input frequency	50/60 Hz
Heat dissipation	57.6 BTU/h

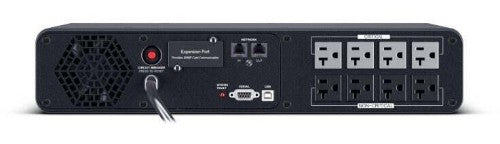

Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-20R
Power plug	NEMA 5-20P
USB port	Yes
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Battery
Battery life (max)	6 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	2
Battery recharge time	8 h
Typical backup time at half load	9 min
Typical backup time at full load	2.2 min
Hot-swap battery	Yes
Cold start	Yes
Battery voltage	24 V
Battery capacity	18 Ah
Automatic battery test	Yes
Replacement battery cartridge	RB1290X2G
Number of batteries included	2 pc(s)
Battery replacement accessibility	End-user
Battery capacity	18000 mAh
Design
Form factor	Rackmount
Rack capacity	2U
Product colour	Black
LED indicators	Fault
Housing material	Plastic
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 599960.6" (0 - 15239 m)
Technical details
Output frequency	60 Hz
Compliance certificates	UL, cUL, RoHS
Battery capacity	18000 mAh
Certificates
Compliance certificates	UL, cUL, RoHS

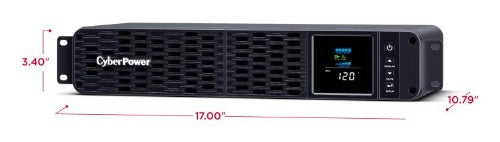

Weight & dimensions
Width	17" (433 mm)
Depth	10.8" (274 mm)
Height	3.39" (86 mm)
Weight	28.7 lbs (13 kg)
