2000VA / 1200W, Line Interactive, Sine Wave, 5 × NEMA 5-20R, 1U Rackmount, 12.6-minute half-load runtime

Key Features

• Battery Backup
• Surge Protection
• Sine Wave Output
• EMI/RFI Noise Filter
• Multifunction LCD Panel with Color Display

Description

Product Overview

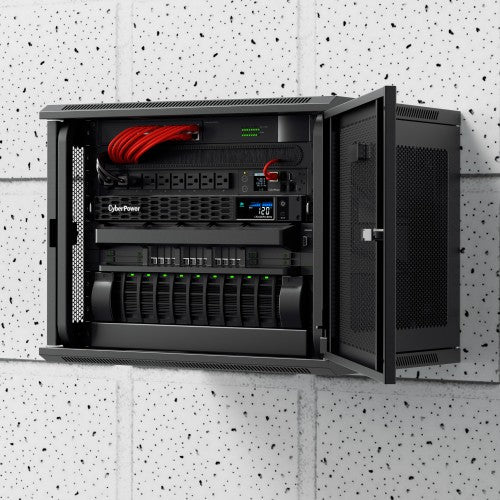

The CP2000PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

The CP2000PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card.

Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Sine Wave Output
Generates energy that is identical to, or cleaner than the utility company's power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

EMI/RFI Noise Filter
Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.

Multifunction LCD Panel with Color Display
Displays immediate, detailed information on the UPS battery and power conditions. The color display quickly alerts users to potential problems before they can affect critical equipment and cause downtime.

Automatic Voltage Regulation (AVR)
Conserves battery life by increasing the AC power and maintaining a safe voltage level without switching to battery mode.

Data Line Protection
Prevents power surges that travel through Ethernet lines from causing damage to electronics.

GreenPower UPS™ Bypass Design
A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.

PowerPanel® Business Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.

Specifications

Power
Output power capacity	2 kVA
Output power	1200 W
Input operation voltage (min)	88 V
Input operation voltage (max)	144 V
Surge energy rating	1050 J
Output voltage regulation	±5%
Output power factor	0.6
Output frequency	60 Hz
Input frequency	57/63 Hz
Ports & interfaces
Cable length	94.5" (2.4 m)

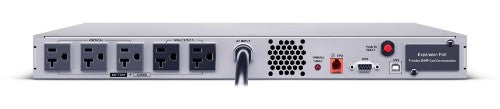

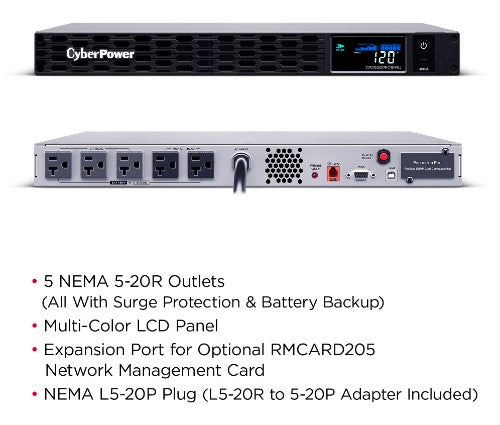

AC outlets quantity	5 AC outlet(s)
AC outlet types	NEMA 5-20R

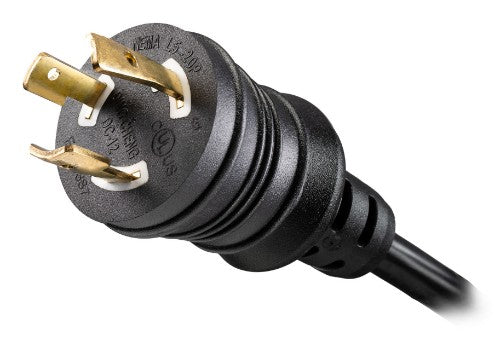

Power plug	NEMA L5-20P
USB port	Yes
Serial interface	Yes
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Response time	8 ms
Surge protection	Yes
Waveform	Sine
Power protection features	Surge protection, Overload
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Power, Fault
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	2 kVA
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm, Fault
Response time	8 ms
Output power	1200 W
Input operation voltage (min)	88 V
Input operation voltage (max)	144 V
Surge energy rating	1050 J
Surge protection	Yes
Waveform	Sine
Power protection features	Surge protection, Overload
Output voltage regulation	±5%
Output power factor	0.6
Output frequency	60 Hz
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Input frequency	57/63 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	6
Battery recharge time	8 h
Typical backup time at half load	12.6 min
Typical backup time at full load	3.1 min
Hot-swap battery	Yes
Battery voltage	6 V
Battery capacity	9 Ah
Design
Form factor	Rackmount
Rack capacity	1U
Product colour	Black
Certification	UL1778 CSA C22.2 No. 107.3 FCC Class B DOE
Cable length	94.5" (2.4 m)
LED indicators	Power, Fault
Control type	Buttons
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Technical details
Output frequency	60 Hz
Compliance certificates	RoHS, CSA
Certificates
Certification	UL1778 CSA C22.2 No. 107.3 FCC Class B DOE
Compliance certificates	RoHS, CSA
Packaging content
Cables included	USB cable, Input power cable
Weight & dimensions

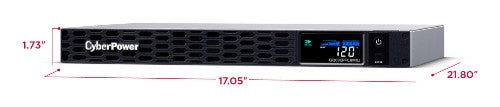

Width	17" (433 mm)
Depth	21.8" (554 mm)
Height	1.73" (44 mm)
Weight	48.5 lbs (22 kg)
Package width	21.8" (555 mm)
Package depth	26.8" (680 mm)
Package height	6.69" (169.9 mm)
Package weight	54 lbs (24.5 kg)
Packaging data
Cables included	USB cable, Input power cable
Package width	21.8" (555 mm)
Package depth	26.8" (680 mm)
Package height	6.69" (169.9 mm)
Package weight	54 lbs (24.5 kg)
