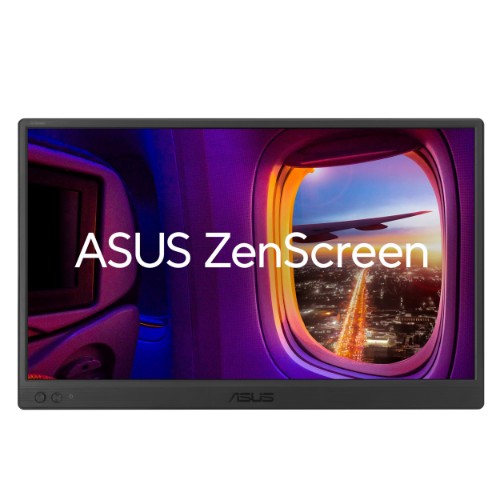

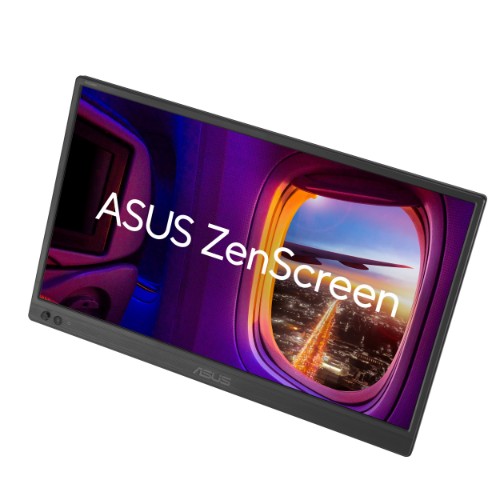

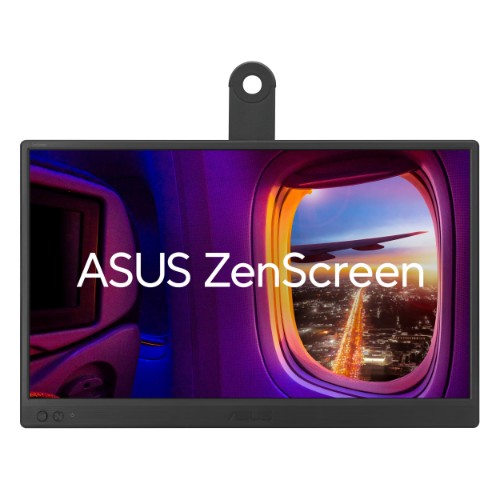

ASUS ZenScreen MB169CK
Key Features
- 15.6-inch Full HD portable anti-glare IPS display with an ultraslim and thin design helps you get things done more efficiently when you’re on the go
- USB Type-C connector (DP Alt mode) for user convenience and compatibility with compatible devices
- ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience

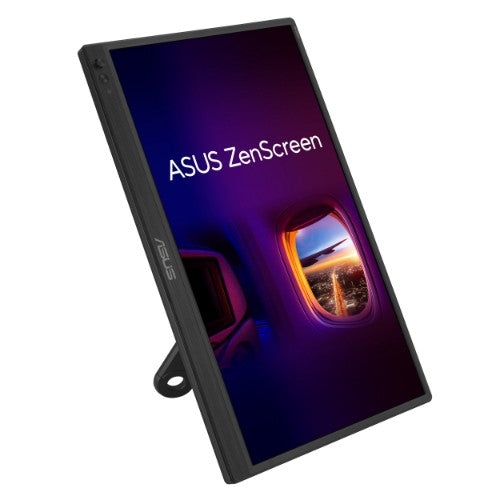

- Automatically sense its orientation and switch the monitor between landscape and portrait modes via DisplayWidget Center software

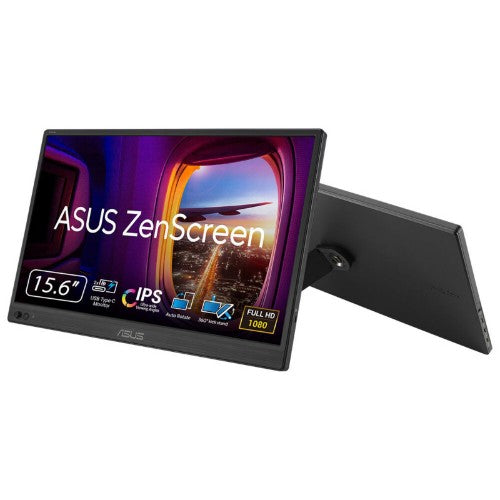

- User-friendly design with embedded tripod socket on the rear and 360° kickstand for versatility
Description
ASUS ZenScreen MB169CK Portable USB Monitor- 16 inch (15.6 inch viewable), Full HD, IPS, dual USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface, 360° kickstand
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
250 cd/m² |
| Display diagonal |
15.6" |
| Response time |
5 ms |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LCD |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
800:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00705 x 0.00705" (0.179 x 0.179 mm) |
| Viewable size, horizontal |
13.5" (34.4 cm) |
| Viewable size, vertical |
7.64" (19.4 cm) |
| Digital horizontal frequency |
24 - 83 kHz |
| Digital vertical frequency |
50 - 60 Hz |
| HD type |
Full HD |
| Touchscreen |
No |
| High Dynamic Range (HDR) supported |
Yes |
| Panel type |
IPS |
| Display diagonal (metric) |
15.7" (40 cm) |
| LED backlight |
Yes |
| Response time measurement type |
GTG (Gray to Gray) |
| Anti-glare screen |
Yes |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Game mode |
Yes |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Brand specific technologies |
SPLENDID |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
|---|
| Market positioning |
Consumer |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| USB Type-C downstream ports quantity |
2 |
| HDCP |
Yes |
| Headphone out |
No |
| HDMI |
Yes |
| I/O ports |
Thunderbolt 3 N/A;USB-C x 2 (DP Alt Mode);DisplayPort 1.1 N/A;DisplayPort 1.2 N/A;DisplayPort 2.1 N/A;DisplayPort 1.4 N/A;DisplayPort 1.4 DSC N/A;Mini DisplayPort N/A;HDMI(v2.1) N/A;HDMI(v2.0) N/A;HDMI(v1.3) N/A;HDMI(v1.4) N/A;Micro HDMI N/A;Mini HDMI x 1;DVI N/A;Dual-Link DVI N/A;VGA N/A;USB Hub : N/A;Earphone Jack : N/A;SPDIF Out (Optical Digital Audio Out) : N/A;PC Audio Input : N/A;USB-C Power Delivery : N/A;USB 3.2 (Signal) : N/A |
| HDMI version |
1.4 |
| DisplayPort version |
1.2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| HDCP version |
1.4 |
| Ergonomics |
|---|
| Cable lock slot |
No |
| VESA mounting |
No |
| Height adjustment |
No |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
7.64 W |
| Power consumption (off) |
0.3 W |
| Power consumption (PowerSave) |
0.5 W |
| Power supply type |
Internal |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
C |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
7 kWh |
| Weight & dimensions |
|---|
| Width (without stand) |
14.2" (360 mm) |
| Height (without stand) |
8.9" (226 mm) |
| Depth (without stand) |
0.472" (12 mm) |
| Weight (without stand) |
27.5 oz (780 g) |
| Package width |
17.1" (434 mm) |
| Package depth |
2.99" (76 mm) |
| Package height |
11.4" (290 mm) |
| Package weight |
3.75 lbs (1.7 kg) |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
17.1" (434 mm) |
| Package depth |
2.99" (76 mm) |
| Package height |
11.4" (290 mm) |
| Package weight |
3.75 lbs (1.7 kg) |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC) Mix |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC) Mix |
| Power supply type |
Internal |
| Game mode |
Yes |
| Touchscreen |
No |
| Other features |
|---|
| Display viewable area (HxV) |
13.5 x 7.62" (344.2 x 193.6 mm) |
| Brand specific technologies |
SPLENDID |
| Width (without stand) |
14.2" (360 mm) |
| Height (without stand) |
8.9" (226 mm) |
| HDMI |
Yes |
| Game mode |
Yes |
| Depth (without stand) |
0.472" (12 mm) |
| Energy efficiency scale |
A to G |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power supply type |
Internal |
| Touchscreen |
No |
| USB Power Delivery (USB PD) |
Yes |
| Package type |
Box |
