AMD X870E, Socket AM5, 4 x DIMM slots, max. 256GB DDR5, Realtek 5Gb Ethernet, Wi-Fi 7, UEFI AMI BIOS, ATX
Description

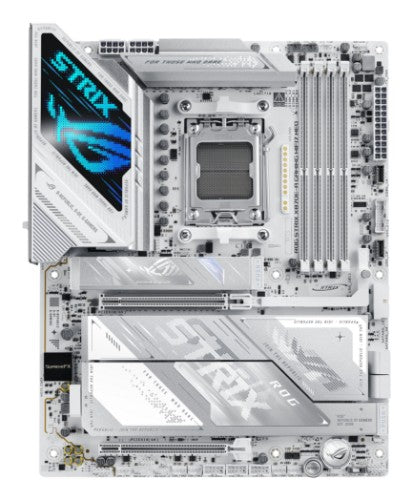

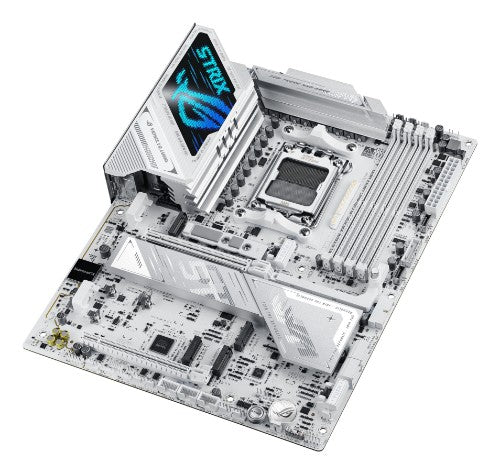

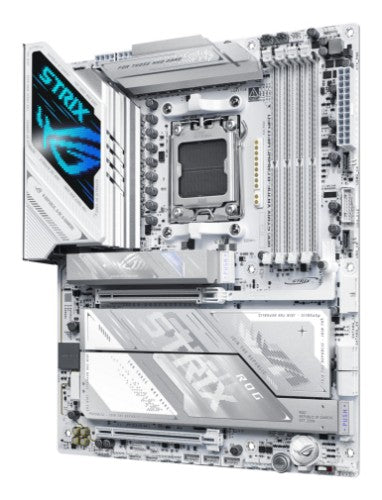

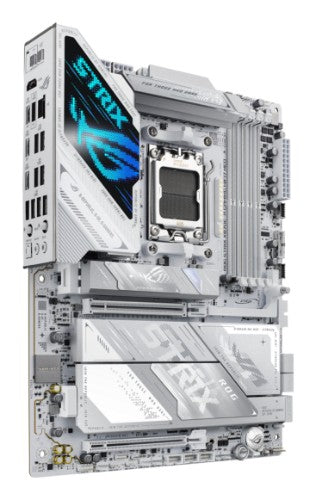

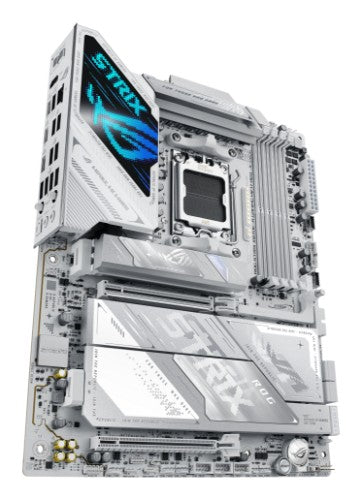

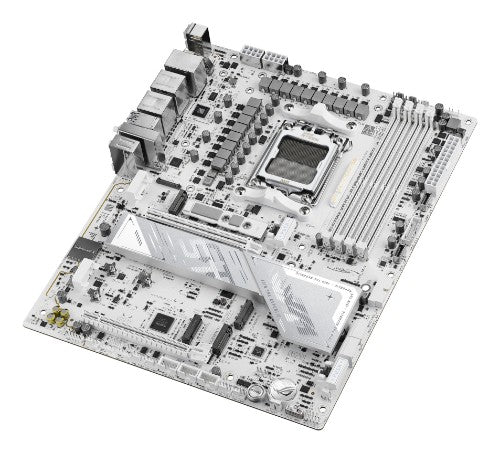

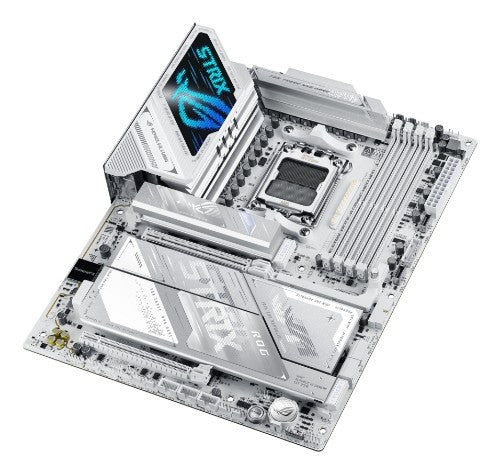

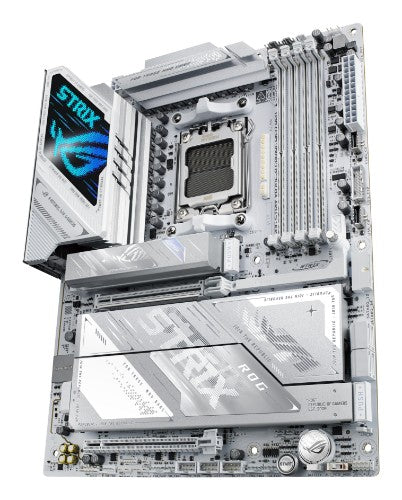

ROG STRIX X870E-A gaming wifi7 NeoElevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4® Type-C ports, WiFi 7, and Realtek® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.
Specifications
| Internal I/O |
|---|
| Number of M.2 (M) slots |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
SATA III, M.2 |
| USB 2.0 connectors |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
4 |
| Number of chassis fan connectors |
5 |
| Front panel audio connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| Chassis intrusion connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| USB 3.2 Gen 2x2 connectors |
1 |
| Number of CPU fan connectors |
1 |
| Performance |
|---|
| Component for |
PC |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870E |
| Motherboard form factor |
ATX |
| Audio output channels |
7.1 channels |
| Supported storage drive types |
HDD & SSD |
| RAID levels |
0, 1, 5, 10 |
| Number of HDDs supported |
4 |
| Windows operating systems supported |
Windows 11 |
| Processor |
|---|
| Processor manufacturer |
AMD |
| Compatible processor series |
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Processor socket |
Socket AM5 |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Memory channels |
Dual-channel |
| Maximum internal memory |
256 GB |
| Unbuffered memory |
Yes |
| Supported memory clock speed (max) |
9600 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Storage controllers |
|---|
| Supported storage drive interfaces |
SATA III, M.2 |
| Supported storage drive types |
HDD & SSD |
| RAID levels |
0, 1, 5, 10 |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
8 |
| RAID support |
Yes |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| WiFi-AP antenna jack |
1 |
| VGA (D-Sub) ports quantity |
0 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
0 |
| USB4 Gen 3x2 ports quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet interface type |
5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
MediaTek MT7925 |
| Features |
|---|
| Component for |
PC |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870E |
| Motherboard form factor |
ATX |
| Audio output channels |
7.1 channels |
| Windows operating systems supported |
Windows 11 |
| Product colour |
Multicolor |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| 1st M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2260 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 3rd M.2 largest key size |
2242 |
| 3rd M.2 highest PCI Express generation |
5.0 |
| 4th M.2 largest key size |
22110 |
| 4th M.2 highest PCI Express generation |
5.0 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
64 Mbit |
| Clear CMOS button |
Yes |
| Packaging data |
|---|
| Package width |
13.9" (353 mm) |
| Package depth |
10.7" (273 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
5.95 lbs (2.7 kg) |
| Weight & dimensions |
|---|
| Width |
12" (305 mm) |
| Depth |
9.61" (244 mm) |
| Height |
1.97" (50 mm) |
| Weight |
4.19 lbs (1.9 kg) |
| Package width |
13.9" (353 mm) |
| Package depth |
10.7" (273 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
5.95 lbs (2.7 kg) |
| Other features |
|---|
| Height |
1.97" (50 mm) |
| Weight |
4.19 lbs (1.9 kg) |
| Package width |
13.9" (353 mm) |
| Package depth |
10.7" (273 mm) |
| Package height |
2.68" (68 mm) |
| Package weight |
5.95 lbs (2.7 kg) |
