ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX

Name: ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX
Brand: ASUS
SKU: ROG CROSSHAIR X870E HERO BTF
Price: 1185.45 CAD
Availability: InStock

ASUSSKU: ROG CROSSHAIR X870E HERO BTF

Price:

1,185.45 CAD

Shipping calculated at checkout

Stock:

In stock

Quantity:

Enjoy Free Shipping on orders over 2000 CAD

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AMD X870E, AM5, 4 x DIMM slots, max.256GB DDR5, 2.5/5Gb Ethernet, Wi-Fi 7, Bluetooth 5.4, 256Mb Flash ROM, UEFI AMI BIOS, ATX

Description

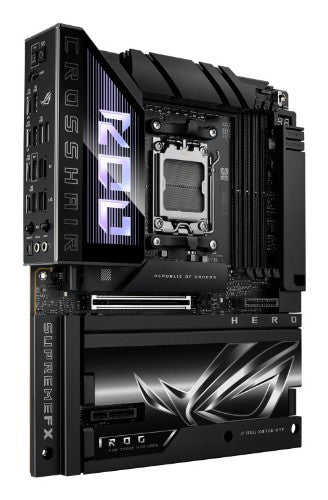

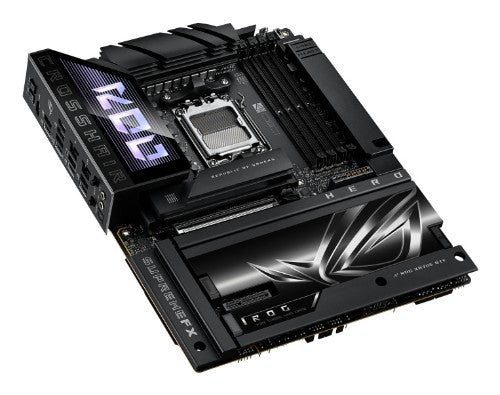

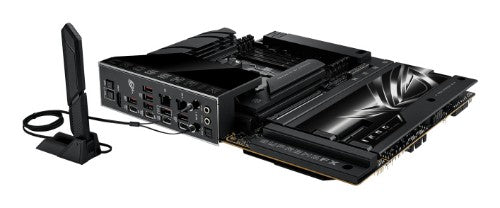

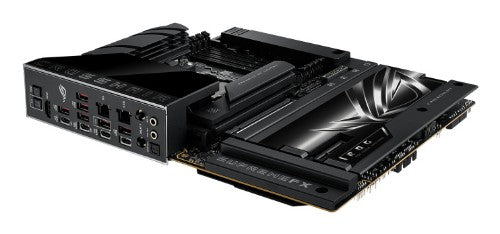

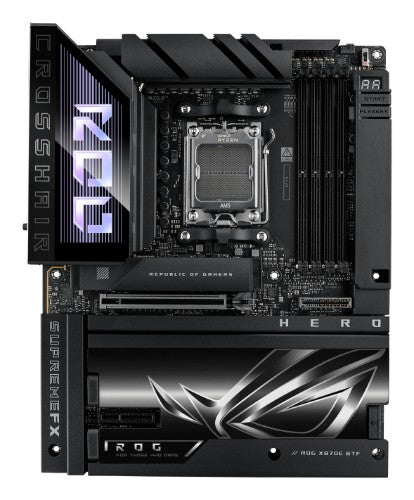

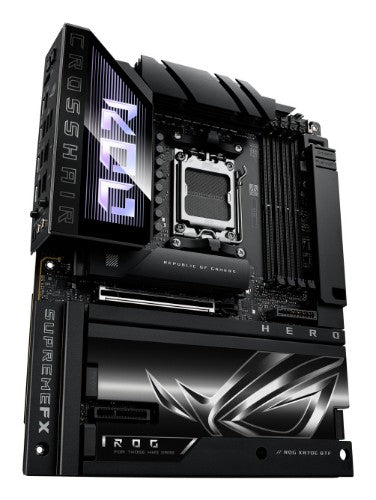

ROG Crosshair X870E HERO BTF

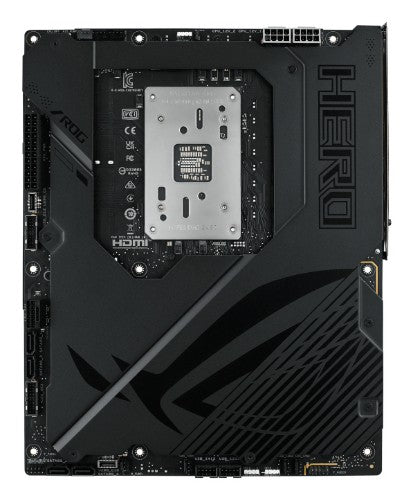

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.

Specifications

Internal I/O
Number of M.2 (M) slots	5
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
USB 3.2 Gen 2x2 connectors	2
Number of CPU fan connectors	1
Performance
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Supported storage drive types	HDD & SSD
RAID levels	0, 1, 5, 10
Number of HDDs supported	4
Windows operating systems supported	Windows 11
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Memory
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Number of memory slots	4
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8600 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID levels	0, 1, 5, 10
Number of HDDs supported	4
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No

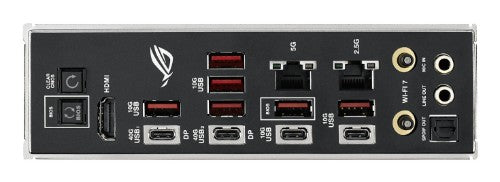

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
DVI-D ports quantity	0
USB4 Gen 3x2 ports quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Component for	PC
Motherboard chipset family	AMD
Motherboard chipset	AMD X870E
Motherboard form factor	ATX
Audio output channels	7.1 channels
Windows operating systems supported	Windows 11
Product colour	Multicolor
Expansion slots
Number of M.2 (M) slots	5
PCI Express x4 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Packaging data
Package width	14.4" (366 mm)
Package depth	12.1" (308 mm)
Package height	4.33" (110 mm)
Package weight	9.85 lbs (4.47 kg)
Weight & dimensions
Width	12" (305 mm)
Depth	9.61" (244 mm)
Height	2.24" (57 mm)
Weight	5.78 lbs (2.62 kg)
Package width	14.4" (366 mm)
Package depth	12.1" (308 mm)
Package height	4.33" (110 mm)
Package weight	9.85 lbs (4.47 kg)
Other features
Height	2.24" (57 mm)
mSATA ports quantity	0
Weight	5.78 lbs (2.62 kg)
Package width	14.4" (366 mm)
Package depth	12.1" (308 mm)
Package height	4.33" (110 mm)
Package weight	9.85 lbs (4.47 kg)
