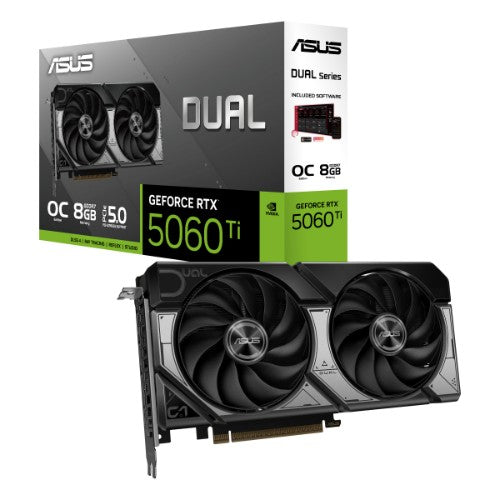

Dual GeForce RTX 5060 Ti 8GB GDDR7 OC Edition
Key Features
- AI Performance: 767 AI TOPS
- OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode)
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- 0dB technology lets you enjoy light gaming in relative silence.
- Dual BIOS lets you toggle between Quiet and Performance BIOS profiles.
- Dual ball fan bearings last up to twice as long as sleeve bearing designs.
Description
DUAL GEFORCE RTX™ 5060 Ti

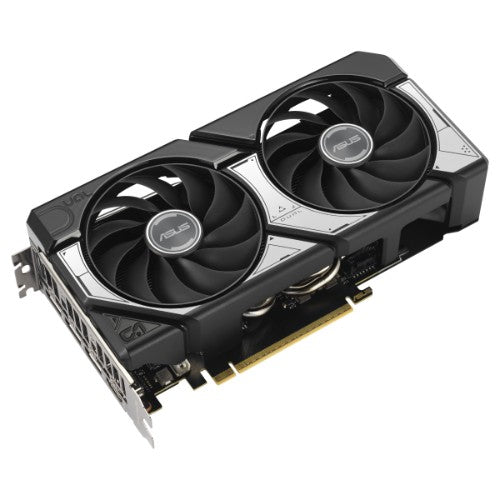

Dual Fans, Perfect FitASUS Dual GeForce RTX™ 5060 Ti combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Build Small. Play Big.You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot DesignA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech UpgradesTwo tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB TechnologyTo eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
Dual Ball Fan BearingsFan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

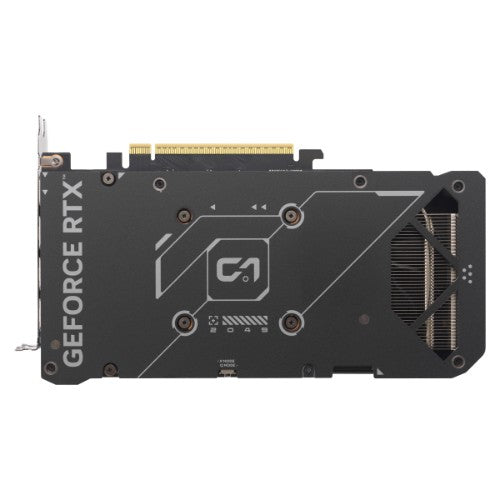

Vented BackplateA vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 5060 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Yes |
| Processor boost clock speed |
2602 MHz |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA cores |
4608 |
| Processor frequency (OC mode) |
2632 MHz |
| Memory |
|---|
| Discrete graphics card memory |
8 GB |
| Graphics card memory type |
GDDR7 |
| Memory bus |
128 bit |
| Data transfer rate |
28 Gbit/s |
| Ports & interfaces |
|---|
| Interface type |
PCI Express 5.0 |
| HDMI ports quantity |
1 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.1b |
| DisplayPort version |
2.1b |
| Performance |
|---|
| TV tuner integrated |
No |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Overclocked (OC) edition |
Yes |
| NPU performance up to |
759 TOPs |
| Design |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Number of slots |
2.5 |
| Number of fans |
2 fan(s) |
| Product colour |
Black, Gray |
| Cooling technology |
ASUS Axial-tech |
| SFF ready |
Yes |
| Power |
|---|
| Minimum system power supply |
550 W |
| Supplementary power connectors |
1x 8-pin |
| Weight & dimensions |
|---|
| Height |
4.72" (120 mm) |
| Depth |
1.97" (50 mm) |
| Length |
9.02" (229 mm) |
| Packaging data |
|---|
| Package type |
Box |
| Manual |
Yes |
| Packaging content |
|---|
| Manual |
Yes |
