4.25kW, 5kVA, 208V, 50/60Hz, 840VAh, RJ-45. SmartSlot, USB, LCD, 480J, 3U, 432x719x130mm, 55.79kg, Black
Description
Marketing Features- Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Low operating and maintenance costs with proven reliability and intelligent battery management.

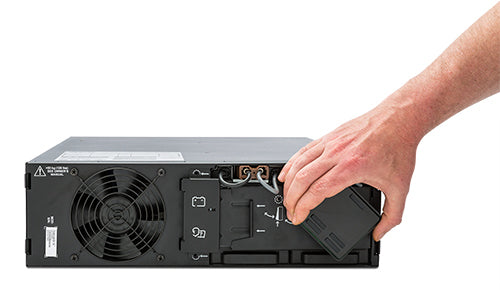

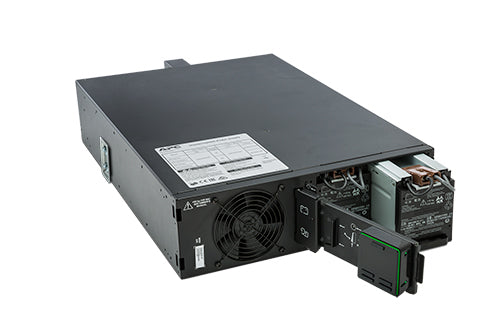

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Specifications
| Power |
|---|
| Output power capacity |
5 kVA |
| Output power |
4250 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (max) |
208 V |
| Surge energy rating |
480 J |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Output frequency |
50/60 Hz |
| Crest factor |
3:1 |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |

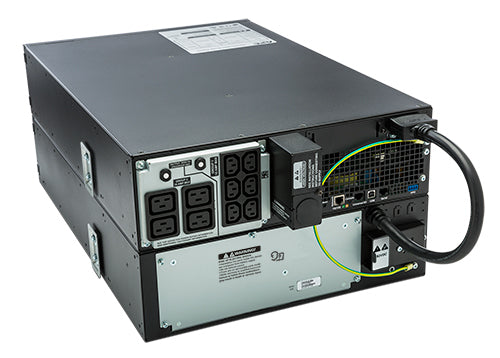

| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler, IEC Jumpers |
| Power plug |
NEMA L6-30P |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| Cabling technology |
10/100Base-T |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Noise level |
55 dB |
| LED indicators |
Alarm, Status |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
5 kVA |
| Web-based management |
Yes |
| Output power |
4250 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (max) |
208 V |
| Surge energy rating |
480 J |
| Surge protection |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Output frequency |
50/60 Hz |
| Crest factor |
3:1 |
| Auto-restart |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
40/70 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery capacity |
840 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
1.5 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Replacement battery cartridge |
APCRBC140 |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Rack capacity |
3U |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778, REACH |
| Cable length |
118.1" (3 m) |
| LED indicators |
Alarm, Status |
| Display type |

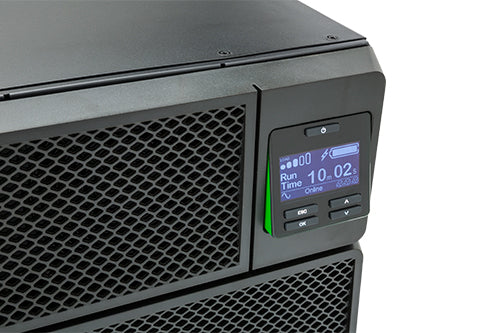

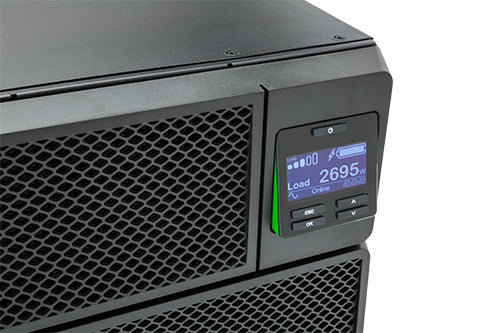

LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778, REACH |
| Compliance certificates |
RoHS |
| Management features |
|---|
| Web-based management |
Yes |
| Packaging content |
|---|
| Cables included |
USB cable |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Resource CD |
Yes |
| Bracket |
Yes |
| Warranty card |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
17" (432 mm) |
| Depth |
28.3" (719 mm) |
| Height |
5.12" (130 mm) |
| Weight |
123 lbs (55.8 kg) |
| Package width |
24" (610 mm) |
| Package depth |
37.8" (960 mm) |
| Package height |
13" (330 mm) |
| Package weight |
149.9 lbs (68 kg) |
| Packaging data |
|---|
| Cables included |
USB cable |
| Resource CD |
Yes |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Bracket |
Yes |
| Warranty card |
Yes |
| Package width |
24" (610 mm) |
| Package depth |
37.8" (960 mm) |
| Package height |
13" (330 mm) |
| Package weight |
149.9 lbs (68 kg) |
| Logistics data |
|---|
| Products per pallet |
6 pc(s) |
