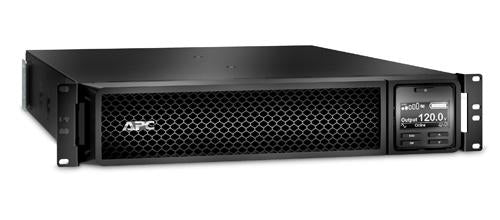

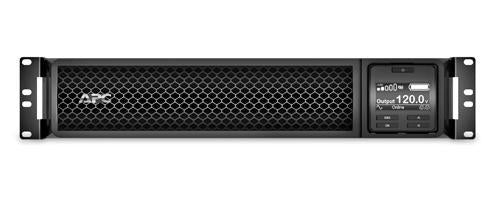

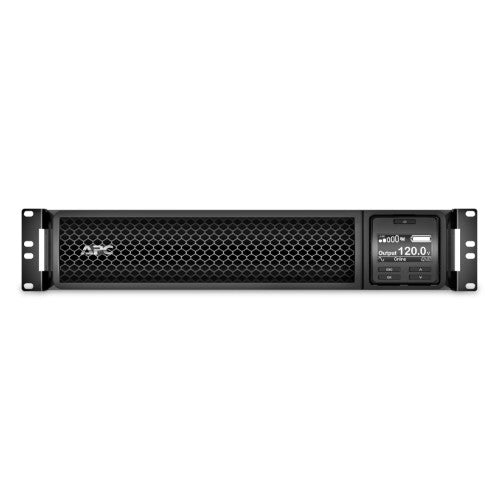

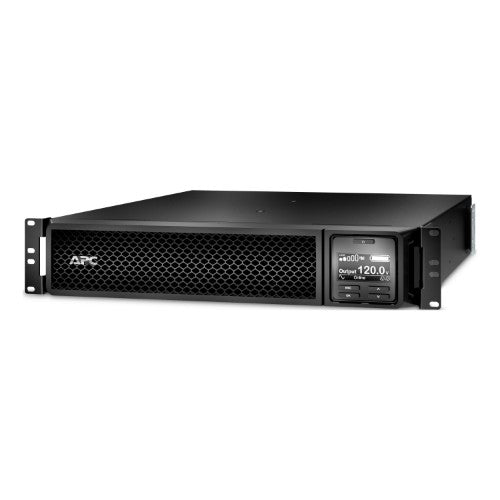

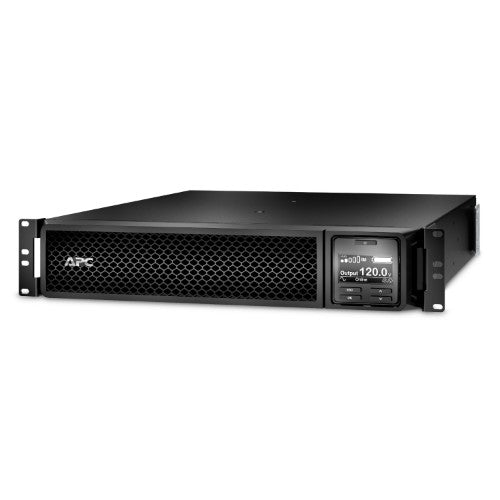

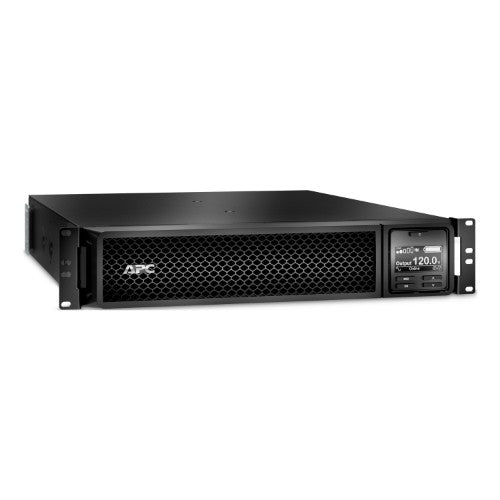

Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, Network Card, Extended runtime, W/ rail kit
Key Features
- 2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- 1-Year Secure Network Management Card subscription included
- Add up to 10 external battery packs (SRT72RMBP) for extended runtime
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Delivers clean power with zero transfer time for critical or sensitive devices
Reasons To Buy
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms.
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. This On-Line UPS features Unity Power Factor for best-in-class power density. With 7 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This UPS includes a pre-installed Network Management Card (model AP9631) via the SmartSlot, to remotely monitor and control the UPS by connecting it directly to the network. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. Audible alarms also provide notification of changing utility power and UPS conditions. The SRT2200RMXLA-NC converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. This 1800 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card.
Specifications
| Power |
|---|
| Output power capacity |
2.2 kVA |
| Output power |
1800 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
120 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
340 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Output frequency |
50/60 Hz |
| Crest factor |
3:1 |
| Single-phase input voltage supported |
120 V |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| Cable length |
70.9" (1.8 m) |
| AC outlet types |
NEMA 5–20R, NEMA L5-20R |
| Power plug |
NEMA 5-20P |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Surge protection |
Yes |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Noise level |
55 dB |
| LED indicators |
Alarm, Status |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
2.2 kVA |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output power |
1800 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
120 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
340 J |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Output frequency |
50/60 Hz |
| Crest factor |
3:1 |
| Auto-restart |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Single-phase input voltage supported |
120 V |
| Input frequency |
40/70 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Battery capacity |
306 Ah |
| Automatic battery test |
Yes |
| Replacement battery cartridge |
APCRBC141 |
| Battery replacement accessibility |
End-user |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Rack capacity |
2U |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Certification |
ENERGY STAR V2.0 (USA) |
| Cable length |
70.9" (1.8 m) |
| LED indicators |
Alarm, Status |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Output voltage |
120 V |
| Output frequency |
50/60 Hz |
| Mounting |
front; horizontal |
| Sustainability certificates |
ENERGY STAR |
| Total carbon footprint (kg of CO2e) |
5956.2860008137 |
| Compliance certificates |
RoHS, REACH, WEEE |
| Certificates |
|---|
| Certification |
ENERGY STAR V2.0 (USA) |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
17" (432 mm) |
| Depth |
23" (584 mm) |
| Height |
3.35" (85 mm) |
| Weight |
55.1 lbs (25 kg) |
| Package width |
23.6" (599 mm) |
| Package depth |
31.9" (810 mm) |
| Package height |
9.69" (246 mm) |
| Package weight |
75 lbs (34 kg) |
| Packaging data |
|---|
| Package width |
23.6" (599 mm) |
| Package depth |
31.9" (810 mm) |
| Package height |
9.69" (246 mm) |
| Package weight |
75 lbs (34 kg) |
| Logistics data |
|---|
| Products per pallet |
12 pc(s) |
| Customs product code (TARIC) |
8504409590 |
| Total carbon footprint (kg of CO2e) |
5956.2860008137 |
| Other features |
|---|
| Input connection type |
NEMA 5-20P |
| Output voltage |
120 V |
| Output connection type |
6 NEMA5-20R; 1 NEMAL5-20R |
| Mounting |
front; horizontal |
