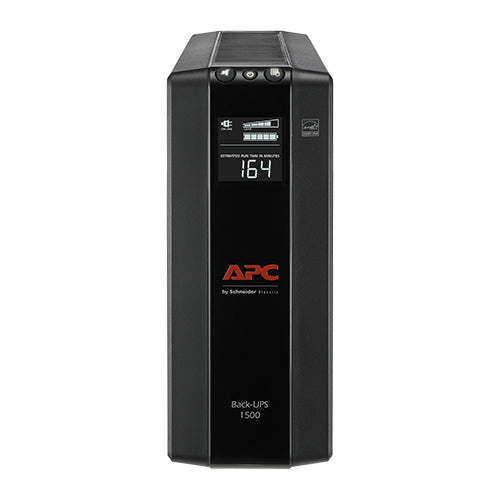

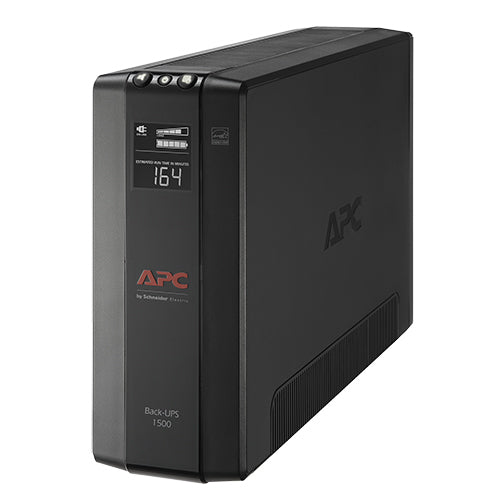

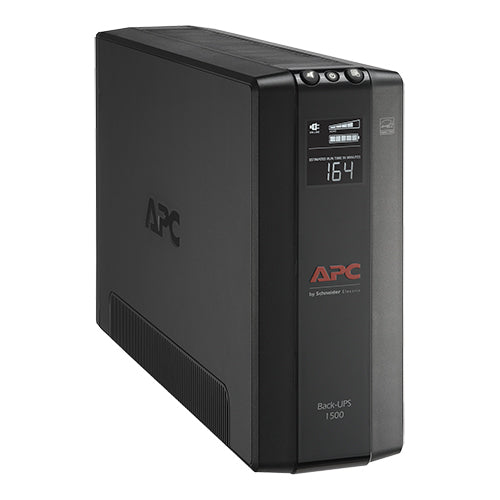

APC BX1500M uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 10 AC outlet(s)

1500 VA, 900 W, 120 V, 5 x NEMA 5-15R(Battery Backup), 5 x NEMA 5-15R(selector_surgetitle), 88 - 139 V, 50/60 Hz, 789 J, 1.83 m, Black

Description

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).

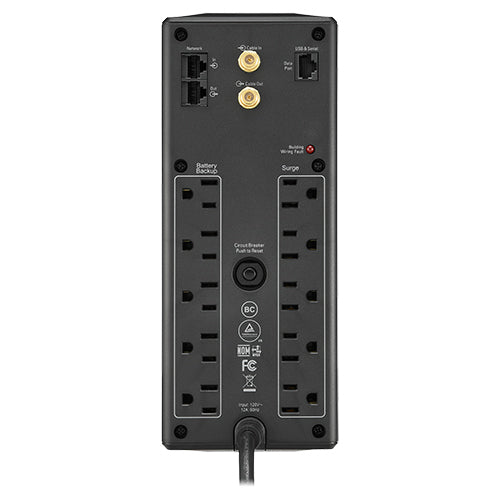

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.

Cold-start capable
Provides temporary battery power when the utility power is out.

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Lifetime data recovery warranty
Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Transformer Block Spacing
Connect bulky transformer block plugs without covering up other outlets.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Specifications

Power
Output power capacity	1.5 kVA
Output power	900 W
Input operation voltage (min)	88 V
Input operation voltage (max)	139 V
Output operation voltage (max)	120 V
Surge energy rating	789 J
Maximum current	12 A
Output frequency regulation	60 Hz
Input frequency	60 Hz
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Waveform	Sine
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Output power	900 W
Input operation voltage (min)	88 V
Input operation voltage (max)	139 V
Output operation voltage (max)	120 V
Surge energy rating	789 J
Maximum current	12 A
Waveform	Sine
Output frequency regulation	60 Hz
Audible alarm(s)	Yes
Input frequency	60 Hz
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15R
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	16 h
Design
Form factor	Tower
Product colour	Black
Certification	California (CEC) Battery Charger, FCC Part 15 Class B, UL 1778
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Certificates
Certification	California (CEC) Battery Charger, FCC Part 15 Class B, UL 1778
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	3.94" (100 mm)
Depth	15" (382 mm)
Height	9.84" (250 mm)
Weight	24.3 lbs (11 kg)
Package width	8.94" (227 mm)
Package depth	19.3" (491 mm)
Package height	13.7" (348 mm)
Package weight	28 lbs (12.7 kg)
Packaging data
Package width	8.94" (227 mm)
Package depth	19.3" (491 mm)
Package height	13.7" (348 mm)
Package weight	28 lbs (12.7 kg)
