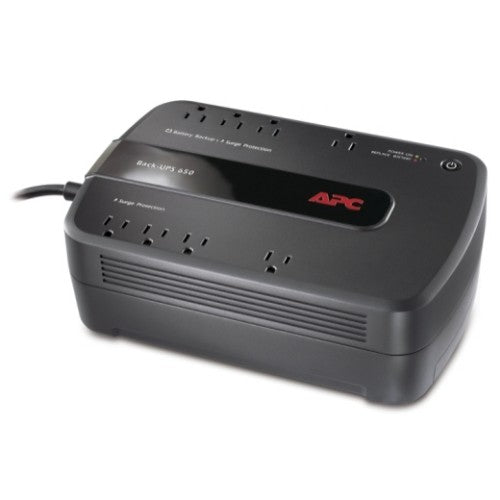

APC BE650G1-CN uninterruptible power supply (UPS) Standby (Offline) 0.65 kVA 390 W 8 AC outlet(s)

390Watts/650VA, NEMA 5-15R, 120V, 1.5m

Description

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Cold-start capable
Provides temporary battery power when the utility power is out.

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Safety-agency approved
The UPS is UL1778 Listed

Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Specifications

Power
Output power capacity	0.65 kVA
Output power	390 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	340 J
Maximum current	12 A
Output frequency	60 Hz
Input frequency	60 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
USB port	Yes
Cabling technology	10/100Base-T
Ethernet LAN (RJ-45) ports	2
Performance
UPS topology	Standby (Offline)
Response time	8 ms
Waveform	Sine
Noise level	45 dB
Features
UPS topology	Standby (Offline)
Output power capacity	0.65 kVA
Response time	8 ms
Output power	390 W
Input operation voltage (min)	90 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	340 J
Maximum current	12 A
Waveform	Sine
Output frequency	60 Hz
Noise level	45 dB
Input frequency	60 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	24 h
Battery capacity	79 Ah
Design
Form factor	Compact
Product colour	Black
Cable length	59.1" (1.5 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 600000" (0 - 15240 m)
Technical details
Output frequency	60 Hz
Weight & dimensions
Width	7.09" (180 mm)
Depth	11.9" (302 mm)
Height	3.46" (88 mm)
Weight	13.7 lbs (6.2 kg)
Package width	9.25" (235 mm)
Package depth	15.5" (393 mm)
Package height	5.04" (128 mm)
Package weight	15.4 lbs (7 kg)
Packaging data
Package width	9.25" (235 mm)
Package depth	15.5" (393 mm)
Package height	5.04" (128 mm)
Package weight	15.4 lbs (7 kg)
Logistics data
Master (outer) case width	11" (279 mm)
Master (outer) case length	16" (406 mm)
Master (outer) case height	10" (254 mm)
Master (outer) case gross weight	31.7 lbs (14.4 kg)
