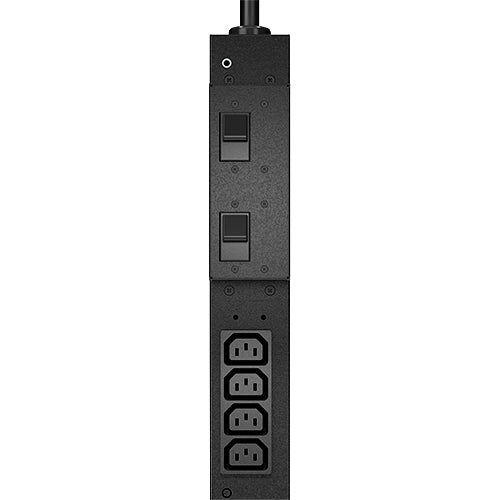

Basic, Half Height, 200-208V, 30A, 14x IEC 320 C13, 2x IEC 320 C19, NEMA L6-30P, 56 x 47 x 833 mm, 2780 g
Description
AgilityWide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power sourceSupply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-MountableIncludes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of OwnershipLow Cost Power DistributionProvides a number of outlets to bring power to rack equipment at an affordable price.
Marketing FeaturesWide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power sourceSupply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-MountableIncludes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power DistributionProvides a number of outlets to bring power to rack equipment at an affordable price.
Specifications
| Design |
|---|
| PDU types |
Basic |
| Product colour |
Black |
| Certification |
cUL, UL |
| Ports & interfaces |
|---|
| AC outlets quantity |
16 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Input connection type |
NEMA L6-30P |
| Features |
|---|
| Certification |
cUL, UL |
| Power |
|---|
| Nominal input voltage |
208 V |
| Maximum current |
30 A |
| Maximum input current per phase |
30 A |
| Maximum total current draw per phase |
30 A |
| Power protection features |
Overload |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
2.2 x 1.85 x 32.8" (56 x 47 x 833 mm) |
| Weight |
6.13 lbs (2.78 kg) |
| Width |
2.2" (56 mm) |
| Depth |
1.85" (47 mm) |
| Height |
32.8" (833 mm) |
| Package width |
6.14" (156 mm) |
| Package depth |
5.39" (137 mm) |
| Package height |
38" (966 mm) |
| Package weight |
7.14 lbs (3.24 kg) |
| Package dimensions (WxDxH) |
6.14 x 5.39 x 38" (156 x 137 x 966 mm) |
| Packaging data |
|---|
| Package width |
6.14" (156 mm) |
| Package depth |
5.39" (137 mm) |
| Package height |
38" (966 mm) |
| Package weight |
7.14 lbs (3.24 kg) |
| Package dimensions (WxDxH) |
6.14 x 5.39 x 38" (156 x 137 x 966 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-15 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
