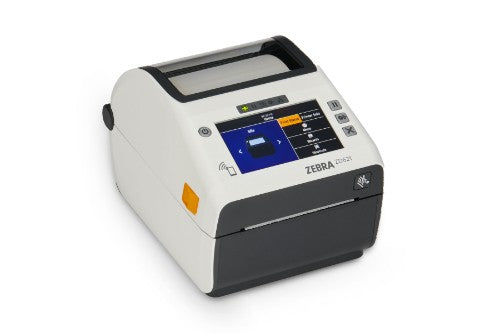

ZD621 Direct Thermal, Healthcare, LCD, 300 DPI, USB, Ethernet, Serial, 802.11ac, BT4, USA/Canada, US Cord, Swiss Font, EZPL
Description
You need a premium, quality healthcare printer that’s built to perform flawlessly—day in and day out. Rely on Zebra’s ZD621 healthcare desktop printers, built specifically for healthcare, and advancing the proven and popular ZD620 printers. Don’t compromise. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. Healthcare-specific engineering with disinfectant-ready plastics, UV-resistant and medical-grade power supply. Unmatched security that’s constantly evolving to shield you from cyberattacks and safeguard your sensitive data, including patient information. A new standard 4.3-in., full-color LCD touch display with intuitive menu. Enhanced features, communication and field-installable media-handling options. And, increased remote- management capabilities. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security to keep you moving forward.
Specifications
| Printing |
|---|
| Print technology |
Direct thermal |
| Colour |
No |
| Print speed |
152 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
4.25" (10.8 cm) |
| Number of printable dots |
12 dot |
| Design |
|---|
| LED indicators |
Yes |
| Display |
LCD |
| Product colour |
Black, White |
| Touchscreen |
Yes |
| Display diagonal |
4.3" |
| Colour display |
Yes |
| Display resolution |
480 x 272 pixels |
| Control type |
Buttons |
| Built-in display |
Yes |
| Display |
|---|
| Display |
LCD |
| Touchscreen |
Yes |
| Display diagonal |
4.3" |
| Colour display |
Yes |
| Display resolution |
480 x 272 pixels |
| Memory |
|---|
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Paper handling |
|---|
| Ribbon width |
4.29" (10.9 cm) |
| Ribbon length |
11811" (300 m) |
| Supported paper width |
108 mm |
| Media thickness |
0.08 - 0.19 mm |
| Maximum roll diameter |
5" (12.7 cm) |
| Maximum label length |
39" (0.991 m) |
| Core diameters supported |
12.7 mm (0.5"), 25.4 mm (1"), 38.1 mm (1.5"), 76.2 mm (3") |
| Ports & interfaces |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| RS-232 ports |
1 |
| RS-232 interface |
Yes |
| Connectivity technology |
Wired & Wireless |
| Bluetooth version |
4.0 |
| Bluetooth |
Yes |
| USB port |
Yes |
| Performance |
|---|
| Ribbon width |
4.29" (10.9 cm) |
| Ribbon length |
11811" (300 m) |
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Page description languages |
EPL2, PDF, XML, ZBI, ZPL II |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
4.4 - 41 °C |
| Weight & dimensions |
|---|
| Width |
6.97" (177 mm) |
| Depth |
8.7" (221 mm) |
| Height |
5.94" (151 mm) |
| Weight |
3.53 lbs (1.6 kg) |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Safety warning |
IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark,
CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Other features |
|---|
| LED indicators |
Yes |
