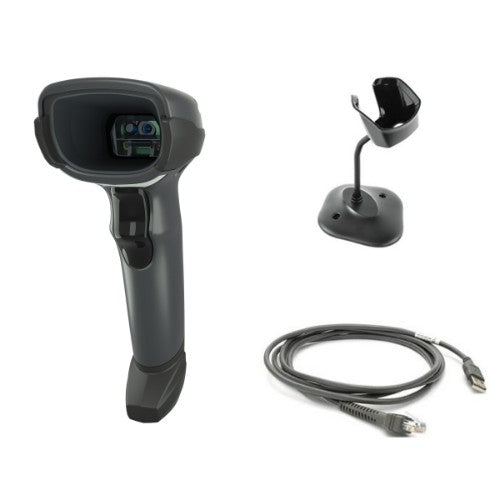

1D/2D/OCR, 340 mA, IP52, Array Imager, Black, USB cable kit with Stand
Key Features
- Superior Scanning Performance: Fast, accurate scanning of 1D/2D barcodes and QR codes. Easily integrate high-quality scanning into your tablet-based POS; includes a Micro USB cable to provide a cost-effective charging alternative to a cradle._x000D_
- Seamless SDK Integration: Easily integrate scanning into applications with SDKs for Windows, Android, iOS, and Linux. Leverage industry-preferred complementary tools for effortless deployment and management across your enterprise._x000D_
- Ready to Use Right Out of the Box: Since the default settings are optimized for most scanning applications, our DS2278 handheld imager can be used straight out of the box with no additional setup required._x000D_
- Ready to Use from the First Moment: Configured for instant use, it features auto-host-detect cables that automatically identify your POS interface. Enjoy quick setup with USB/RS232 support, eliminating extra configurations and reducing setup time._x000D_
- Extended Battery Life: Equipped with a high-capacity 2400 mAh battery, it delivers impressive runtime that supports a full day of intensive scanning, minimizing downtime and ensuring continuous productivity.
Description
The versatility your workforce needsResets the Bar for Versatility and PerformanceCapture It All with the DS4600 SeriesNo matter what kind of data you need to capture in your store, the DS4600 Series is ready for the job. Scan 1D and 2D barcodes, whether they’re printed on a label or displayed on a phone. Capture DotCode and dotted DataMatrix barcodes through cellophane, as well as the tiny and dense barcodes found on jewelry tags. Read wide barcodes on packages and cartons in the backroom. You can even collect data from IDs and travel documents using Optical Character Recognition (OCR), or parse driver’s license information for age verification, returns monitoring, loyalty and credit card applications. The result? Superior value.
Superior “Can’t Miss” Scanning RangeThe DS4600-SR can capture UPC codes up to 28 in (71 cm) away, enabling checkout associates and self-checkout users to easily reach heavy or bulky items at the bottom of the shopping cart. It’s ideal for adding handheld scanning to a bioptic scanner, such as Zebra’s MP72 Series, in high-volume checkout lanes.
Count On Zebra Performance to Keep Lines MovingThe 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes. An exclusive rear engine design enables the DS4600 Series to read wider barcodes at every distance, compared to other scanners with a similar field of view. As a result, associates can focus on your customers, rather than positioning items.
Day-in, Day-Out DependabilityThe DS4600 Series is engineered for durability, inside and out. IP52 sealing protects against spills. An exclusive double-sealed optical system guards the critical optical components from dust and liquid — ensuring that the ‘eye’ of the scanner always captures the sharpest possible barcode image for fast, reliable decoding. The recessed scan window protects against smudges, dirt and scratches. And the scanner is built to survive multiple 6 ft. (1.8m) drops to concrete and 2,000 tumbles in our punishing tumble test.
On-the-Fly Switching Between Handheld and Hands-FreePlace the scanner in its stand for hands-free mode or pick it up for handheld use. The mode switches automatically.
Flexible Feedback Modes That Work for Any Retail EnvironmentThe DS4600 Series offers multiple feedback modes including a good decode LED that’s visible from any position, a traditional beep tone with adjustable volume/frequency, and Zebra’s Direct Decode Indicator that projects the illumination on the barcode.
Do More With Productivity-Enhancing InnovationEnhance Inventory Management with GS1 Label ParsingWith Label Parse+, the DS4600 Series can instantly capture and parse GS1 label barcode data, enabling associates to capture expiration dates, lot number, manufacturing location and more.
Capture Multiple Barcodes With One Press of the Scan TriggerWith Multi-Code Data Formatting (MDF), the DS4600 Series can scan multiple barcodes with a single trigger pull and transmit only the barcodes you need, in the order your application expects.
Single Out One Barcode From ManyWith Zebra’s Preferred Symbol, the DS4600 Series can capture and output only the preferred barcode, so workers no longer have to waste time physically covering nearby barcodes before scanning.
Deactivate EAS Tags While ScanningOptional EAS support, available on the DS4600-HD/HL, allows associates to deactivate Checkpoint EAS tags while scanning the price, boosting productivity and preventing erroneous alarms.
Streamline Data Collection With OCRSupport for OCR expedites the collection of data from ID cards and travel documents that may not have barcodes — speeding up checkout transactions in airport shops and other locations.
Capture Driver’s License DataCashiers can capture and parse data information on driver’s licenses to automatically populate a loyalty or credit card application, verify age for restricted purchases, process a customer’s return and more.
A Better Cordless Experience with ZebraFull-Shift Power Your Workers Can Count OnThe DS4678 supports over 50,000 scans in a single charge — that’s more than 13 hours of continuous scanning.
Choice of Standard and Presentation CradlesThe Presentation Cradle provides convenient hands-free scanning and charges the battery during use. The Standard Cradle can sit on a desktop or be mounted on a wall or checkstand. Both cradles are cross-compatible with Zebra’s DS8100 Series. And Zebra’s Connect+ Contact technology assures reliable, corrosion-free charging over the life of the scanner.
Keep Track of Your Cordless ScannersWith Virtual Tether, you won’t have to worry about a customer accidentally leaving self-checkout with a cordless scanner. Both the scanner and cradle alert when a scanner is taken beyond its range or left out of the cradle for a predefined length of time.
Eliminate Wireless Network Interference with Wi-Fi Friendly ModeZebra’s exclusive Wi-Fi Friendly Mode ensures that cordless scanners won’t interfere and disrupt your Wi-Fi network.
Industry-Preferred Management ToolsEffortless DeploymentThe DS4600 Series couldn’t be easier to setup. Right out of the box, the scanner is configured for the applications you use every day, while auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go.
Make Data-Driven Decisions Informed by Your ScannersZebra’s IoT Connector is a fully automated real-time data collection tool that routes data from your scanners into your preferred IoT endpoint. By mining and analyzing the data, you can get the insights needed to make data-driven decisions in real time.
Up-to-the-Minute Insight into Every Aspect of Your ScannersRemote Diagnostics automate the recording of scanner asset information, health and statistics, parameter settings and barcode data — giving you the information needed for troubleshooting, predictive fleet-wide trend analysis and more.
Zebra DNA — Set Up. Secure. Manage. Optimize.Zebra's 50 years of field-proven innovation is built into every scanner with Zebra DNA. This software suite simplifies deployment, customizes data formatting, and provides powerful remote management—ensuring maximum performance and adaptability.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, PDF417, UPC-E |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Pitch reading angle |
-60 - 60° |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Standard interfaces |
USB |
| Performance |
|---|
| Product colour |
Black |
| International Protection (IP) code |
IP52 |
| LED indicators |
Yes |
| Design |
|---|
| Product colour |
Black |
| Type |
Handheld bar code reader |
| International Protection (IP) code |
IP52 |
| LED indicators |
Yes |
| Power |
|---|
| Power source type |
USB |
| Power consumption |
340 mA |
| Weight & dimensions |
|---|
| Width |
3.86" (98 mm) |
| Depth |
6.5" (165 mm) |
| Height |
2.64" (67 mm) |
| Weight |
5.71 oz (161.9 g) |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Harmonized System (HS) code |
84716070 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
