48 TB, 7200RPM, 640MB/s read, 800MB/s write, Thunderbolt 3, USB 3.2 Gen 2
Description

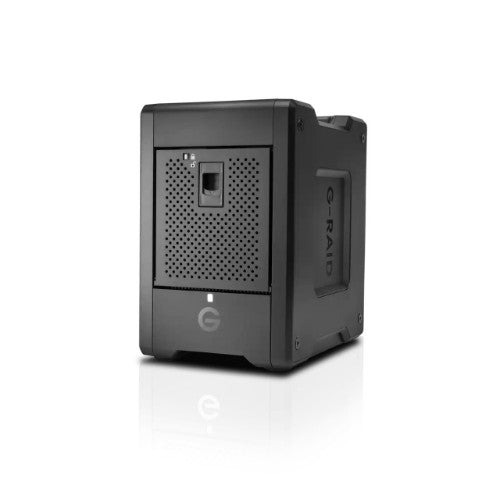

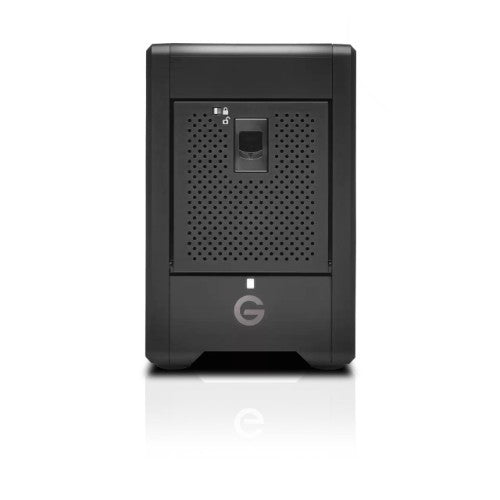

G-RAID SHUTTLE 4. Transportable, Hardware RAID PowerhouseA transportable 4-bay hardware RAID solution with Thunderbolt™ 3 (40Gbps) and USB-C™ (10Gbps) interfaces offering content professionals up to 80TB1 of massive capacity and high-powered performance for consolidated backup, super-fast access, and real-time video editing. Supports multi-stream 4K, 8K, and VR workflows, RAID 0, 1, 5, and 10 configurations, and provides transfer rates up to 640MB/s read and 800MB/s write2 in default RAID 5. Along with Ultrastar enterprise-class hard drives inside for enhanced reliability and a trusted 5-year limited warranty, the G-RAID SHUTTLE 4 is the ultimate storage solution for demanding video workflows on location and in the studio.
Ideal Capacities of 24Tb – 80TB for Demanding Production WorkflowsAvailable in capacities up to 80TB1, the G-RAID SHUTTLE 4 device delivers high performance storage to save all your favorite 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage in a single location.
Removable, Ultrastar Enterprise-class 7200RPM Hard DrivesFor all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of four (4) removable Ultrastar enterprise-class 7200RPM hard drives inside.
Up To 640MB/s sustained read speeds in RAID 5With speeds up to 640MB/s read and 800MB/s write2 in default RAID 5, the G-RAID SHUTTLE 4 device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.
Transportable DesignBuilt for easy travel between your on-site production location and to the studio for post-production, the G-RAID SHUTTLE 4 device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.
Optimized Support For Multi-Stream WorkflowsBuilt for multi-stream 4K and 8K production workflows, the G-RAID SHUTTLE 4 device offers the bandwidth to support multi camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.
Built-in Hardware RAIDFor maximum performance, the SanDisk G-RAID SHUTTLE 4 comes in RAID 5 out of the box and supports RAID 0, 1, and 10 to provide a versatile and flexible storage solution.

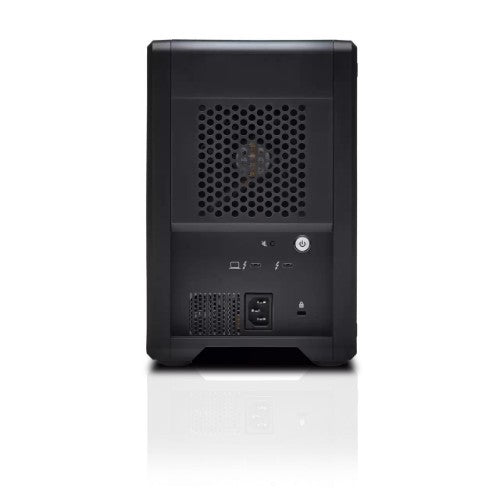

Daisy-chaining for up to 5 Additional DevicesWith dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays and more, through a single connection to your computer.
USB Power DeliveryWith support for up to 85 watts of USB Power Delivery through the USB-C™ port, this drive can charge your compatible MacBook or MacBook Pro without having to take a separate MacBook charger out of your bag.
Specifications
| Storage |
|---|
| Total installed storage capacity |
48 TB |
| Storage drives installed |
Yes |
| Installed storage drive type |
HDD |
| Supported storage drive types |
HDD |
| Number of storage drives supported |
4 |
| Maximum supported storage capacity |
80 TB |
| RAID levels |
0, 1, 5, 10, JBOD |
| Data transfer rate |
40 Gbit/s |
| HDD speed |
7200 RPM |
| Ports & interfaces |
|---|
| USB connectivity |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Thunderbolt technology |
Yes |
| Thunderbolt ports quantity |
2 |
| Thunderbolt version |
3 |
| Design |
|---|
| Device class |
Small & Medium Business |
| Chassis type |
Desktop |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Cooling |
Yes |
| Performance |
|---|
| Device class |
Small & Medium Business |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power cable current |
4 A |
| System requirements |
|---|
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 10 |
| Mac operating systems supported |
Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Weight & dimensions |
|---|
| Width |
6.85" (174 mm) |
| Depth |
9.76" (248 mm) |
| Height |
10.5" (267 mm) |
| Weight |
16.3 lbs (7.4 kg) |
| Package width |
11.6" (295 mm) |
| Package depth |
13.6" (346 mm) |
| Package height |
13.6" (346 mm) |
| Packaging data |
|---|
| Package width |
11.6" (295 mm) |
| Package depth |
13.6" (346 mm) |
| Package height |
13.6" (346 mm) |
| Packaging content |
|---|
| Cables included |
AC, Thunderbolt |
| Power cables quantity |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
