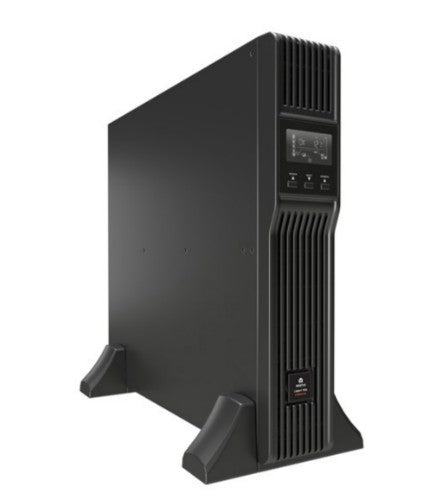

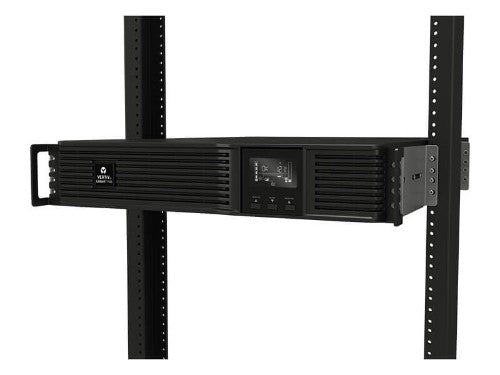

Vertiv Liebert PSI5, Line-Interactive, 1.5 kVA, 13500 W, Pure sine, 75 V, 146 V
Key Features
- LITHIUM-ION BATTERIES: Lithium-ion batteries last twice as long as traditional VRLA batteries, or longer
- LOW TOTAL COST OF OWNERSHIP: Fewer or no battery replacement over the life of the Vertiv™ Liebert® PSI5 Lithium-Ion UPS
- 5-YEAR ADVANCED REPLACEMENT WARRANTY: Vertiv™ backs this UPS with a 5-year advanced replacement warranty including battery
- LONGER RUNTIME: This 1500VA UPS offers up to 7.5 minutes of runtime at full-load and 17.7 minutes at half-load
- FASTER RECHARGES: Get 100% capacity by recharging in 2 hours or less in this rack/tower UPS
Description
Vertiv Liebert PSI5. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 13500 W. AC outlet types: NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Typical backup time at full load: 7.5 min, Typical backup time at half load: 17.7 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Width: 17.2" (438 mm), Depth: 16.2" (411 mm), Height: 3.39" (86 mm)
Specifications
| Power |
|---|
| Output power capacity |
1.5 kVA |
| Output power |
13500 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Efficiency |
97.1% |
| Emergency Power Off (EPO) |
Yes |
| Input frequency |
55/65 Hz |
| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
NEMA 5-15R |
| Power plug |
NEMA 5-15P |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Cabling technology |
10/100Base-T |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port type |
USB Type-B |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Surge protection |
Yes |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
45 dB |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
1.5 kVA |
| Output power |
13500 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Efficiency |
97.1% |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
45 dB |
| Input frequency |
55/65 Hz |
| Battery |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery recharge time |
2 h |
| Typical backup time at half load |
17.7 min |
| Typical backup time at full load |
7.5 min |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Rack capacity |
2U |
| Product colour |
Black |
| Safety |
UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3 |
| Certification |
UL 1778, c-UL, NOM, FCC Part 15, Class B |
| Cable length |
118.1" (3 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Compliance certificates |
REACH, RoHS, WEEE |
| Weight & dimensions |
|---|
| Width |
17.2" (438 mm) |
| Depth |
16.2" (411 mm) |
| Height |
3.39" (86 mm) |
| Weight |
28.4 lbs (12.9 kg) |
| Package width |
10.2" (258 mm) |
| Package depth |
22.9" (582 mm) |
| Package height |
22.4" (570 mm) |
| Package weight |
42.1 lbs (19.1 kg) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Package width |
10.2" (258 mm) |
| Package depth |
22.9" (582 mm) |
| Package height |
22.4" (570 mm) |
| Package weight |
42.1 lbs (19.1 kg) |
| Certificates |
|---|
| Safety |
UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3 |
| Certification |
UL 1778, c-UL, NOM, FCC Part 15, Class B |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
