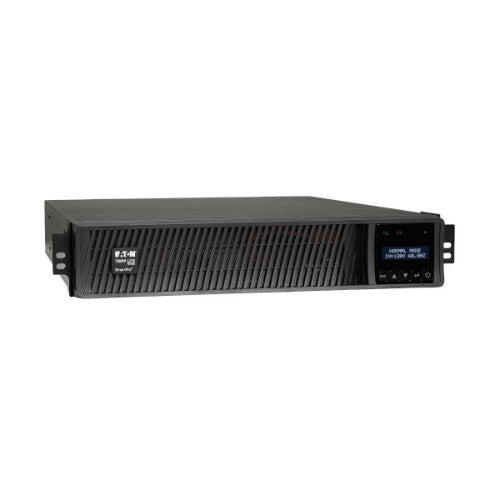

Tripp Lite SMART2200RMXL2U uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1920 W 8 AC outlet(s)

SmartPro, 1920W, 2200VA, 120V AC, 20A, LCD, 570J

Description

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

- Tripp Lite SMART2200RMXL2U line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity and extended runtime options
- Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

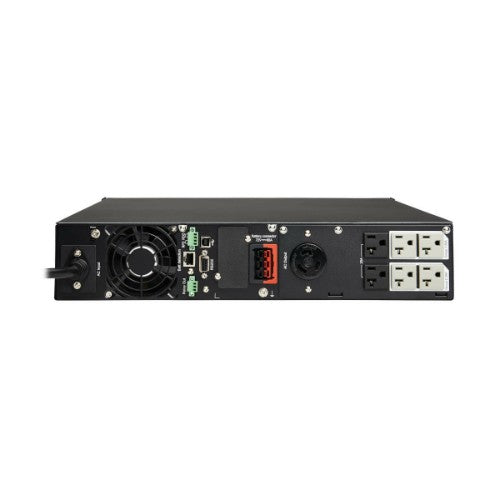

- NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently switched output load banks
- Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
- High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
- Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
- Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), Output is reduced to 1600 watts maximum with external battery packs
- External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
- Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
- LCD interface also supports a number of advanced user setup and operating preferences

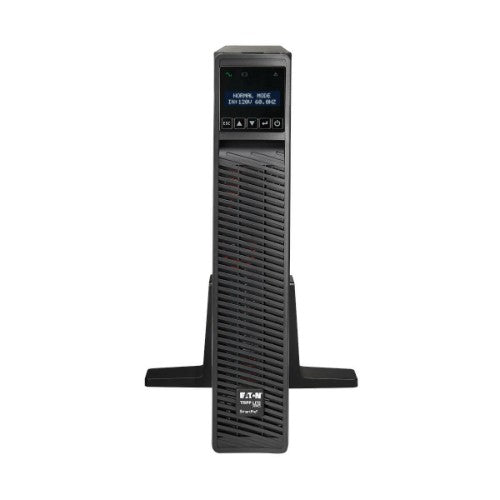

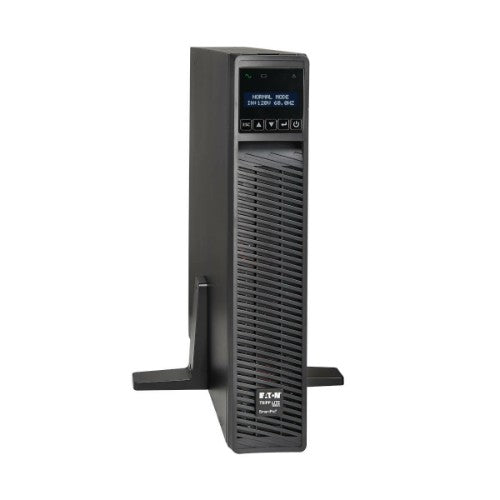

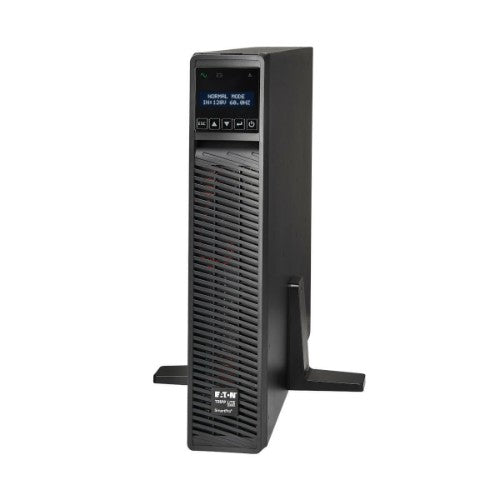

- Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
- Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
- HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

Specifications

Power
Output power capacity	2.2 kVA
Output power	1920 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	570 J
Maximum current	20 A
Emergency Power Off (EPO)	Yes
Output voltage regulation	-14 - 6%
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-20P
USB 2.0 ports quantity	1
Modem (RJ-11) ports	1
Performance
UPS topology	Line-Interactive
Surge protection	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	2.2 kVA
Country of origin	Taiwan
Output power	1920 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	570 J
Maximum current	20 A
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Output voltage regulation	-14 - 6%
Audible alarm(s)	Yes
Battery
Battery recharge time	4.5 h
Typical backup time at half load	12 min
Typical backup time at full load	4.5 min
Hot-swap battery	Yes
Battery voltage	48 V
Replacement battery cartridge	RBC94-2U
Design
Form factor	Rackmount
Country of origin	Taiwan
Rack capacity	2U
Product colour	Black
Certification	UL1778, CSA, NOM, FCC
Cable length	118.1" (3 m)
Housing material	Steel
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Technical details
Compliance certificates	RoHS
Certificates
Certification	UL1778, CSA, NOM, FCC
Compliance certificates	RoHS
Weight & dimensions
Width	17.3" (439.9 mm)
Depth	19.3" (490 mm)
Height	3.46" (87.9 mm)
Weight	57.5 lbs (26.1 kg)
Package width	24.3" (617.2 mm)
Package depth	21.6" (548.6 mm)
Package height	8.5" (215.9 mm)
Package weight	76.1 lbs (34.5 kg)
Packaging data
Package width	24.3" (617.2 mm)
Package depth	21.6" (548.6 mm)
Package height	8.5" (215.9 mm)
Package weight	76.1 lbs (34.5 kg)
Logistics data
Country of origin	Taiwan
Products per master (outer) case	1 pc(s)
Master (outer) case width	24.3" (617.2 mm)
Master (outer) case length	21.6" (548.6 mm)
Master (outer) case height	8.5" (215.9 mm)
Master (outer) case gross weight	76.1 lbs (34.5 kg)
Other features
Non-operating relative humidity (non-condensing)	0 - 95%
