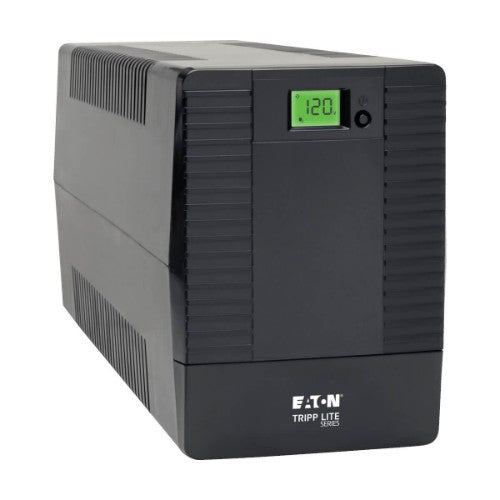

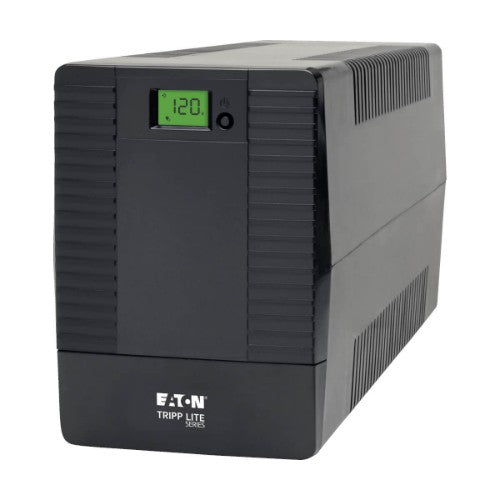

Tripp Lite SMART1500TSU uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1200 W 8 AC outlet(s)

Tripp Lite SMART1500TSU, Line-Interactive, 1.44 kVA, 1200 W, Pure sine, 110 V, 120 V

Description

Tripp Lite SMART1500TSU. UPS topology: Line-Interactive, Output power capacity: 1.44 kVA, Output power: 1200 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 1.5 min, Typical backup time at half load: 6 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Cables included: Serial, USB cable

Specifications

Power
Output power capacity	1.44 kVA
Output power	1200 W
Input operation voltage (min)	110 V
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	12 A
Power factor	0.83
Output frequency	50/60 Hz
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB port	Yes
Serial interface	Yes
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Performance
UPS topology	Line-Interactive
Number of input phases	1
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Network, Telephone
Waveform	Pure sine
Automatic Voltage Regulation (AVR)	Yes
Noise level	50 dB
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output power capacity	1.44 kVA
Country of origin	China
Number of input phases	1
Audible alarm modes	Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
Output power	1200 W
Input operation voltage (min)	110 V
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	12 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Network, Telephone
Waveform	Pure sine
Power factor	0.83
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Noise level	50 dB
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Typical backup time at half load	6 min
Typical backup time at full load	1.5 min
Cold start	Yes
Design
Form factor	Tower
Country of origin	China
Product colour	Black
Cable length	59.1" (1.5 m)
Cooling type	Active
LED indicators	Yes
Built-in fan	Yes
Housing material	Acrylonitrile butadiene styrene (ABS)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Technical details
Output frequency	50/60 Hz
Packaging content
Cables included	Serial, USB cable
Manual	Yes
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Width	5.5" (139.7 mm)
Depth	15" (381 mm)
Height	7.5" (190.5 mm)
Weight	32.2 lbs (14.6 kg)
Package width	9.3" (236.2 mm)
Package depth	19.5" (495.3 mm)
Package height	11.7" (297.2 mm)
Package weight	33.3 lbs (15.1 kg)
Packaging data
Cables included	Serial, USB cable
Manual	Yes
Package width	9.3" (236.2 mm)
Package depth	19.5" (495.3 mm)
Package height	11.7" (297.2 mm)
Package weight	33.3 lbs (15.1 kg)
Logistics data
Country of origin	China
Products per master (outer) case	1 pc(s)
Master (outer) case width	9.3" (236.2 mm)
Master (outer) case length	19.5" (495.3 mm)
Master (outer) case height	11.7" (297.2 mm)
Master (outer) case gross weight	33.3 lbs (15.1 kg)
