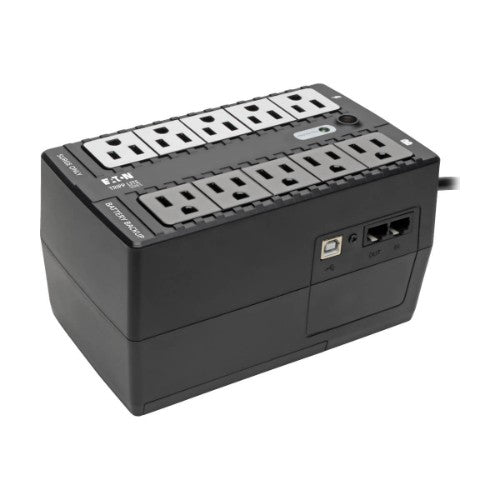

Tripp Lite INTERNET550U uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 300 W 10 AC outlet(s)

Tripp Lite INTERNET550U, Standby (Offline), 0.55 kVA, 300 W, Pure sine, 110 V, 120 V

Description

Tripp Lite INTERNET550U. UPS topology: Standby (Offline), Output power capacity: 0.55 kVA, Output power: 300 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 10 AC outlet(s). Typical backup time at full load: 1.2 min, Typical backup time at half load: 5 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Compliance certificates: RoHS

Specifications

Power
Output power capacity	0.55 kVA
Output power	300 W
Input operation voltage (min)	110 V
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	15 A
Output frequency	50/60 Hz
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.8" (1.52 m)
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB port	Yes
USB 2.0 ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	2
Performance
UPS topology	Standby (Offline)
Number of input phases	1
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Network, Telephone
Waveform	Pure sine
LED indicators	Yes
Audible alarm(s)	Yes
Features
UPS topology	Standby (Offline)
Output power capacity	0.55 kVA
Country of origin	China
Number of input phases	1
Output power	300 W
Input operation voltage (min)	110 V
Input operation voltage (max)	120 V
Output operation voltage (min)	110 V
Output operation voltage (max)	120 V
Surge energy rating	316 J
Maximum current	15 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL), Network, Telephone
Waveform	Pure sine
Output frequency	50/60 Hz
Audible alarm(s)	Yes
Input frequency	50/60 Hz
Battery
Typical backup time at half load	5 min
Typical backup time at full load	1.2 min
Cold start	Yes
Design
Form factor	Tower
Country of origin	China
Product colour	Black
Cable length	59.8" (1.52 m)
LED indicators	Yes
Housing material	Acrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Certificates
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Weight & dimensions
Width	4.33" (110 mm)
Depth	7.28" (184.9 mm)
Height	4.13" (104.9 mm)
Weight	3.97 lbs (1.8 kg)
Package width	5.67" (144 mm)
Package depth	10.9" (275.8 mm)
Package height	7.36" (186.9 mm)
Package weight	4.92 lbs (2.23 kg)
Packaging data
Cables included	USB cable
Package width	5.67" (144 mm)
Package depth	10.9" (275.8 mm)
Package height	7.36" (186.9 mm)
Package weight	4.92 lbs (2.23 kg)
Logistics data
Country of origin	China
Products per master (outer) case	8 pc(s)
Master (outer) case width	11.3" (286 mm)
Master (outer) case length	23.3" (591.8 mm)
Master (outer) case height	15.5" (394 mm)
Master (outer) case gross weight	39.5 lbs (17.9 kg)
Master (outer) case GTIN (EAN/UPC)	10037332211023
