16-Port 4K HDMI/USB KVM Switch - 4K 60 Hz Video/Audio, USB Peripheral Sharing, 1U Rack-Mount, TAA
Key Features
- Supports true 4K resolutions up to 4096 x 2160 (@ 60 Hz) for crystal-clear video
- Cascade up to 2 levels to control as many as 256 computers from a single console
- 2-port USB 3.2 Gen 1 hub lets you share USB peripherals among connected computers
- Push buttons, hotkeys and on-screen display allow easy toggling between computers
- Widely compatible KVM switch works with Windows, Mac and Linux operating systems
Description
Connects 16 HDMI-Enabled Devices to a Single 4K Monitor, Keyboard and MouseThis rack-mount KVM switch lets you access, control, boot and reboot up to 16 computers or other devices with 4K HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to 16 4K media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All 16 computers share one 4K HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Connect up to 256 Computers to One Original ConsoleYou can also cascade up to two levels of B024-H4U16 KVM switches, allowing centralized access to as many as 256 computers using a single monitor, keyboard and mouse.
Switching Between Computers Is Fast and EasyUse the front-panel push buttons, hotkey commands or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

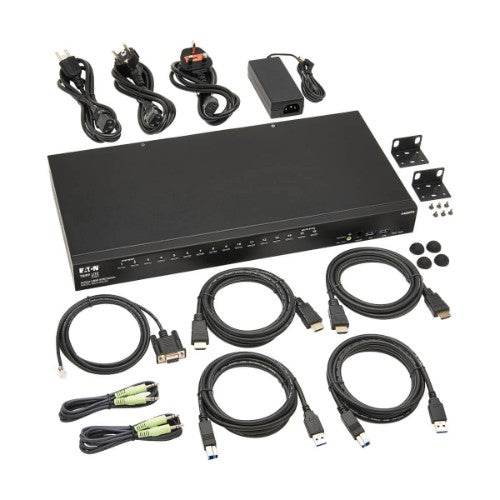

Cables Are Included for Fast and Simple SetupConnect your 4K HDMI monitor, keyboard, mouse, and speakers to the switch’s console ports. Then, use the included 4K HDMI/USB KVM cable kits to connect your computers to the KVM switch. The plug-and-play B024-H4U16 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, Mac, Linux, UNIX and Novell.
USB Hub Lets You Share Peripherals between ComputersThe built-in USB 3.2 Gen 1 hub allows you to share two USB-A peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. Both USB ports support data transfer speeds up to 5 Gbps. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with previous USB generations. Green LEDs indicate which computer is using the connected USB device.
Transmits True 4K Video and Digital AudioThe B024-H4U16 supports Ultra HD video resolutions up to 4096 x 2160 at 60 Hz with 2.1-channel surround sound audio. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jack has priority over the rear-panel jacks.
Stack Units to Expand Your Workstation and Enhance Your ProductivityStack as many as eight B024-H4U16 KVM switches to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation may offer dual-display, triple-display, quad-display or multi-display scenarios, up to eight stages.
Designed for Convenient Mounting with Included HardwareThe heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply comes with international power cords for connecting to an AC power source.
TAA-Compliant for GSA Schedule PurchasesThe B024-H4U16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| Ports & interfaces |
|---|
| Number of computers controlled |
16 |
| Keyboard port type |
USB |
| USB connector type |
USB Type-A, USB Type-B |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| HDMI version |
1.4 |
| Headphone outputs |
18 |
| HDMI ports quantity |
17 |
| DC-in jack |
Yes |
| Console USB ports quantity |
4 |
| Console ports |
3.5mm headphone, HDMI, USB A |
| USB hub |
Yes |
| USB 2.0 Type-B ports quantity |
16 |
| USB 2.0 Type-A hub ports quantity |
2 |
| Cable length |
47.2" (1.2 m) |
| HDCP |
Yes |
| Performance |
|---|
| HD type |
UXGA |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Number of users |
4 user(s) |
| HDCP |
Yes |
| Audio channels |
2.1 |
| Design |
|---|
| Product colour |
Black |
| Cable length |
47.2" (1.2 m) |
| Rack mounting |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
C-Tick; CCC; CE; China RoHS; DOE; GS; LPS; RoHS; TUV; UL; WEEE; cUL, NOM (Mexico), RoHS; CE (Europe); REACH; WEEE; FCC (USA) |
| Rack capacity |
1U |
| Housing material |
Metal |
| Country of origin |
Taiwan |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Output voltage |
12 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
1.4 A |
| Power source |
DC |
| Output current |
5 A |
| External power adapter |
Yes |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
UXGA |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| Technical details |
|---|
| USB hub |
Yes |
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE |
| Features |
|---|
| Country of origin |
Taiwan |
| Sustainability |
|---|
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
8.44" (214.3 mm) |
| Depth |
1.73" (44 mm) |
| Height |
17" (432.4 mm) |
| Weight |
7.8 lbs (3.54 kg) |
| Package width |
19.6" (499.1 mm) |
| Package depth |
12.8" (324.1 mm) |
| Package height |
5.24" (133.1 mm) |
| Package weight |
12.4 lbs (5.62 kg) |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
19.6" (499.1 mm) |
| Package depth |
12.8" (324.1 mm) |
| Package height |
5.24" (133.1 mm) |
| Package weight |
12.4 lbs (5.62 kg) |
| Packaging content |
|---|
| Rubber feet |
Yes |
| Rack mount kit |
Yes |
| Cables included |
DC, KVM |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Package type |
Box |
| Certificates |
|---|
| Certification |
C-Tick; CCC; CE; China RoHS; DOE; GS; LPS; RoHS; TUV; UL; WEEE; cUL, NOM (Mexico), RoHS; CE (Europe); REACH; WEEE; FCC (USA) |
| Other features |
|---|
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Country of origin |
Taiwan |
| Master (outer) case width |
20.3" (515.1 mm) |
| Master (outer) case length |
13.3" (338.1 mm) |
| Master (outer) case height |
6.1" (154.9 mm) |
| Master (outer) case gross weight |
14.7 lbs (6.68 kg) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
8471.80.1000 |
