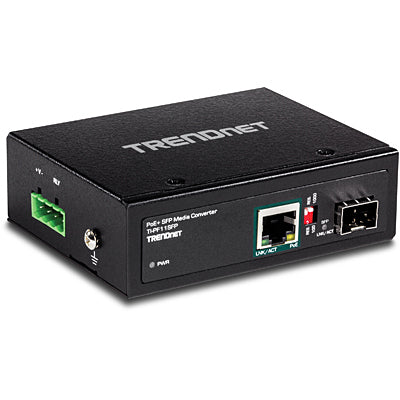

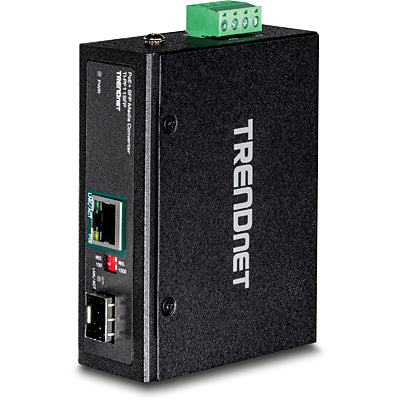

Trendnet TI-PF11SFP network media converter 2000 Mbit/s 0.56 nm Black

Industrial SFP to Gigabit PoE+ Media Converter

Key Features

• Hardened IP30 rated SFP to Gigabit PoE+ converter
• SFP port accommodates Multi or Single Mode fiber
• Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
• Provides up to 30W for PoE and PoE+ compliant devices
• Includes DIN-rail and wall mounts
• Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
• Dual power inputs with overload current protection
• NDAA / TAA compliant

Description

TRENDnet’s Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.

Industrial Applications
Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

PoE+ Output
Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.

Extreme Environments
Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.

Network Ports

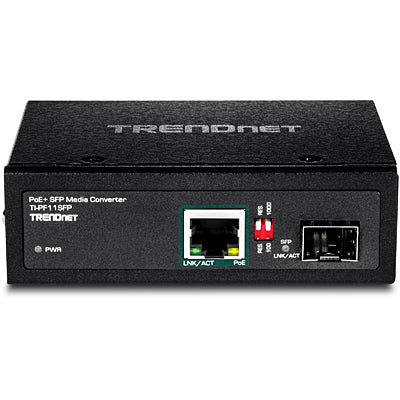

1 x Gigabit PoE+ Ethernet port and 1 x SFP slot

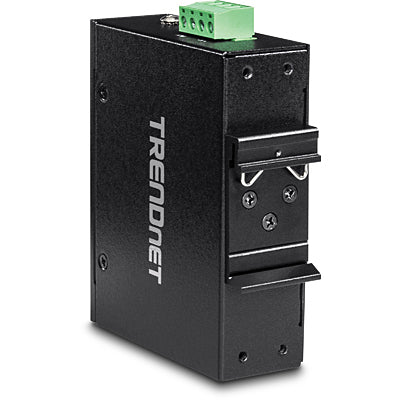

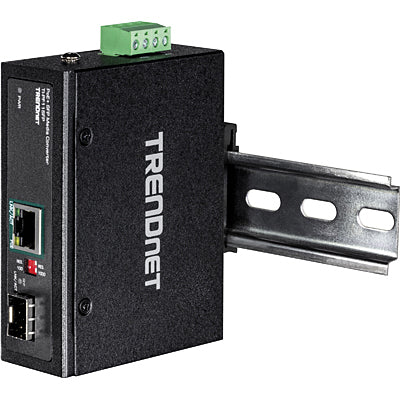

DIN-Rail/Wall Mounts

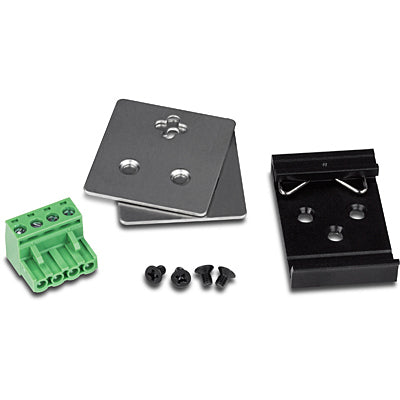

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity
2Gbps switching capacity

Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures
Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)

Electromagnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications
Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

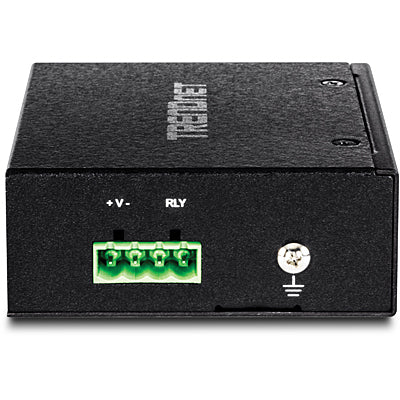

Grounding Point
Grounding point protects equipment from external electrical surges

Specifications

Network
Maximum data transfer rate	2000 Mbit/s
Store-and-forward	Yes
Auto-negotiation	Yes
Jumbo frames	9
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Fiber optic connector	SFP
Performance
Wavelength	0.56 nm
Buffer size	1000 KB
Mean time between failures (MTBF)	500000 h
Store-and-forward	Yes
Auto-negotiation	Yes
Jumbo frames support	Yes
Features
Internal	No
DIN rail mounting	Yes
LED indicators	Yes
International Protection (IP) code	IP30
Housing material	Aluminum
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP
Power over Ethernet plus (PoE+) ports quantity	1
Power
Input voltage	48 - 56 V
Power consumption (typical)	2 W
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	30 W
Weight & dimensions
Width	1.26" (32 mm)
Depth	3.19" (81 mm)
Height	4.09" (104 mm)
Weight	5.43 oz (154 g)
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Packaging content
Quick installation guide	Yes
Design
Internal	No
DIN rail mounting	Yes
LED indicators	Yes
International Protection (IP) code	IP30
Housing material	Aluminum
Product colour	Black
Certification	CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN60950-1
Certificates
Certification	CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN60950-1
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
