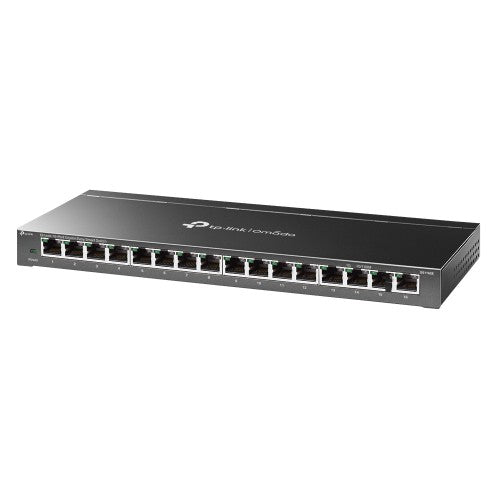

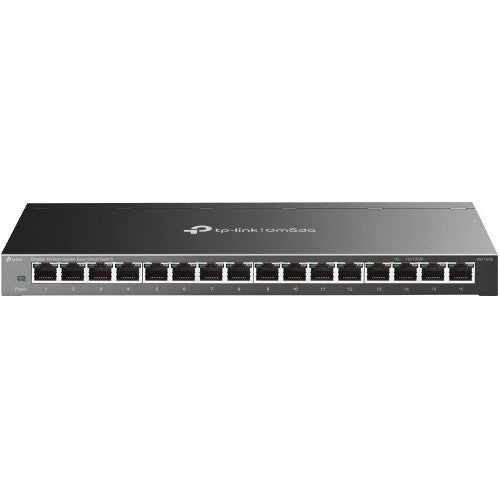

16-Port RJ45 Gigabit Easy Smart Switch, L2, 32Gbps, Fanless, 9.19W (220V/50Hz)
Key Features
- 16× 10/100/1000Mbps RJ45 ports
- Plug and play for instant connectivity
- Simple configuration via web-based user interface and management utility*
- Durable metal casing of superior quality and professional appearance
- Green technology reduces power consumption
- Note: This Omada Easy Smart switch does not support Omada SDN central management
Description
Omada 16Port Gigabit Easy Smart SwitchPORT: 16 Gigabit RJ45 PortsSPEC: Desktop Steel CaseFEATURE: MTU/Port/Tagbased VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
AC-in jack |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs |
32 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Virtual LAN features |
Port-based VLAN, Tagged VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Jumbo frames |
9 |
| Store-and-forward |
Yes |
| Number of queues |
4 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4.1 MB |
| Forwarding rate |
23.81 Mpps |
| Number of VLANs |
32 |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Queue scheduling algorithms |
Priority queuing (PQ) |
| Design |
|---|
| Product colour |
Black |
| Reset button |
Yes |
| LED indicators |
Yes |
| Housing material |
Steel |
| Performance |
|---|
| Fanless |
Yes |
| Packet buffer memory |
4.1 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
9.19 W |
| Power source |
AC |
| Power connector |
AC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
31.36 BTU/h |
| Virtual LAN features |
|---|
| Number of VLANs |
32 |
| VLAN support |
Yes |
| Virtual LAN features |
Port-based VLAN, Tagged VLAN |
| Weight & dimensions |
|---|
| Width |
10.6" (268 mm) |
| Depth |
4.4" (111.7 mm) |
| Height |
1" (25.4 mm) |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
Power |
| Rubber feet |
Yes |
| Packaging data |
|---|
| Rubber feet |
Yes |
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
Power |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
