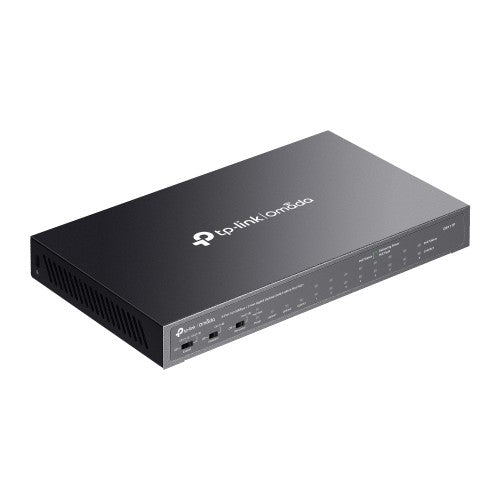

8-Port 10/100Mbps + 3-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+, 7.6 Gbps, Fanless, 77.32 W
Key Features

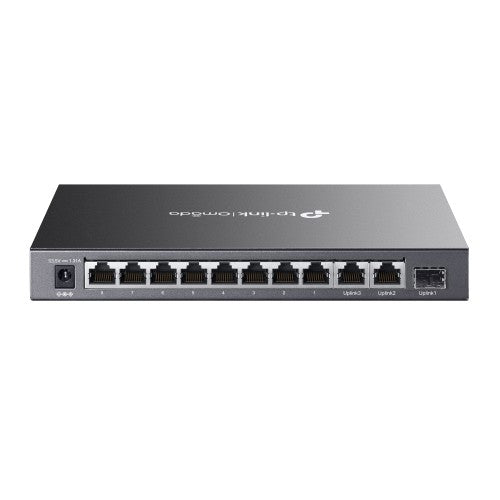

- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports
- Up to 250 m (802 ft) data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and Play. No configuration or central management required
Description
Omada 8Port 10/100Mbps + 3Port Gigabit Desktop Switch with 8Port PoE+ PORT: 8 10/100 Mbps PoE+ Ports, 2 Gigabit NonPoE Ports, 1 Gigabit SFP Slots SPEC: 802.3at / af, 65 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Isolation Mode, PoE Auto Recovery, Plug and Play
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| SFP module slots quantity |
1 |
| Fast Ethernet (copper) ports quantity |
8 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Power connector |
DC-in jack |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
7.6 Gbit/s |
| Jumbo frames |
16 |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Forwarding rate |
5.6544 Mpps |
| Design |
|---|
| Product colour |
Black |

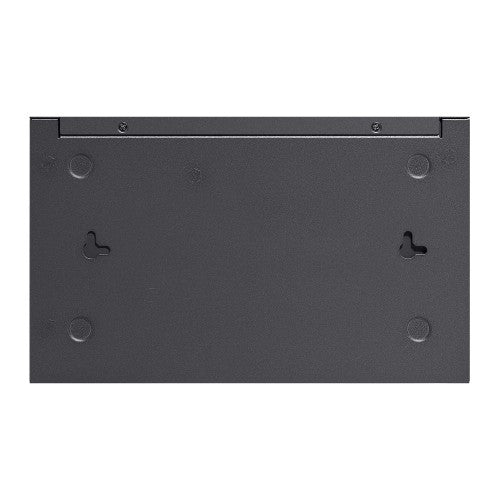

| Wall mountable |
Yes |
| LED indicators |
Activity, Link, PoE, Power |
| Housing material |
Metal |
| Performance |
|---|
| Fanless |
Yes |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| Power consumption (max) |
77.32 W |
| Input current |
1.31 A |
| DC input voltage |
53.5 V |
| Power source |
DC |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
65 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
263.7 BTU/h |
| Weight & dimensions |
|---|
| Width |
8.23" (209 mm) |
| Depth |
4.96" (126 mm) |
| Height |
1.02" (26 mm) |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
Power |
| Rubber feet |
Yes |
| Packaging data |
|---|
| Rubber feet |
Yes |
| User guide |
Yes |
| Cables included |
Power |
| Technical details |
|---|
| Compliance certificates |
CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Certificates |
|---|
| Compliance certificates |
CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Other features |
|---|
| Ethernet LAN data rates |
10,100 Mbit/s |
