2.4 GHz (574 Mbps), 5 GHz (2402 Mbps), 6GHz (2402 Mbps), 802.11a/b/g/n/ac/ax, 30.5 × 14.8 × 111.7 mm
Key Features
- Lighting-Fast WiFi 6E - Congestion-free speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Tri-Band Wireless - 2.4 GHz, 5 GHz and 6 GHz bands for flexible connectivity
- Broader Coverage - Connect to your WiFi from wherever in your home with high-gain antennas and Beamforming
- Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC
- Improved Security - WPA3 provides the latest security enhancements for personal password protection
- SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0
Description
FASTER. BROADER.

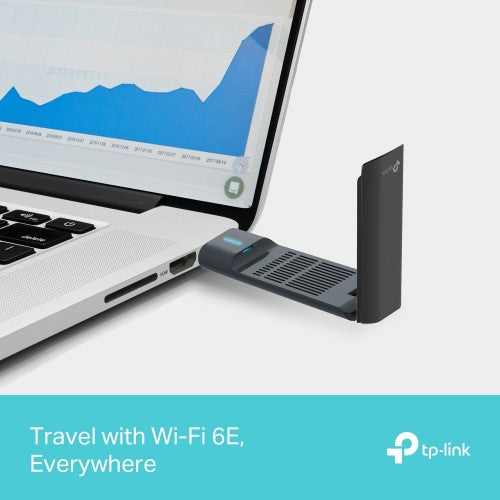

UNSTOPPABLE.AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter
WiFi 6E: A Freer and Faster FutureWiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Accelerate your PC with full blood- Tri-Band available, less congestion
- More spectrum, lower latency
- Wider channels, more throughput
-

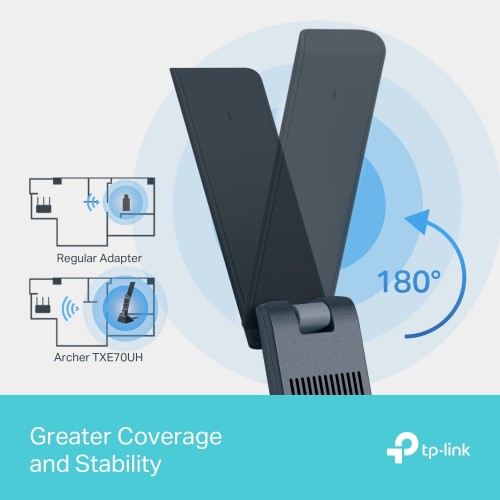

Greater Coverage
and StabilityThe multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less CongestionMU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer SpeedsExperience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TXE70UH ideal for HD streaming, online gaming and large file downloads.

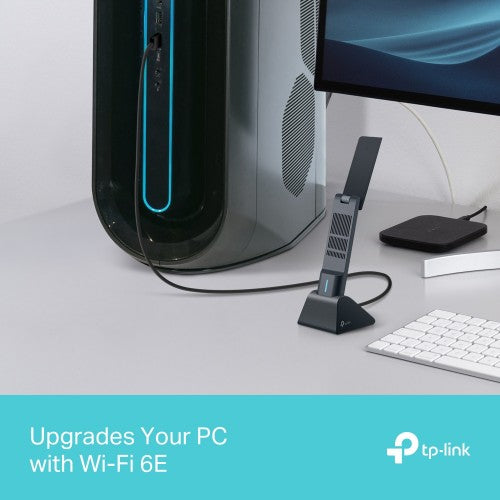

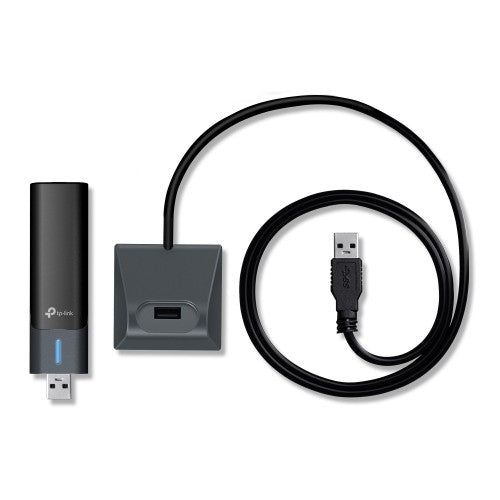

Easy Use with a Flexible DesignA 1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TXE70UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
Setup Made Easy
TXE70UH comes with its driver pre-loaded. Just plug and install.
Next-Gen Security
WPA3 encryption protects your PC from brute-force attacks, keeping your personal data safe.
Operating Systems
Works with Windows 11/10
Specifications
| Ports & interfaces |
|---|
| Internal |
No |
| Connectivity technology |
Wired & Wireless |
| Host interface |
USB |
| Interface |
WLAN |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Bandwidth |
|---|
| Maximum data transfer rate |
5400 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rates supported |
11,54,300,400,574,1732,2402 Mbit/s |
| Antenna |
|---|
| Antenna |
Yes |
| Frequency range |
2.4 - 6 GHz |
| Network |
|---|
| Maximum data transfer rate |
5400 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN data transfer rates supported |
11,54,300,400,574,1732,2402 Mbit/s |
| Security algorithms |
WEP, WPA, WPA2, WPA2-PSK, WPA3 |
| Frequency range |
2.4 - 6 GHz |
| Design |
|---|
| Internal |
No |
| Product colour |
Black |
| Antenna |
Yes |
| LED indicators |
Yes |
| Component for |
PC/Laptop |
| Antenna design |
Internal |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
1.2" (30.5 mm) |
| Depth |
0.583" (14.8 mm) |
| Height |
4.4" (111.7 mm) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB |
| Performance |
|---|
| Security algorithms |
WEP, WPA, WPA2, WPA2-PSK, WPA3 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB |
