2x 10/100/1000 Mbps RJ45, 1x USB 3.0, 294x180x44 mm
Key Features
- Centralized Management: Supports up to 500 Omada access points, 100 Omada routers, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs†
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability
- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance
- Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance
Description
Hybrid Cloud Management for Maximum ConvenienceSupports remotely or locally centralized management for up to 500 Omada access points, 100 Omada gateways, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs*.

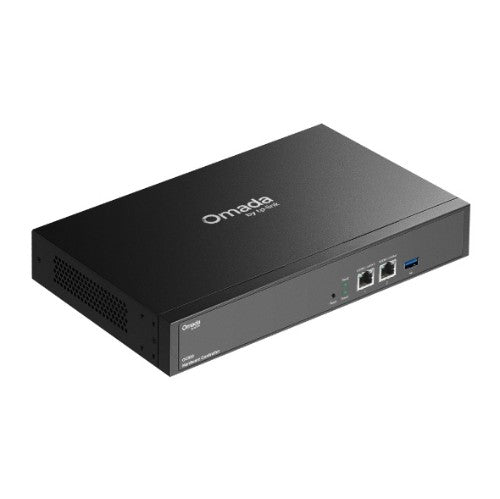

Industry-Leading Hardware DesignEquipped with an advanced design and the latest chipset, the Omada OC300 delivers more than enough processing power to support massive network management—while its enterprise-grade reliability ensures uninterrupted, 24/7 operation under heavy loads. Rackmount/desktop design benefits easier and flexible installation.
Specifications
| Design |
|---|
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
| Rack capacity |
1U |
| Product colour |
Black |
| Performance |
|---|
| Built-in processor |
Yes |
| Number of processors installed |
1 |
| Internal memory type |
DDR4 |
| Internal memory |
2000 MB |
| Flash memory |
2 MB |
| Control display unit |
No |
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| Certification |
CE, FCC, RoHS |
| Rack capacity |
1U |
| Product colour |
Black |
| Protocols |
|---|
| Supported protocols |
Routing/NAT/Session Limit/Bandwidth Control
VPN (IPSec/L2TP/PPTP/OpenVPN)
RADIUS (Authentication/MAC Auth/Accounting)
802.1x |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| VPN support |
VPN (IPSec/L2TP/PPTP/OpenVPN) |
| Security |
|---|
| VPN support |
VPN (IPSec/L2TP/PPTP/OpenVPN) |
| Security algorithms |
SNMP, SSH |
| MAC address filtering |
Yes |
| Network address translation (NAT) |
Yes |
| Access Control List (ACL) |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Management features |
|---|
| Web-based management |
Yes |
| Traffic statistics |
Yes |
| Syslog |
Yes |
| Power |
|---|
| Power consumption (typical) |
9 W |
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
| Power consumption (max) |
14.8 W |
| Weight & dimensions |
|---|
| Width |
11.6" (294 mm) |
| Height |
1.73" (44 mm) |
| Depth |
7.09" (180 mm) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
LAN (RJ-45) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Technical details |
|---|
| Built-in processor |
Yes |
| Number of processors installed |
1 |
| Indication |
|---|
| LED indicators |
Yes |
| Memory |
|---|
| Internal memory type |
DDR4 |
| Internal memory |
2000 MB |
| Flash memory |
2 MB |
| Display |
|---|
| Control display unit |
No |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Features |
|---|
| Built-in processor |
Yes |
| Number of processors installed |
1 |
