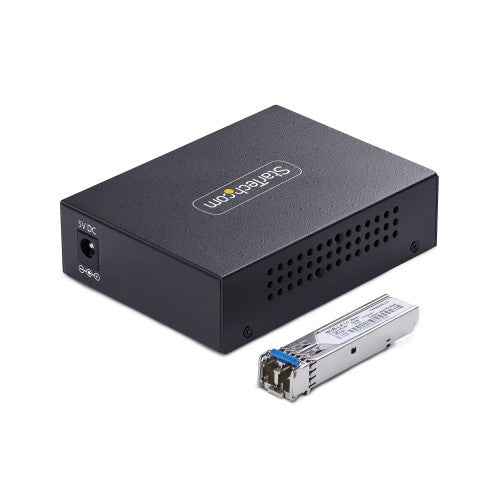

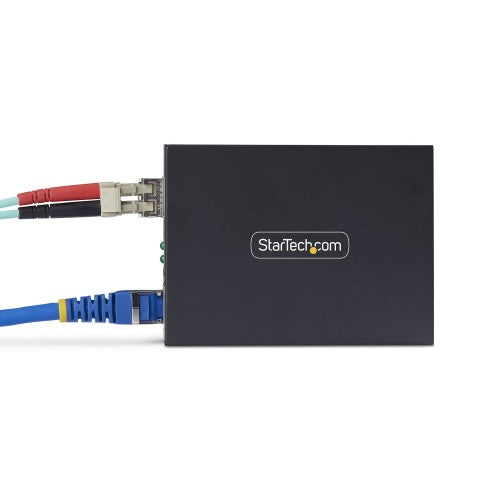

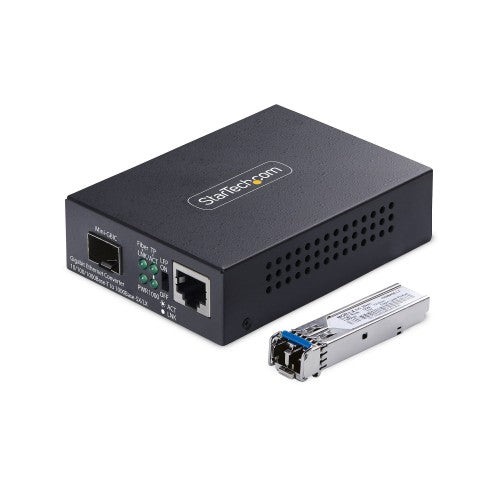

StarTech Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 20km - TAA
Key Features
-
Extend Ethernet Over Extraordinary Distances: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode LC fiber, up to 20km (12.4mi); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
-
Reliable Performance & Diagnostics: Compatible with 1000BASE-T (IEEE 802.3ab) and 1000BASE-LX (IEEE 802.3z); Supports full/half duplex, 9K jumbo frames, auto-negotiation, and auto MDI/MDI-X; DIP switch enables Link Fault Passthrough (LFP) with LLCF/LLR
-
Durable, Compact Design: All-metal chassis provides strong shielding and long-term durability, while the compact size fits easily into tight spaces; Built-in LED indicators make it easy to monitor link, power, and activity at a glance
-
Flexible Mounting: Use as a compact standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) for clean, professional integration into structured wiring closets, data centers, or server rooms
-
The IT Pro's Choice: Engineered for edge, on-prem, and aerospace/defense applications requiring compliant connectivity; TAA certified and lab-tested for mission-critical reliability and backed by free lifetime 24/5 multilingual technical support
Description
Convert and extend a Gigabit Ethernet connection up to 20km (12.4 miles) using single-mode LC fiber cable.
This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 20 km (12.4 mi) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.
Built for Versatility and PerformanceConvert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.

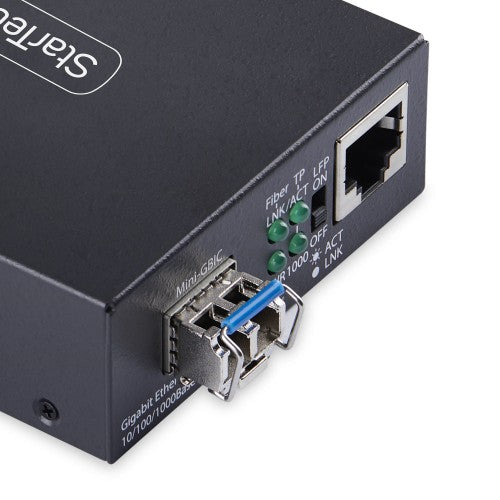

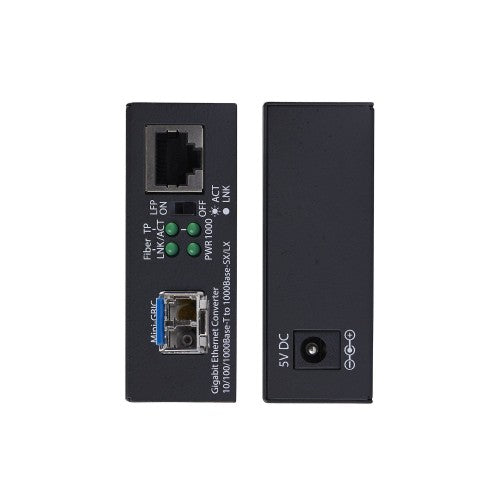

Smart Diagnostics and Rugged DesignBuilt with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.

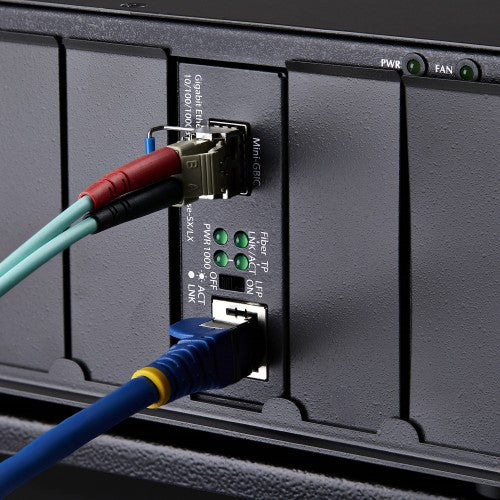

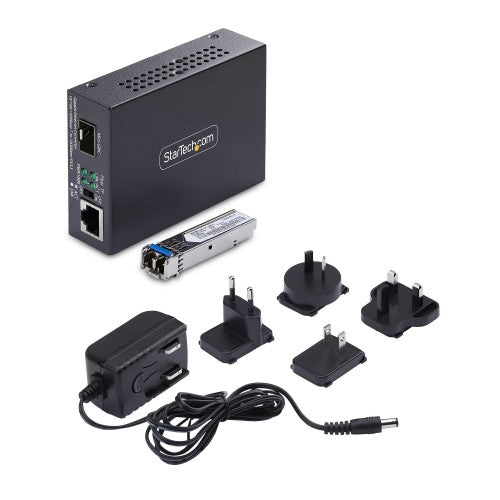

Flexible Installation for Any Network SetupDeploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets.
Specifications
| Network |
|---|
| Maximum data transfer rate |
2000 Mbit/s |
| Flow control support |
No |
| Auto-negotiation |
Yes |
| Jumbo frames |
9000 |
| Converter input interface |
10Base-T, 100Base-TX, 1000Base-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Jumbo frames support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Duplex system |
Full, Half |
| Converter output interface |
1000Base-LX |
| Auto MDI/MDI-X |
Yes |
| Link Fault Pass-through (LFP) |
Yes |
| Fiber optic connector |
LC |
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
787401.6" (20000 m) |
| Fiber mode structure |
Single-mode |
| Wavelength-division multiplexing (WDM) |
No |
| Mean time between failures (MTBF) |
50000 h |
| Flow control support |
No |
| Auto-negotiation |
Yes |
| Jumbo frames support |
Yes |
| Features |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
LC |
| DC-in jack |
Yes |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Input current |
0.4 A |
| Output voltage |
5 V |
| Output current |
2 A |
| Power consumption (typical) |
4.6 W |
| External power adapter |
Yes |
| Power over Ethernet (PoE) |
No |
| Weight & dimensions |
|---|
| Width |
3.7" (94 mm) |
| Depth |
2.76" (70 mm) |
| Height |
3.7" (94 mm) |
| Package width |
5.24" (133 mm) |
| Package depth |
11" (280 mm) |
| Package height |
2.6" (66 mm) |
| Package weight |
11.6 oz (328 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
|---|
| AC adapter included |
Yes |
| User guide |
Yes |
| Packaging data |
|---|
| Package width |
5.24" (133 mm) |
| Package depth |
11" (280 mm) |
| Package height |
2.6" (66 mm) |
| Package weight |
11.6 oz (328 g) |
| Design |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Logistics data |
|---|
| Master (outer) case width |
14.2" (360 mm) |
| Master (outer) case length |
22.8" (580 mm) |
| Master (outer) case height |
12" (305 mm) |
| Products per master (outer) case |
20 pc(s) |
