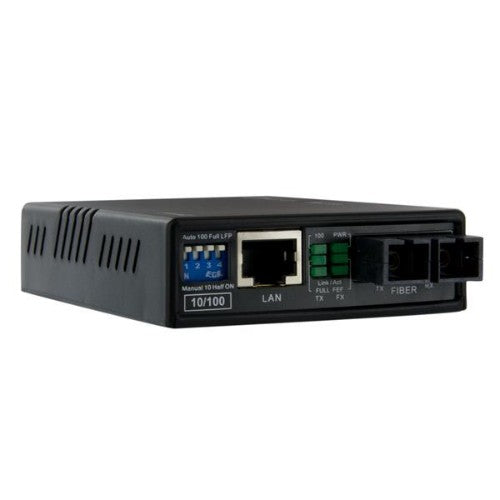

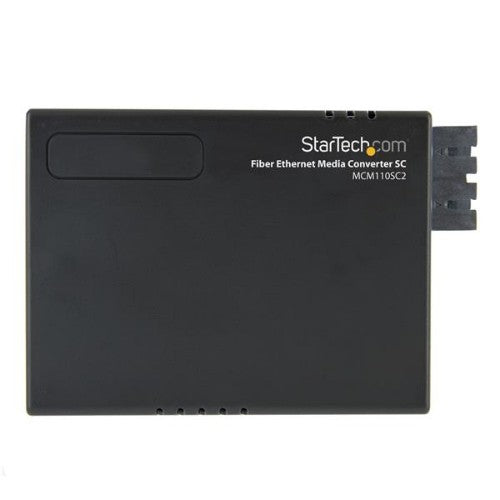

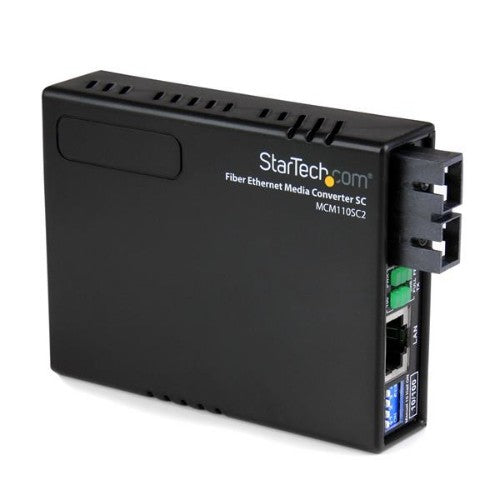

StarTech Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA
Key Features
-
Enable Long-Range Network Connectivity: Convert 10/100Mbps Ethernet to multi-mode SC fiber and extend up to 1.2mi (2km), delivering secure, interference-resistant links for edge, industrial, and remote sites where copper falls short
-
Deploy Anywhere with Minimal Setup: Compact media converter installs in tight spaces, enabling fast integration into data centers or server rooms; TAA compliant for procurement standards; Does not work with MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS
-
Configurable DIP Switches: Plug-and-play media converter auto-negotiates across networks or uses DIP switches to force speed, duplex, and link-fault passthrough settings, reducing mismatches, isolating faults, and accelerating deployments
-
Deploy Efficiently in Compact, Power-Sensitive Spaces: Operates at just 2.4W with 12V DC input via included power adapter or an optional chassis power supply, supporting 32°F to 122°F (0°C to 50°C) environments; Does not support PoE
-
The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Specifications
| Network |
|---|
| Maximum data transfer rate |
100 Mbit/s |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Jumbo frames |
9000 |
| Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3u |
| Jumbo frames support |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Fiber optic connector |
SC |
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
78740.2" (2000 m) |
| Fiber mode structure |
Multi-mode |
| Wavelength-division multiplexing (WDM) |
No |
| Mean time between failures (MTBF) |
65000 h |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Jumbo frames support |
Yes |
| Features |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Housing material |
Plastic |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SC |
| DC-in jack |
Yes |
| Power |
|---|
| Input voltage |
115 V |
| Output voltage |
12 V |
| Output current |
0.2 A |
| Power plug type |
Type M |
| Power over Ethernet (PoE) |
No |
| Weight & dimensions |
|---|
| Width |
2.95" (75 mm) |
| Depth |
3.74" (95 mm) |
| Height |
0.787" (20 mm) |
| Weight |
3.19 oz (90.5 g) |
| Package width |
2.48" (63 mm) |
| Package depth |
5.83" (148 mm) |
| Package height |
5.71" (145 mm) |
| Package weight |
14.1 oz (400 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |

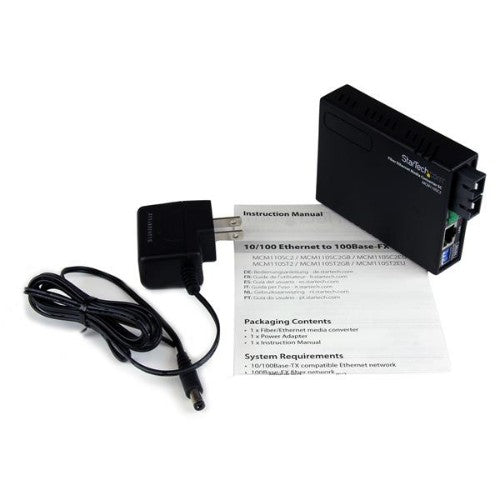

| Packaging content |
|---|
| AC adapter included |
Yes |
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
2.48" (63 mm) |
| Package depth |
5.83" (148 mm) |
| Package height |
5.71" (145 mm) |
| Package weight |
14.1 oz (400 g) |
| Design |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Housing material |
Plastic |
| Product colour |
Black |
| Certification |
CE, FCC |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Technical details |
|---|
| Compliance certificates |
RoHS |
