StarTech.com MCM10GSFP2 network media converter 10000 Mbit/s Multi-mode, Single-mode Black

StarTech 10GbE Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-X SFP+, Single-Mode / Multi-Mode, 16K Jumbo Frames - TAA

Key Features

• Upgrade Networks with Copper-to-Fiber Conversion: Convert 10GBASE-T copper (RJ-45) to 10G fiber through an open SFP+ slot; Supports multi-mode or single-mode transceivers, for flexible deployment and extended reach
• Flexible Mounting: Use as a compact standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) for clean, professional integration into structured wiring closets, data centers, or server rooms
• Reliable Performance at 10Gbps Speed: Supporting 10GBASE-T, 10GBASE-X, Jumbo Frames (up to 16K), full-duplex flow control, and auto MDI/MDI-X; Plug-and-play operation across high-speed 10G network links
• Deploy Efficiently in Compact, Power-Sensitive Spaces: Consumes only 5.3W (typical) via 5V DC input from included power adapter or chassis power supply and rated for 0°C to 50°C operating environments; Does not support PoE
• The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime multi-lingual technical assistance

Description

Connect a Gigabit copper network to a Gigabit fiber network using an SFP+ transceiver of your choice.

High-Speed Copper-to-Fiber Conversion

This compact 10G media converter enables seamless copper-to-fiber connectivity for high-speed network upgrades and extended reach. Featuring an open SFP+ slot, it converts 10GBASE-T (RJ-45) to 10G fiber and supports multi-mode or single-mode transceivers (e.g., 10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.

Versatile Mounting and Deployment

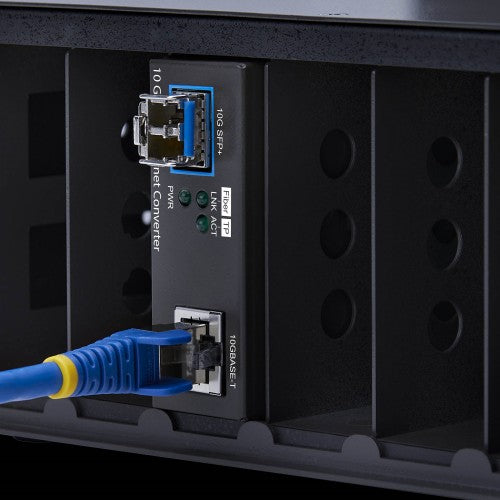

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.

Optimized for 10Gbps Networks

Built for 10G speeds, the converter supports 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across 10G links.

Efficient, Compact Design

With low 5.3W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.

Specifications

Network
Maximum data transfer rate	10000 Mbit/s
Flow control support	Yes
Auto-negotiation	Yes
Jumbo frames	16000
Converter input interface	10GBase-T
Networking standards	IEEE 802.3
Jumbo frames support	Yes
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Converter output interface	10GBase-X
Auto MDI/MDI-X	Yes
Fiber optic connector	SFP+
Performance
Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	50000 h
Flow control support	Yes
Auto-negotiation	Yes
Jumbo frames support	Yes
Plug and Play	Yes
Features
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Plug and Play	Yes
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP+
DC-in jack	Yes
Power
Input voltage	100 - 240 V
Input current	0.4 A
Output voltage	5 V
Output current	2 A
External power adapter	Yes
Weight & dimensions
Width	3.68" (93.5 mm)
Depth	2.76" (70 mm)
Height	1.02" (26 mm)
Weight	7.62 oz (216 g)
Package width	3.74" (95 mm)
Package depth	5.87" (149 mm)
Package height	3.62" (92 mm)
Package weight	14 oz (398 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content

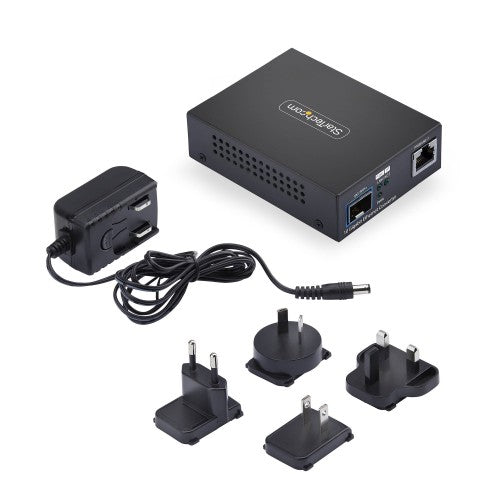

AC adapter included	Yes
User guide	Yes
Packaging data
Package width	3.74" (95 mm)
Package depth	5.87" (149 mm)
Package height	3.62" (92 mm)
Package weight	14 oz (398 g)
Design
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Management features
Plug and Play	Yes
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width	15.9" (405 mm)
Master (outer) case length	19.3" (490 mm)
Master (outer) case height	13" (330 mm)
Products per master (outer) case	40 pc(s)
