StarTech.com 160W Universal DC Power Adapter (24V/6.6A), 4ft(1.2m) 2-Wire Cord, 2/3-Pin Terminal Blocks, 100-240V AC/DC External Power Supply for Industrial USB Hubs, NA/UK/EU/ANZ (160W-POWER-ADAPTER)
Key Features
- UNIVERSAL POWER ADAPTER: 24V/6.6A (158.4W) DC output with attached 4ft (1.2m) DC cord; Auto-switching 100-240V AC input; Includes four regional 4ft (1.2m) AC power cables (NA: Type-A NEMA 1-15, UK: Type-G BS 1363, EU: CEE 7/7, ANZ: Type-I AS 3112)
- VERSATILE TERMINAL BLOCK COMPATIBILITY: The power adapter features bare-wire leads with both 2-and-3-conductor terminal block connectors included, for seamless integration with a wide range of equipment
- DEVICE COMPATIBILITY: This power supply supports a variety of devices including our Industrial USB Hubs, part numbers: HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB
- APPLICATIONS: Replace a lost/broken power adapter; Maintain a redundant backup power brick in case a mission-critical power source is interrupted; Add additional power to a compatible hub to enable BC 1.2 charging & powering higher power devices
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this External International Electrical Power Adapter is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
AC/DC Power Adapter for StarTech.com DC Powered Industrial Products

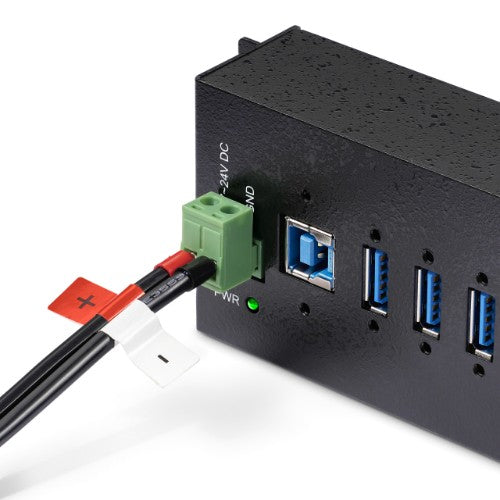

Power a StarTech.com Industrial USB Hub, or other device with a 2-or-3-wire terminal block DC input, using this 24V Universal Power Adapter.
High-Performance Universal Power Adapter

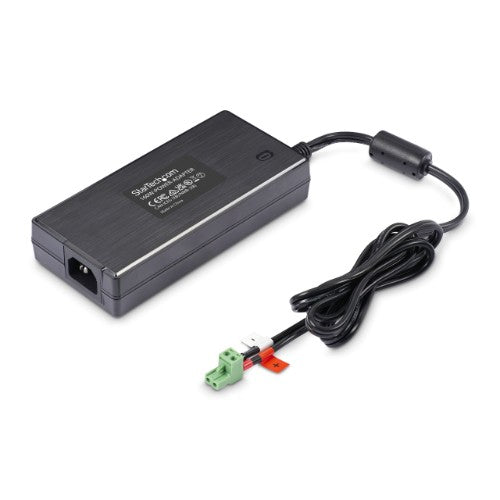

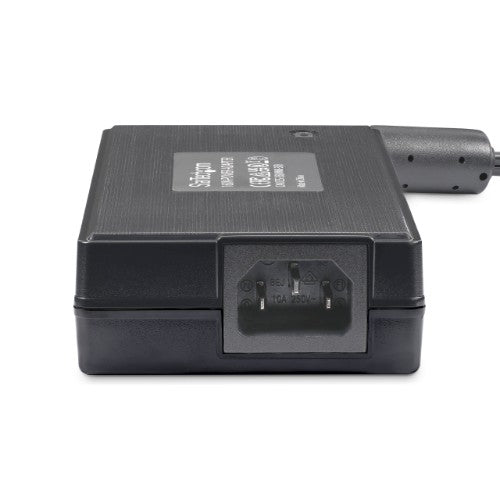

The Power Adapter features an auto-switching 100-240V AC input with a 24V/6.6A (158.4W) DC output and attached 4ft (1.2m) DC cord.
Four 4ft (1.2m) regional power cables are included, to ensure international support:
• North America - Type-A NEMA 1-15
• United Kingdom - Type-G BS 1363
• Europe - CEE 7/7
• Australia/New Zealand - Type-I AS 3112
Device Compatibility

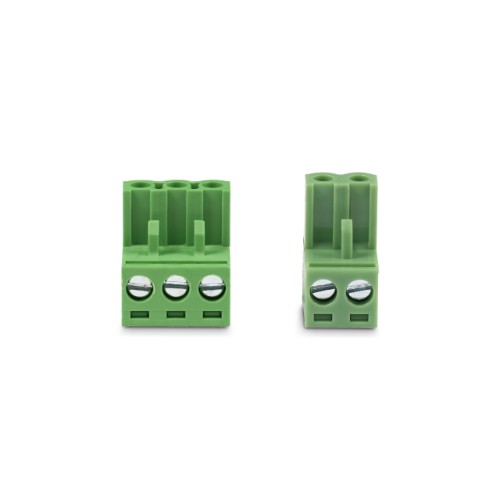

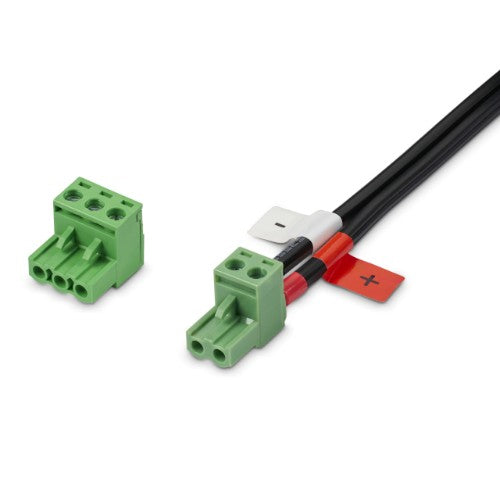

The Power Adapter features two bare-wire leads with both 2-conductor and 3-conductor terminal block connectors included, for seamless integration with a variety of devices. This power supply can be used as an accessory and primary power source for many StarTech.com Industrial USB Hubs, such as:
• 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
• 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
• 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
• 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
• 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)
This power adapter can also be used to replace a lost or broken power adapter, or can be kept as a redundant back-up power brick for mission critical applications for StarTech.com Industrial USB Hubs that include a power adapter, such as:
• 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
• 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
• 4-Port Industrial USB 5Gbps Hub (ST4300USBM)
The StarTech.com Advantage
Specifications
| Features |
|---|
| Input voltage |
100 - 240 V |
| Brand compatibility |
StarTech.com |
| Output power |
158.4 W |
| Input current |
3.5 A |
| Output voltage |
24 V |
| Output current |
6.6 A |
| Power supply type |
Indoor |
| Purpose |
Universal |
| Product colour |
Black |
| Housing material |
Plastic |
| Compatibility |
HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Output power |
158.4 W |
| Input current |
3.5 A |
| Output voltage |
24 V |
| Output current |
6.6 A |
| Performance |
|---|
| Brand compatibility |
StarTech.com |
| Power supply type |
Indoor |
| Purpose |
Universal |
| Compatibility |
HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB |
| Design |
|---|
| Cable length |
47.2" (1.2 m) |
| Product colour |
Black |
| Housing material |
Plastic |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 55 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Certificates |
|---|
| Compliance certificates |
PSE |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Weight |
10.3 oz (291 g) |
| Width |
2.09" (53 mm) |
| Depth |
4.53" (115 mm) |
| Height |
1.46" (37 mm) |
| Cable length |
47.2" (1.2 m) |
| Packaging data |
|---|
| Cables included |
AC |
| Package width |
6.3" (160 mm) |
| Package depth |
3.54" (90 mm) |
| Package height |
7.87" (200 mm) |
| Package weight |
12.3 oz (350 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
AC |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
PSE |
| Logistics data |
|---|
| Products per master (outer) case |
50 pc(s) |
| Master (outer) case width |
18.5" (470 mm) |
| Master (outer) case length |
12.6" (320 mm) |
| Master (outer) case height |
9.25" (235 mm) |
