StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)
Description
The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

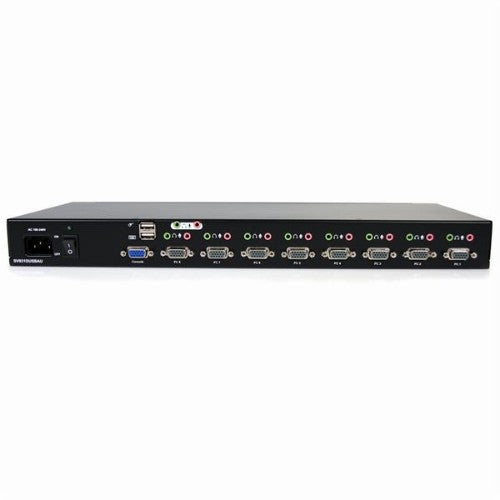

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
Specifications
| Ports & interfaces |
|---|
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| USB connector type |
USB Type-A |
| Number of microphone inputs |
8 |
| Mouse port type |
USB |
| Video port type |
VGA |
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
8 |
| DC-in jack |
Yes |
| Console USB ports quantity |
2 |
| Console ports |
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Performance |
|---|
| Plug and Play |
Yes |
| Maximum resolution |
1920 x 1440 pixels |
| Number of users |
1 user(s) |
| Maximum analog resolution |
1920 x 1440 pixels |
| Daisy chain |
Yes |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| LED indicators |
Yes |
| Certification |
CE, FCC, UL |
| Cascadable |
Yes |
| Rack capacity |
1U |
| Housing material |
Steel |
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Output voltage |
12 V |
| Input current |
1.8 A |
| Output current |
4 A |
| Power consumption (typical) |
48 W |
| Power plug type |
Type M |
| Input voltage |
110-240 V |
| Video |
|---|
| Maximum resolution |
1920 x 1440 pixels |
| Maximum analog resolution |
1920 x 1440 pixels |
| Technical details |
|---|
| Cascadable |
Yes |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
21.3" (540 mm) |
| Depth |
7.09" (180 mm) |
| Height |
1.77" (45 mm) |
| Weight |
5.73 lbs (2.6 kg) |
| Package width |
4.84" (123 mm) |
| Package depth |
23.3" (591 mm) |
| Package height |
10.4" (264 mm) |
| Package weight |
10.4 lbs (4.7 kg) |
| Packaging data |
|---|
| Package width |
4.84" (123 mm) |
| Package depth |
23.3" (591 mm) |
| Package height |
10.4" (264 mm) |
| Package weight |
10.4 lbs (4.7 kg) |

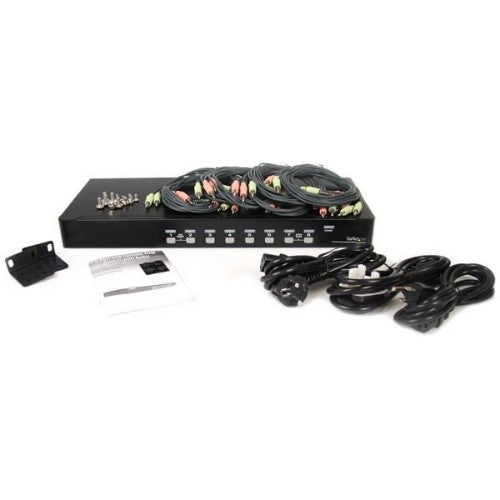

| Packaging content |
|---|
| Rubber feet |
Yes |
| Cables included |
AC |
| Manual |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, UL |
| Other features |
|---|
| IP control |
No |
| Audio support |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
