| Ports & interfaces |
|---|
| Internal |
Yes |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |

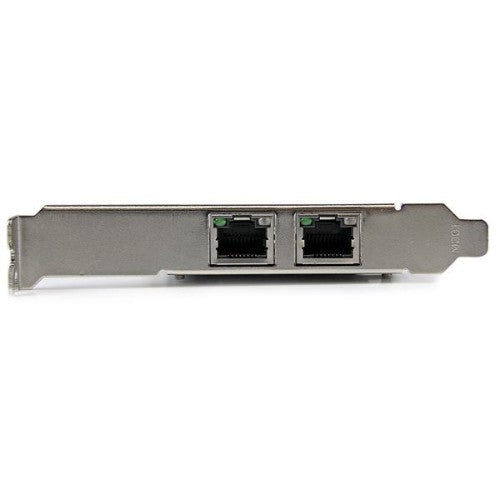

| Ethernet LAN (RJ-45) ports |
2 |
| PCI version |
2.1 |
| Bandwidth |
|---|
| Maximum data transfer rate |
2000 Mbit/s |
| Full duplex |
Yes |
| Network |
|---|
| Chipset |
Intel - I350-AM2 |
| Maximum data transfer rate |
2000 Mbit/s |
| Ethernet LAN |
Yes |
| Jumbo frames |
9000 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u |
| Wake-on-LAN ready |
Yes |
| Auto MDIX IEEE |
Yes |
| VLAN tagging |
Yes |
| LAN controller |
Intel® I350-AM2 |
| Jumbo frames support |
Yes |
| Full duplex |
Yes |
| Design |
|---|
| Internal |
Yes |
| Product colour |
Aluminum, Black |
| Chipset |
Intel - I350-AM2 |
| Certification |
CE, FCC, REACH |
| Mean time between failures (MTBF) |
432400 h |
| LED indicators |
Activity, Link |
| Component for |
Server |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Weight & dimensions |
|---|
| Width |
0.748" (19 mm) |
| Depth |
2.64" (67 mm) |
| Height |
4.76" (121 mm) |
| Weight |
2.82 oz (80 g) |
| Package width |
6.77" (172 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
1.14" (29 mm) |
| Package weight |
5.82 oz (165 g) |
| Packaging data |
|---|
| Low-profile bracket |
Yes |
| Drivers included |
Yes |
| Package width |
6.77" (172 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
1.14" (29 mm) |
| Package weight |
5.82 oz (165 g) |
| Manual |
Yes |
| Packaging content |
|---|
| Manual |
Yes |
| Low-profile bracket |
Yes |
| Drivers included |
Yes |
| Performance |
|---|
| Wake-on-LAN ready |
Yes |
| Auto MDIX IEEE |
Yes |
| Mean time between failures (MTBF) |
432400 h |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Other features |
|---|
| Chipset |
Intel - I350-AM2 |
| Manual |
Yes |
| Jumbo frames |
9000 |
| Power LED |
Yes |
| Link/Act LED |
Yes |
| Harmonized System (HS) code |
85176990 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
