QB24C-T small digital signage
Description

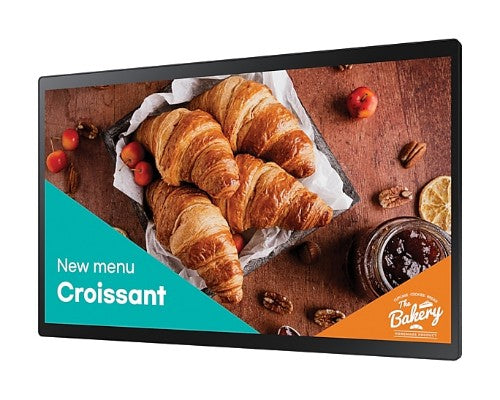

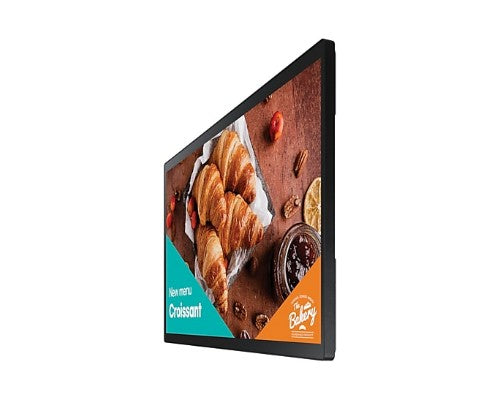

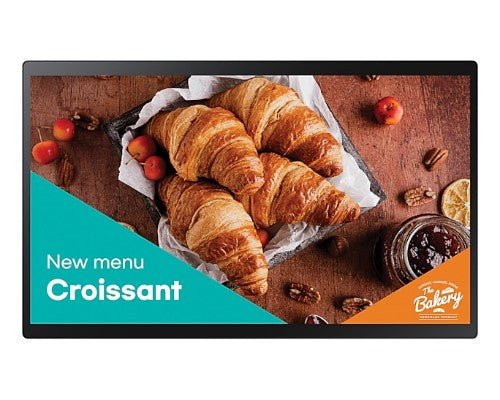

Expand commercial space with compact displayGet the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also providing reliable performance for any business use.
Fast, effective touch capabilities
10 point multi-touchThe QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.
Connect with convenience
Home UIQB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IRWith center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class BQB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXTSamsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
Specifications
| Display |
|---|
| Display diagonal |
23.8" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
250 cd/m² |
| HD type |
Full HD |
| Response time |
14 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0108 x 0.0108" (0.275 x 0.275 mm) |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Vertical scan range |
48 - 75 Hz |
| Touchscreen |
Yes |
| Panel type |
ADS |
| Horizontal scan range |
56 - 84.5 kHz |
| Display technology |
LED |
| Touchscreen technology |
Capacitive |
| Haze rate |
25% |
| RGB colour space |
NTSC |
| Multi-touch |
Yes |

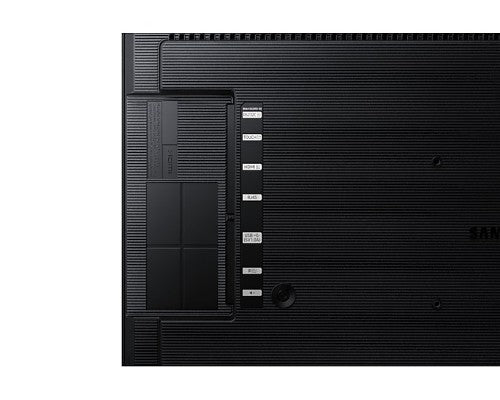

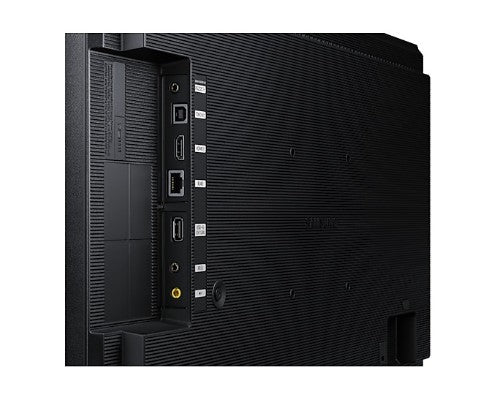

| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| DVI port |
No |
| Remote (IR) input |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| Wi-Fi |
Yes |
| USB ports quantity |
1 |
| Infrared data port |
Yes |
| HDMI input ports quantity |
1 |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Black |

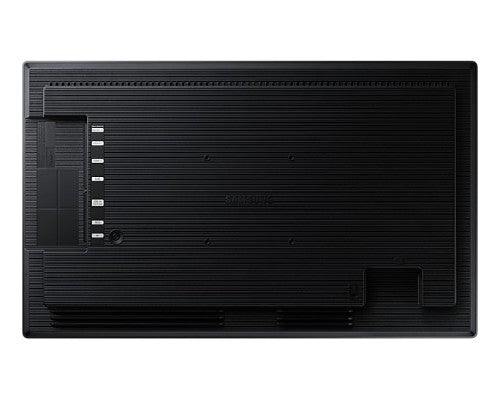

| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Placement supported |
Indoor |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Universal |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
38.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (sleep) |
0.5 W |
| Computer system |
|---|
| Operating system installed |
Tizen 7.0 |
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Display width |
21.6" (547.9 mm) |
| Display depth |
1.36" (34.6 mm) |
| Display height |
13.2" (334.4 mm) |
| Display weight |
8.82 lbs (4 kg) |
| Packaging data |
|---|
| Package width |
24.4" (620 mm) |
| Package depth |
4.8" (122 mm) |
| Package height |
16.5" (419 mm) |
| Package volume |
5200 cm³ |
| Cables included |
Power |
| Packaging content |
|---|
| Cables included |
Power |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Thin Client |
|---|
| Operating system installed |
Tizen 7.0 |
| Technical details |
|---|
| Panel type |
ADS |
| Sustainability certificates |
EPEAT Bronze |
| Compliance certificates |
CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoHS, VCCI |
| Other features |
|---|
| Wi-Fi |
Yes |
| Panel type |
ADS |
| Display technology |
LED |
