46” OHB Outdoor Display
Key Features
- High visibility
- Water and dust resistant
- Magic Protection Glass
Description
Deliver bright and brilliant messages, built for the outdoorsSamsung’s OH46B features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH46B is packed with robust hardware, helping to ensure longevity and flexibility.
Clear and vivid imagesThe OH46B is UL-verified for outdoor visibility with brightness levels over 3,500nits. Its 24/7 performance and polarisation technology eliminate display blindness from polarised lenses and delivers continuously crisp content with a built-in auto brightness sensor that adapts to external lighting.
Bright and vivid colours to support accurate communication and deliveryThe OH46B delivers colour accuracy and brightness, creating vivid content through incredible colour reproduction of all red, green and blue shades. With customers expecting crisp content being, the OH46B’s uncompromised picture quality is designed to capture customer attention.
Brilliant visibility with anti-reflection technologyMagic Glass blocks solar radiation which increased the life of the display in direct sun conditions and improves visibility by reducing external reflection. It also includes an anti-graffiti coating preventing graffiti paint from bonding to the screen surface.
Optimised protection in a variety of outdoor conditionsWith certified IP56-rated protection, OH46B delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimised operation in a variety of outdoor conditions for consistent performance.

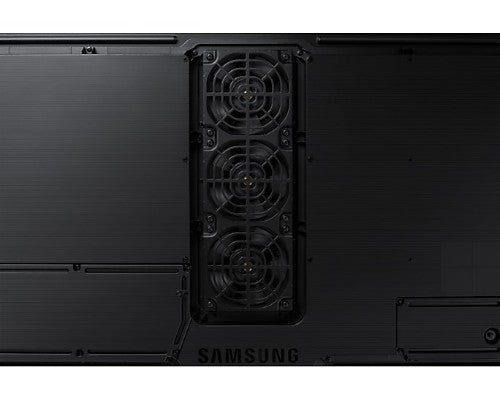

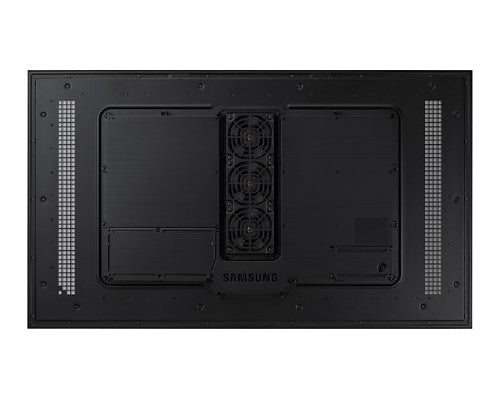

Limit humidity for optimal performance with newly added fansWith four newly added, hidden fans in the downside of the display, the OH46B reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans helps operation.
Robust durability for screen safetyFitted with tempered Magic Protection Glass, the Samsung OH46B provides durability that is IK10-rated, helping to provide safety and protection against external impact. This ensures the product is safe against unexpected damage, for better peace of mind.
Powerful performance with slim designA slim, all-in-one composition enables easy installation, and helps to support long-term performance through IP56 protection, anti-reflection technology, damage defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.
Smooth content playbackThe embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures smooth transitions and playback to deliver a better experience for both customers and store managers.
Powerful, protective securityThe OH46B uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and helps minimise successful security attacks.
Specifications
| Display |
|---|
| Display diagonal |
46" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
3500 cd/m² |
| HD type |
Full HD |
| Response time |
6 ms |
| Contrast ratio (typical) |
6000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0209 x 0.0209" (0.53 x 0.53 mm) |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Vertical scan range |
24 - 75 Hz |
| Panel type |
VA |
| Horizontal scan range |
30 - 136 kHz |
| Display technology |
LCD |
| RGB colour space |
NTSC |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| HDMI version |
2.1 |
| DVI port |
No |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| RS-232 interface |
Yes |
| USB ports quantity |
1 |
| HDMI input ports quantity |
2 |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
995 x 500 mm |
| Placement supported |
Outdoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.98" (2.49 cm) |
| Bezel width (side) |
0.98" (2.49 cm) |
| Bezel width (bottom) |
0.98" (2.49 cm) |
| Performance |
|---|
| Purpose |
Commercial |
| International Protection (IP) code |
IP56 |
| HDCP |
Yes |
| Power |
|---|
| Power consumption (typical) |
430 W |
| AC input voltage |
100 - 240 V |
| Power consumption (sleep) |
0.5 W |
| Computer system |
|---|
| Operating system installed |
Tizen 5.0 |
| Internal storage capacity |
8 GB |
| Weight & dimensions |
|---|
| Display width |
42.1" (1069 mm) |
| Display depth |
3.35" (85 mm) |
| Display height |
24.6" (623.6 mm) |
| Display weight |
79.4 lbs (36 kg) |
| Packaging data |
|---|
| Package width |
45.5" (1156 mm) |
| Package depth |
7.87" (200 mm) |
| Package height |
28.1" (713 mm) |
| Package weight |
89.3 lbs (40.5 kg) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 50 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Thin Client |
|---|
| Operating system installed |
Tizen 5.0 |
| Internal storage capacity |
8 GB |
| Technical details |
|---|
| Panel type |
VA |
| Other features |
|---|
| Panel type |
VA |
| Display technology |
LCD |
| Bezel width (top) |
0.98" (2.49 cm) |
| Bezel width (side) |
0.98" (2.49 cm) |
| Bezel width (bottom) |
0.98" (2.49 cm) |
