23.8", ADS, 1920 x 1080, 1000:1, HDMI 1.4, USB, Wi-Fi, Bluetooth, 100-240 V, 50/60 Hz, 547.9 x 334.4 x 31.8 mm, 3 kg
Key Features
- Compact design
- Home UI
- Center IR
Description

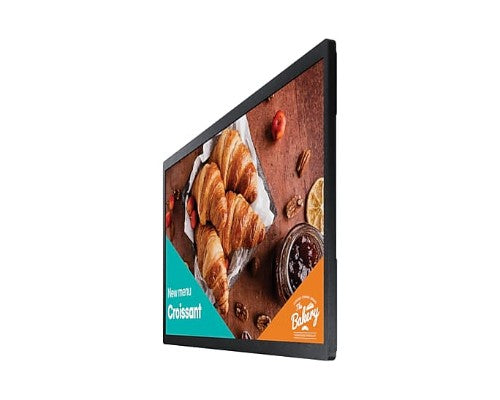

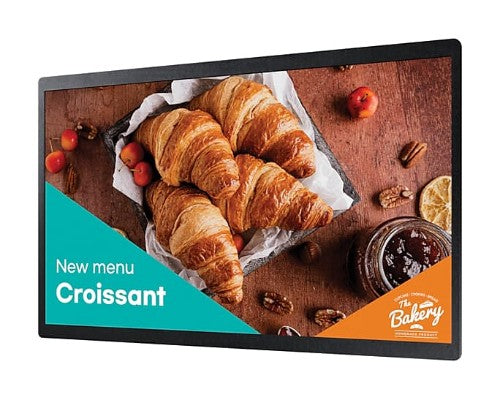

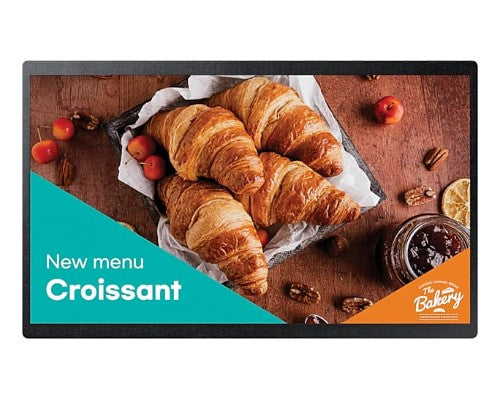

Expand commercial space with compact displayGet the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, while also allowing for a reliable performance for any business use.
Hold sizable opportunities in small spaces

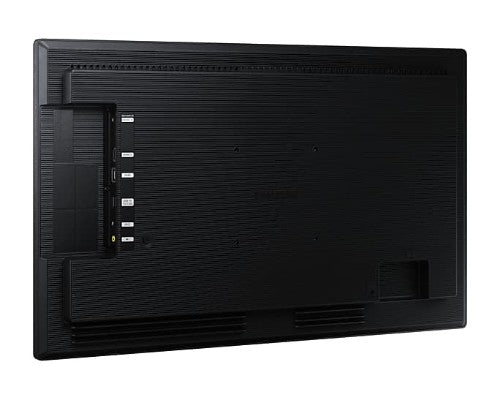

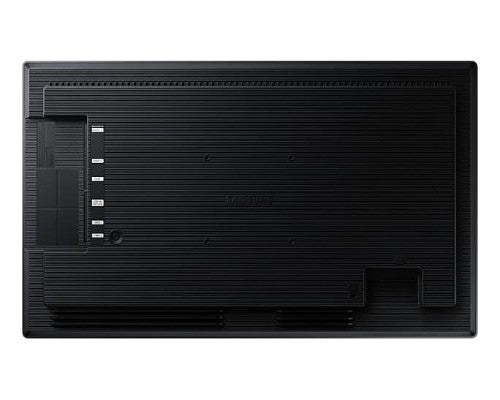

Compact DesignThe compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.
Connect with convenience
Home UIQB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IRWith center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class BQB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXTSamsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content.
Specifications
| Display |
|---|
| Display diagonal |
24" |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
250 cd/m² |
| HD type |
Full HD |
| Response time |
14 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0108 x 0.0108" (0.275 x 0.275 mm) |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Vertical scan range |
48 - 75 Hz |
| Touchscreen |
No |
| Panel type |
ADS |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
56 - 84.5 kHz |
| Display technology |
LCD |
| Haze rate |
25% |

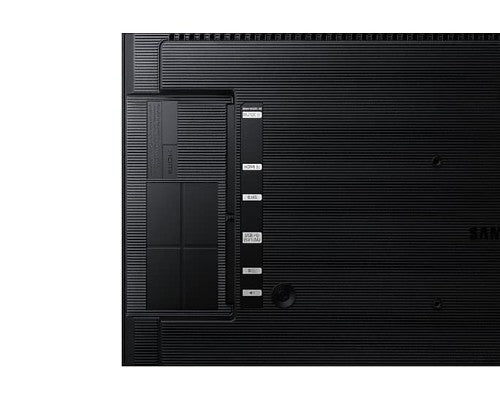

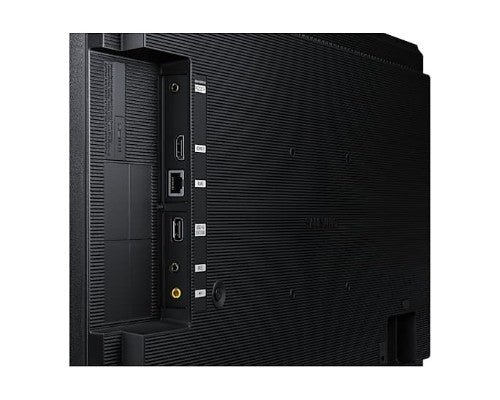

| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| Remote (IR) input |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| Wi-Fi |
Yes |
| USB ports quantity |
1 |
| PC Audio out |
Yes |
| Infrared data port |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
0.705" (1.79 cm) |
| Bezel width (side) |
0.37" (9.4 mm) |
| Bezel width (bottom) |
0.705" (1.79 cm) |
| Mounting type |
Desk/Wall |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Commercial |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
38.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (sleep) |
0.5 W |
| Computer system |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Weight & dimensions |
|---|
| Display width |
21.6" (547.9 mm) |
| Display depth |
1.25" (31.8 mm) |
| Display height |
13.2" (334.4 mm) |
| Display weight |
6.61 lbs (3 kg) |
| Packaging data |
|---|
| Package width |
24.4" (620 mm) |
| Package depth |
4.8" (122 mm) |
| Package height |
16.5" (419 mm) |
| Package weight |
9.04 lbs (4.1 kg) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Thin Client |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Technical details |
|---|
| Panel type |
ADS |
| Compliance certificates |
Electromagnetic Compatibility (EMC) |
| Other features |
|---|
| Wi-Fi |
Yes |
| Safety |
60950-1. 62368-1 |
| PC Audio out |
Yes |
| Panel type |
ADS |
| Display technology |
LCD |
| Bluetooth |
Yes |
| Bezel width (top) |
0.705" (1.79 cm) |
| Bezel width (side) |
0.37" (9.4 mm) |
| Bezel width (bottom) |
0.705" (1.79 cm) |
