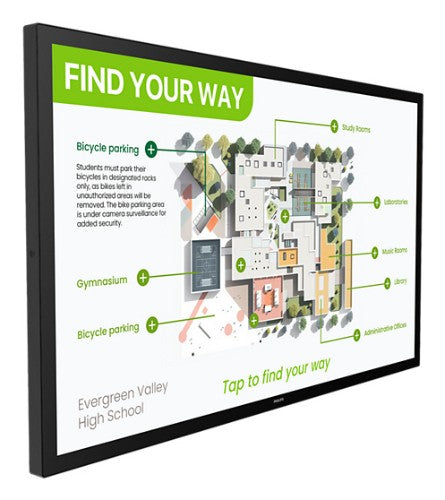

Signage Solutions Interactive 3000 Series
Description
Better connected – versatile multi-touch display
Delivering 24/7 operation with 450 nits of brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready and no need for an external media player.
Easy to clean, with anti-glare and anti-fingerprint coating.
A flush design with no bezel bringing an edge to edge experience augmented with anti-glare glass. Easy to clean, these interactive touch screens also feature anti-fingerprint coating.
Also supporting 30° tilt – ideal for kiosk installations.
Install in portrait or landscape orientations, with the option to tilt to 30° and size variants to suit a range of installation purposes. Whether on a shelf – ideal for the 24", angled or upright for Point of Sale, configurators, order points and kiosks – with the 32" and 43", or for wayfinding – think 55".
Better visibility even in bright daylight
With 450 cd/m2 brightness for better visibility under bright lights, the Philips Interactive 3000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more. FailOver is also included enabling your display to switch automatically between primary and secondary inputs should an outage occur.
No need for external media player. 4 GB RAM + 32 GB ROM.
The ultimate in intuitive user experience, with a professional Android 13 SoC built in for easy apps and solutions integrations, and no need for an external media player. Connections include Wi-Fi and Bluetooth, as well as a USB-C port.
Remote monitoring, maintenance and management.
Manage your display and control content remotely with PPDS Wave Controller – your evolutionary ecosystem designed to support time, energy and cost efficiencies. Discover software applications to support your interactive vision from our network of proven partners on the PPDS ProStore.
Supporting business sustainability and energy savings.
Reduced power consumption compared to previous models, supporting business sustainability and energy savings.
Better connecting customers with content.
Allows seamless connectivity, enabling easily access and engagement with content.
Activated out of the box for hassle-free peace of mind.
Reliable, worry-free protection for your displays, with a three-year warranty automatically in place from the start, eliminating any setup effort.
Specifications
| Display |
|---|
| Display diagonal |
54.5" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
450 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
5000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0124 x 0.0124" (0.315 x 0.315 mm) |
| Display number of colours |
1.07 billion colors |
| Touchscreen |
Yes |
| Panel type |
VA |
| Number of simultaneous touchpoints |
10 |
| Native aspect ratio |
16:9 |
| Display technology |
LCD |
| Anti-glare screen |
Yes |
| Number of displays |
1 |
| Touchscreen technology |
Projected capacitive system |
| Native refresh rate |
60 Hz |
| Glass thickness |
0.118" (3 mm) |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| Ethernet LAN data rates |
1000 Mbit/s |
| HDMI version |
2.0 |
| DVI port |
No |
| USB connector type |
Micro-USB, USB Type-A, USB Type-B, USB Type-C |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| Wi-Fi |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
5 |
| Infrared data port |
Yes |
| DisplayPorts quantity |
1 |
| DisplayPorts in |
1 |
| DisplayPort version |
1.3 |
| OPS module slot |
Yes |
| HDMI input ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
15 W |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Interactive flat panel |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
400 x 400 mm |
| Orientation |
Horizontal/Vertical |
| Bezel width (top) |
1.06" (2.7 cm) |
| Bezel width (side) |
1.06" (2.7 cm) |
| Bezel width (bottom) |
1.06" (2.7 cm) |
| Anti-glare screen |
Yes |
| Mounting type |
Wall |
| Fingerprint resistant |
Yes |
| Performance |
|---|
| Purpose |
Commercial |
| On Screen Display (OSD) languages |
Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
18 |
| HID support |
Yes |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
100 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
179 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
100 kWh |
| Computer system |
|---|
| Processor family |
ARM Cortex |
| Processor model |
A55 |
| Operating system installed |
Android |
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Internal memory |
4 GB |
| Processor cores |
4 |
| Internal storage capacity |
32 GB |
| Video formats supported |
H.263, H.264, H.265, MPEG1, MPEG2, MPEG4, VP8, VP9 |
| Audio formats supported |
AAC, HE-AAC, MPEG-1, MPEG-2 |
| Image formats supported |
BMP, JPEG, PNG, WEBP |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A55 |
| Operating system version |
13 |
| Weight & dimensions |
|---|
| Width (with stand) |
49.8" (1265.6 mm) |
| Height (with stand) |
29" (736.4 mm) |
| Depth (with stand) |
2.75" (69.8 mm) |
| Weight (with stand) |
55.1 lbs (25 kg) |
| Packaging data |
|---|
| Package weight |
71 lbs (32.2 kg) |
| Remote control included |
Yes |
| Cables included |
AC, RS-232, USB Type-A to USB Type-B |
| Batteries included |
Yes |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, RS-232, USB Type-A to USB Type-B |
| Batteries included |
Yes |
| Wi-Fi module included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Wi-Fi |
Yes |
| Thin Client |
|---|
| Processor family |
ARM Cortex |
| Processor model |
A55 |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Video formats supported |
H.263, H.264, H.265, MPEG1, MPEG2, MPEG4, VP8, VP9 |
| Audio formats supported |
AAC, HE-AAC, MPEG-1, MPEG-2 |
| Image formats supported |
BMP, JPEG, PNG, WEBP |
| Features |
|---|
| Wall mountable |
Yes |
| Technical details |
|---|
| USB connector type |
Micro-USB, USB Type-A, USB Type-B, USB Type-C |
| Panel type |
VA |
| Number of simultaneous touchpoints |
10 |
| DisplayPorts in |
1 |
| DisplayPort version |
1.3 |
| Weight (with stand) |
55.1 lbs (25 kg) |
| HID support |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Warranty period |
3 year(s) |
| Compliance certificates |
BSMI, CB, CE, ETL, Federal Communications Commission (FCC), PSB, RoHS |
| Other features |
|---|
| USB connector type |
Micro-USB, USB Type-A, USB Type-B, USB Type-C |
| Wi-Fi |
Yes |
| Width (with stand) |
49.8" (1265.6 mm) |
| Power consumption (max) |
179 W |
| Panel type |
VA |
| Number of simultaneous touchpoints |
10 |
| Height (with stand) |
29" (736.4 mm) |
| DisplayPorts in |
1 |
| DisplayPort version |
1.3 |
| Display technology |
LCD |
| Depth (with stand) |
2.75" (69.8 mm) |
| Bezel width (top) |
1.06" (2.7 cm) |
| Bezel width (side) |
1.06" (2.7 cm) |
| Bezel width (bottom) |
1.06" (2.7 cm) |
| Weight (with stand) |
55.1 lbs (25 kg) |
| HID support |
Yes |
| Energy efficiency scale |
A to G |
| OPS module slot |
Yes |
