DLP, 4000 LM, 1920x1080, 1080p Full HD, 0.25:1, VGA, HDMI, RS232, Full 3D, LAN, 32dB, Black
Key Features
- 20,000 hours maintenance-free laser light source at full brightness
- In-built HDBaseT receiver, integrated warping and edge blending processor and four corner correction
- 4000 lumens 1080p ultra short throw projector projects 100" image from just a metre away
- Versatile installation - Portrait and downward projection
Description
Superb for signageThe ZH420UST is powered by a long-lasting, low maintenance DuraCore laser light source. The lamp-less design vastly reduces running costs for a low total cost of ownership.
Weighing only 5.5kg, this projector can be mounted just centimetres away from a wall or surface and can project an image size of over 100 inches (254cm).
Supporting 24/7 operation and versatile orientation, the ZH420UST is a flexible, powerful and bright ultra short throw projector which makes for a superb signage solution where space or accessibility can be limited, such as shop windows, museums or retail displays.
Advanced features of this model include integrated HDBaseT receiver, and warping and blending engine (multi-output graphics card supporting overlap adjustment is required).
DuraCoreIndustry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
IP5X Dust resistant optical engineIndependently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Ultra Short ThrowWith an ultra-short throw lens, you can project an impressive image greater than 100” from less than a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease; perfect for interactive applications.
HDBaseTUncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 metres/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
HDBaseT guaranteed compatibilityThis model has guaranteed compatibility with the Optoma 4K100TX HDBaseT transmitter (available separately).
The 4K100TX integrates seamlessly with any HDMI enabled source device and delivers uncompressed UHD (70m) or Full HD (100m) video and audio via one CAT cable (CAT6A recommended).
Thanks to its HDMI loop out which allows cascading and connection to an additional transmitter or display, content can be viewed on multiple display devices without the need for HDMI splitters or other distribution equipment.
Integrated warping and edge blending processorIntegrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
Four-corner adjustmentIndividually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
Amazing colourOptoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
Colour Management System (CMS)Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings for optimal precision.
Picture by picture picture-in-pictureSignals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.
True AV muteTrue AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Portrait projectionIdeal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Full 3DOptoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Wired remoteThe wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
ControlFeaturing a wide range of options you can control and monitor the projector remotely.
PJLinkPJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
Integrated speakerA powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.
Specifications
| Projector |
|---|
| Projector brightness |
4000 ANSI lumens |
| Projection technology |
DLP |
| Projector native resolution |
1080p (1920x1080) |
| Screen size compatibility |
87 - 102" |
| Native aspect ratio |
16:10 |
| Supported aspect ratios |
4:3, 16:10, 16:9 |
| Projection distance |
18.1 - 21.7" (0.46 - 0.55 m) |
| Projection distance (wide) |
18.1 - 21.7" (0.46 - 0.55 m) |
| Contrast ratio (typical) |
100000:1 |
| Uniformity |
85% |
| Keystone correction, vertical |
-30 - 30° |
| Keystone correction, horizontal |
-30 - 30° |
| Digital gamma correction |
Yes |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Fixed focal length |
0.146" (3.72 mm) |
| Throw ratio |
0.25:1 |
| Offset |
120% |
| Zoom type |
Fixed |
| Video |
|---|
| Analog signal format system |
NTSC, NTSC 3.58, NTSC 4.43, NTSC M, PAL, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD |
Yes |
| 3D |
Yes |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Supported 3D formats |
Frame packing, Side by side, Top and bottom |
| Adjustable colour temperature |
Yes |

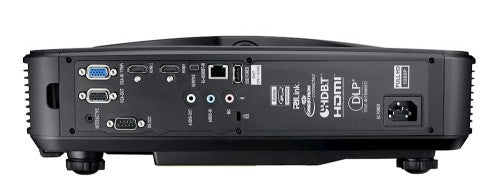

| Ports & interfaces |
|---|
| HDBaseT port |
Yes |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| HDMI connector type |
Full-size |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Serial interface type |
RS-232 |
| DVI port |
No |
| AC (power) in |
Yes |
| Mini-USB 2.0 ports quantity |
1 |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
|---|
| Card reader integrated |
No |
| Features |
|---|
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| Air filter |
Yes |
| 2D/3D frequency image |
50 - 60 Hz |
| Noise level |
32 dB |
| Number of OSD languages |
1 |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
10 W |
| Design |
|---|
| Product colour |
Black |
| Product type |
Ultra short throw projector |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement |
Desktop |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power source |
AC |
| Power consumption (typical) |
225 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
335 W |
| AC input voltage |
90 - 264 V |
| AC input frequency |
50 - 60 Hz |
| Supplier features |
|---|
| Battery type |
AAA |
| Harmonized System (HS) code |
85286200 |
| Weight & dimensions |
|---|
| Width |
15.2" (387 mm) |
| Depth |
15.9" (403 mm) |
| Height |
5.83" (148 mm) |
| Weight |
12.1 lbs (5.5 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Remote control type |
IR |
| Battery type |
AAA |
| Quick start guide |
Yes |
| Manual |
Yes |
| Cables included |
AC, HDMI |
| Batteries included |
Yes |
| Number of batteries supported |
2 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85286200 |
| Other features |
|---|
| RS-232 ports |
1 |
| Maximum digital resolution |
1920 x 1080 pixels |
| Maximum analog resolution |
1920 x 1080 pixels |
