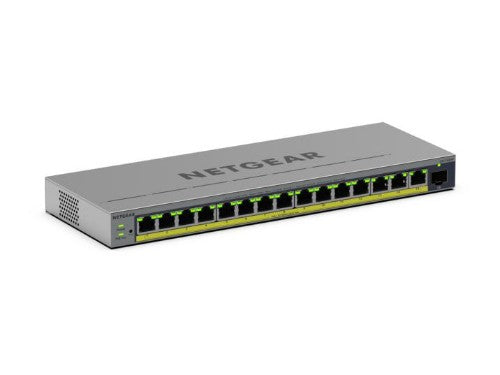

16-Port, 1 Gbit/s, 231 W, 8K, 4.1 MB, 0-40°C, Grey, 286 x 101 x 27 mm, 0.83 kg
Description
EASY POE CONTROLSManage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET AND FIBER15 ports provide Gigabit Ethernet connectivity to your devices and 1 SFP fiber port for long distance connections
VLANSPort-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGNSilent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONSPlace your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENTEnergy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specifications
| Management features |
|---|
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
1 |
| SFP module slots quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3az |
| Number of VLANs |
64 |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Virtual LAN features |
Port-based VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
1 Gbit/s |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4.1 MB |
| Number of VLANs |
64 |
| Number of multicast groups filtered |
128 |
| Security |
|---|
| IGMP snooping |
Yes |
| Queue scheduling algorithms |
Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Multicast features |
|---|
| Number of multicast groups filtered |
128 |
| Multicast support |
Yes |
| Design |
|---|
| Product colour |
Gray |
| Housing material |
Metal |
| Performance |
|---|
| Mean time between failures (MTBF) |
5704358 h |
| Packet buffer memory |
4.1 MB |
| Power |
|---|
| Power consumption (max) |
250.6 W |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
15 |
| Total Power over Ethernet (PoE) budget |
231 W |
| Other features |
|---|
| Warranty period |
5 year(s) |
| Ethernet LAN data rates |
1000 Mbit/s |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Virtual LAN features |
|---|
| Number of VLANs |
64 |
| VLAN support |
Yes |
| Virtual LAN features |
Port-based VLAN |
| Weight & dimensions |
|---|
| Width |
11.3" (286 mm) |
| Depth |
3.98" (101 mm) |
| Height |
1.06" (27 mm) |
| Weight |
29.3 oz (830 g) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Manual |
Yes |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
| Certificates |
|---|
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Manual |
Yes |
